Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)

  • Shanghai, China

  • 20 Sets/Month

  • T/T, Western Union

  • ZL-300

  • Customized

  • New

  • 1 Year

  • 300L

  • SS304 Contact with Product

  • 100-300kg/H

  • Pharmaceutical, Food,Medical

  • 1.5-3mm ( or According

  • 60rpm

  • 7.5kw

  • 255kg

  • 1150X590X1180mm

  • Export Wooden Case

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP Standard

  • Made in China

  • 8438909000

  • Preparation Machinery

  • Granules

  • High Precision

  • CE, GMP

  • 380V

  • Computerized

Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)

Main application:


This machine is used to in such trades as pharmacy, food, medicine taken with water, chemical industry and solid beverage, to mix the supplies well and to make necessary particle. It also can crush abolished slice and dry and crowd it into a particle. It is very suitable for material of higher viscidity. The machine that contact with the material are all made of stainless steel, aesthetic in appearance, structure reasonable, granulation shaping rate high, beautiful particling, produce material automatically, preventing from artificial to appear particle that material lead to the fact damaged, suitable to the continuous productive process. It crushes and keep through machinery material leaf is it rotates in opposite directions to make. Keep material leaf become certain angle makes supplies is it crush to press downwards to make to rotate, crush big horn spiral leaf, push the hole form sifting of the supplies and become particles.


Working Principle:

ZL Series Rotating Granulator Machine-Wet Powder Rotary Granulator is high in the grain making and shaping rate, perfect in the grain exterior appearance. Its automatic material discharge will avoid the grain damage caused by manual material discharge. The machine is suitable for the flow production. The machine's structure is reasonable and its external appearance is beautiful.

The ZL Series Rotating Granulator Machine makes the materials mixed into the desired grains. It is especially suitable for the materials that have high viscosity.

ZL Series Rotating Granulator Machine is developed latest by our company. It can discharge the materials auto, and it is reach with the requirements of GMP, it is one of the best granulator

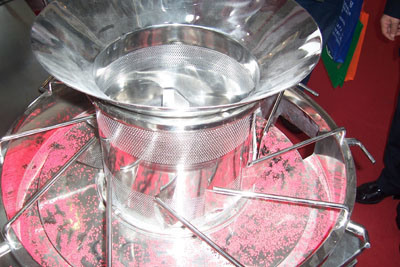

The motor can change speed and direction by the gear case, which make the Grinding Blade and materials pusher do opposite rotation., the materials pusher pin the materials by the inclined plane, and the Grinding Blade push the material to the screen barrel, then the materials formed into granules.

Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)

Main technical data:
Model ZL250 ZL300
Cutting knife capacity 250(L) 300(L)
Max size for pellet 2-2.2(mm)be custom make 1.8-2.5(mm)be custom make
Overall size(mm) 700*540*1300 880*640*1300
Motor power(kw) 3 3
Weight (kg) 350 400
Capacity (kg/h) 100-200 140-400

Sample:

Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)

Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
Zl-300 Rotary Pharmaceutical Granulator Machine (with GMP standards)
