ZL 300
BSIT
Shanghai, China
10 Sets/Month
T/T, Western Union
1 set
wooden case packing

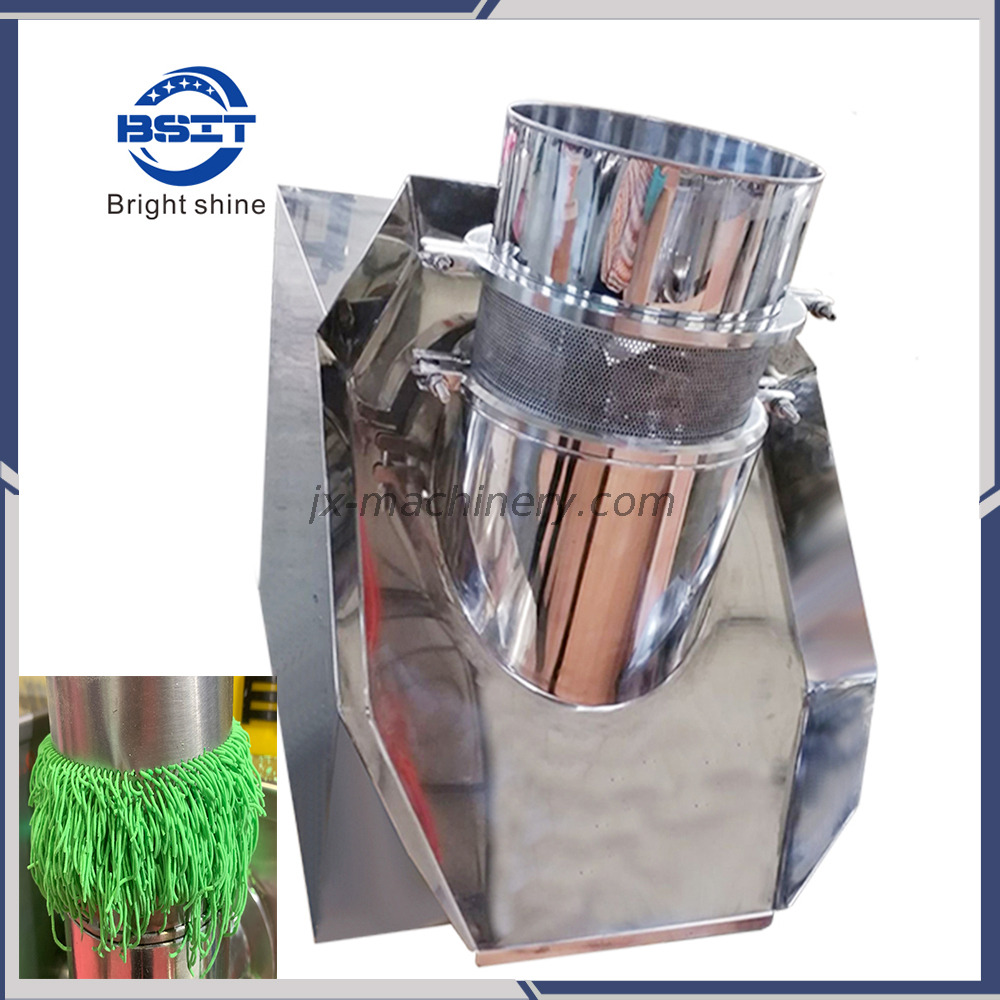

ZL-300 Rotary Fast Pendular Oscillating Granulator Machine with Pharmaceutical Equipment
Main application:
This machine is used to in such trades as pharmacy, food, medicine taken with water, chemical industry and solid beverage, to mix the supplies well and to make necessary particle. It also can crush abolished slice and dry and crowd it into a particle. It is very suitable for material of higher viscidity. The machine that contact with the material are all made of stainless steel, aesthetic in appearance, structure reasonable, granulation shaping rate high, beautiful particling, produce material automatically, preventing from artificial to appear particle that material lead to the fact damaged, suitable to the continuous productive process. It crushes and keep through machinery material leaf is it rotates in opposite directions to make. Keep material leaf become certain angle makes supplies is it crush to press downwards to make to rotate, crush big horn spiral leaf, push the hole form sifting of the supplies and become particles.
Technical data:
Diameter for knife 300mm
Production capacity: 100-300kg/h
Sieve of granule: 1.5-3mm ( or according to customer request)
Knife speed: 60rpm
Motor of power: 7.5kw
Weight:255kg
Size: 1150X590x1180mm
