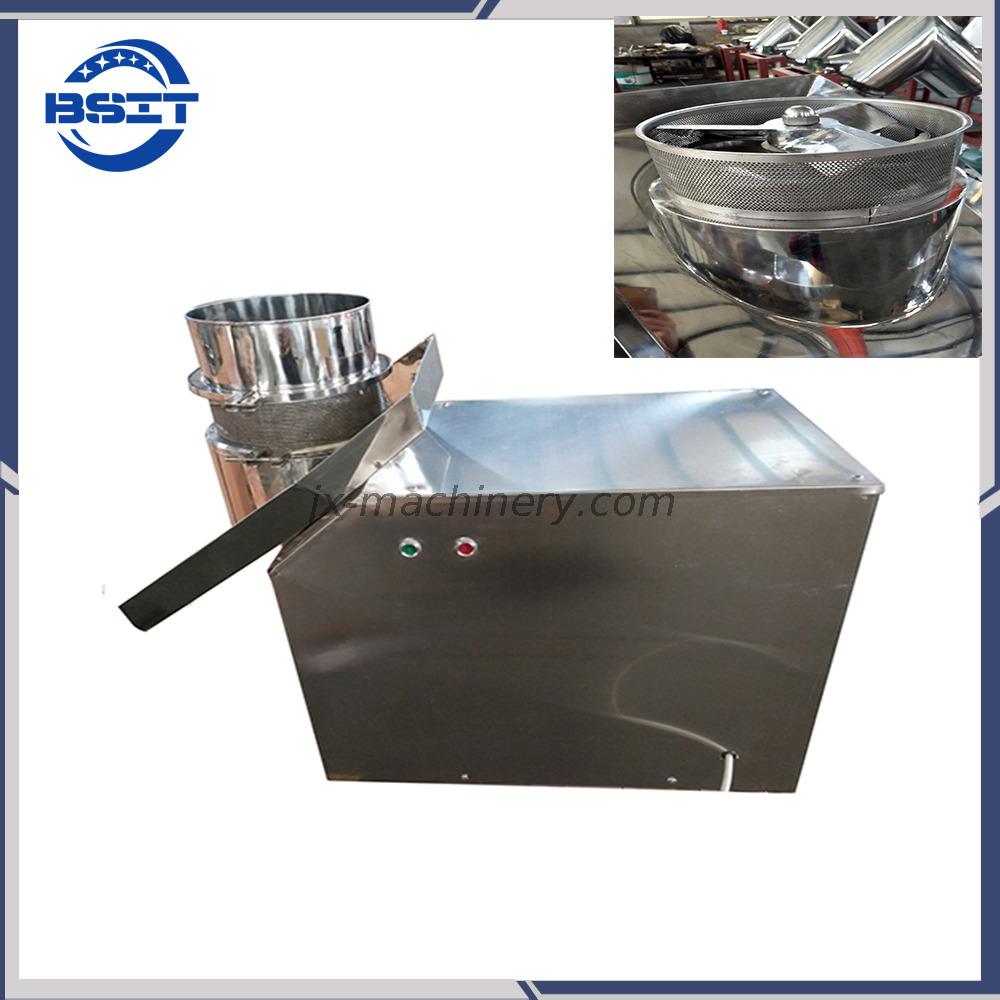

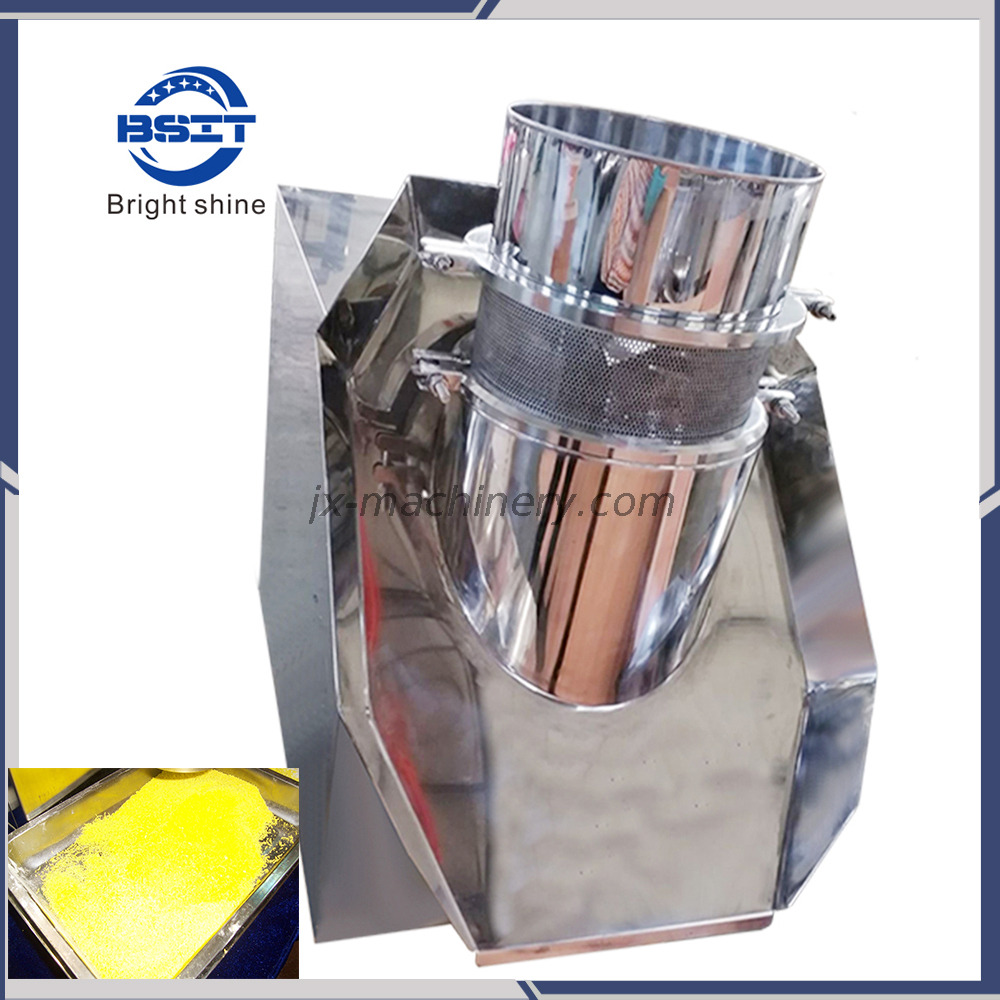

ZL factory recommend Rotary Foodstuff Organic Fertilizer Granulation Machine
Application:
ZL Series Rotating Granulator Machine is developed latest by our company. It can discharge the materials auto, and it is reach with the requirements of GMP, it is one of the best granulator
Working Principle:
ZL Series Rotating Granulator Machine-Wet Powder Rotary Granulator is high in the grain making and shaping rate, perfect in the grain exterior appearance. Its automatic material discharge will avoid the grain damage caused by manual material discharge. The machine is suitable for the flow production. The machine's structure is reasonable and its external appearance is beautiful.
The ZL Series Rotating Granulator Machine makes the materials mixed into the desired grains. It is especially suitable for the materials that have high viscosity.
The motor can change speed and direction by the gear case, which make the Grinding Blade and materials pusher do opposite rotation., the materials pusher pin the materials by the inclined plane, and the Grinding Blade push the material to the screen barrel, then the materials formed into granules.
Feature:
1.This machine is widely used in the pharmaceutical, food industry, chemical industry, light industry and so on, it is used in granulating the wet powder into granules,
2. The Seasoning Revolving Granulating Machine also connect the drying machine to get dried instant granues. Machine materials of ZL Series Rotating Granulator Machine (Seasoning Revolving Granulating Machine): AISISUS304 , AISISUS316L, and other material .
3. The feeding system for this machine can be by manual or screw feeder .
4.Change the different bore of screen barrel, then can get different size of granules.
5.Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.
6. Low noise and good seal
7. Smooth running, reliable performance, easy operation.
8. Small cubage, easy to install, convenient to operate and maintain.
Main technical data:
| Model | ZL250 | ZL300 |
| Cutting knife capacity | 250(L) | 300(L) |
| Max size for pellet | 2-2.2(mm)be custom make | 1.8-2.5(mm)be custom make |
| Overall size(mm) | 700*540*1300 | 880*640*1300 |
| Motor power(kw) | 3 | 3 |
| Weight (kg) | 350 | 400 |
| Capacity (kg/h) | 100-200 | 140-400 |
