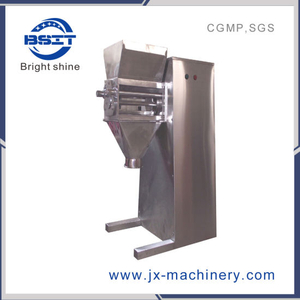

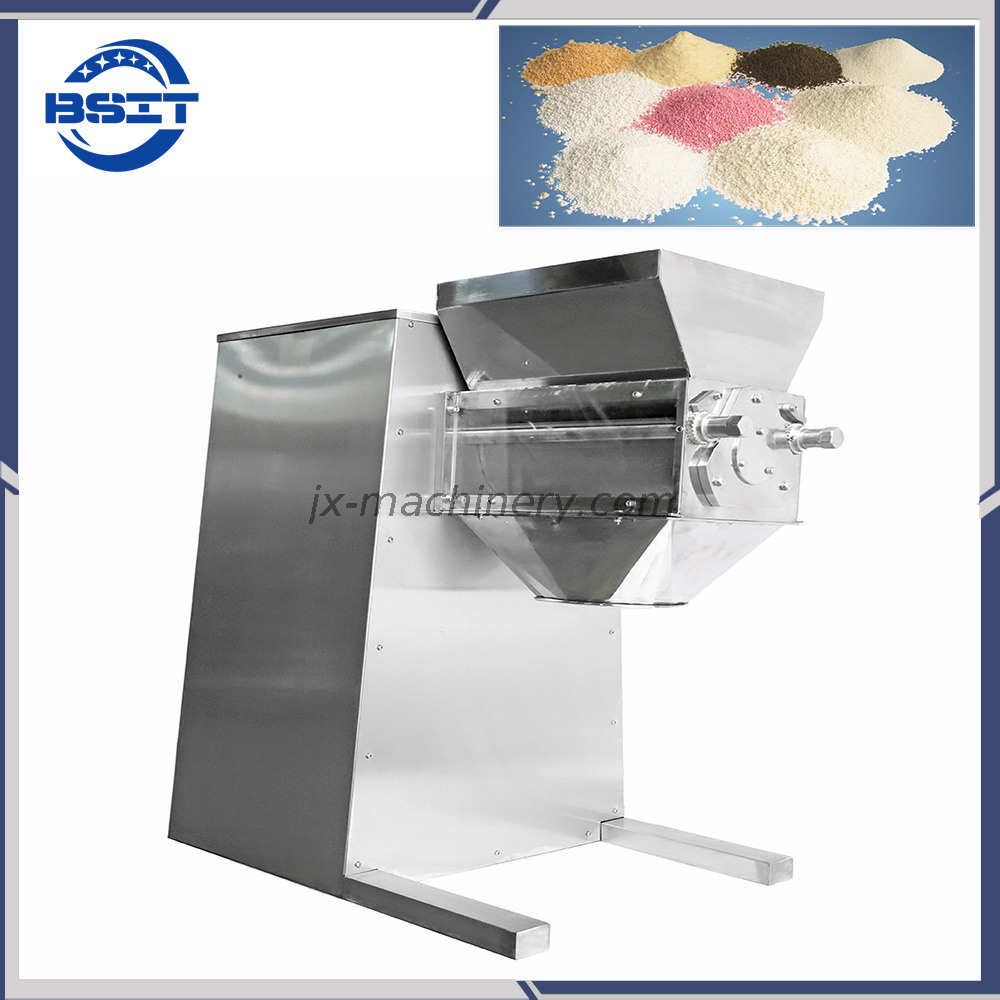

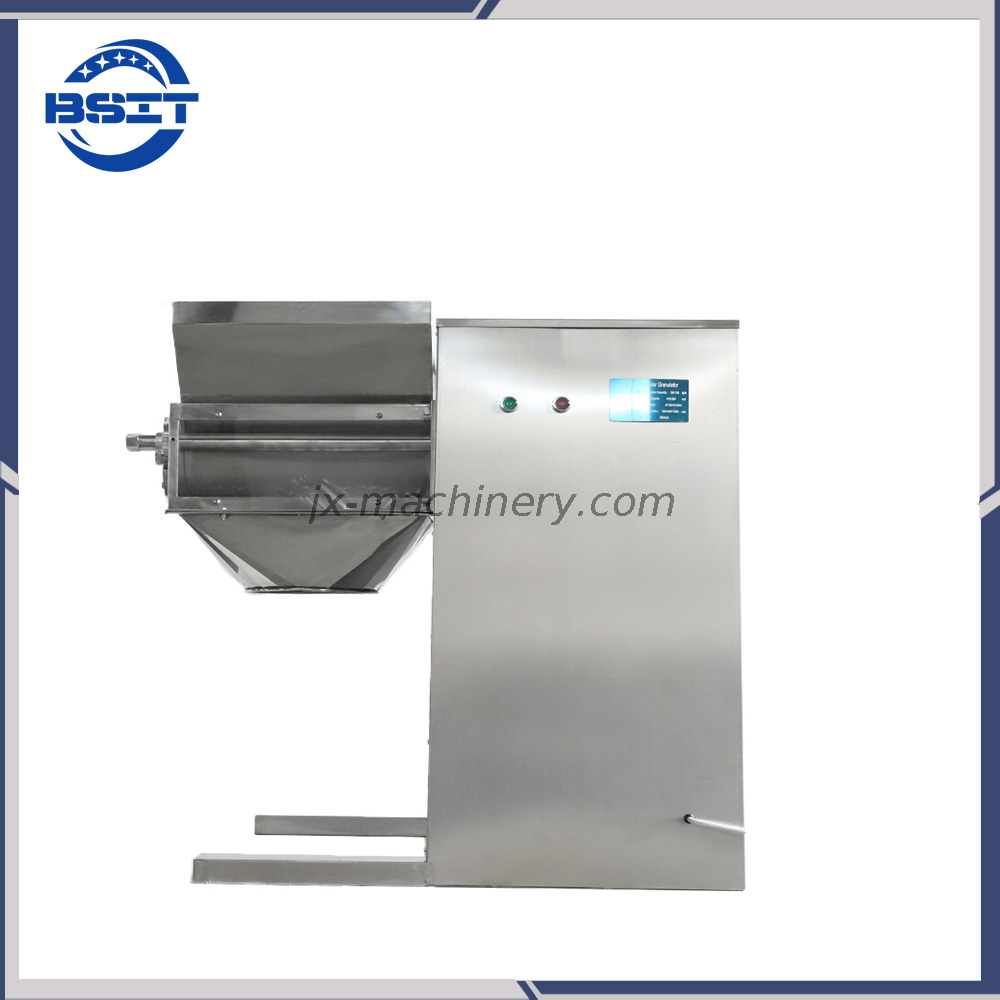

YK160 SS316 china manufacture Swing Type Granulator Machine for Powder

Availability:
  • YK
  • BSIT
  • Shanghai, China
  • 20 Sets/Month
  • T/T, Western Union, Paypal, Money Gram
  • 1 set
  • wooden case packing

                        YK160 SS316 china manufacture Swing Type Granulator Machine for Powder


Main introduce:

The machine is special equipment. Under the action of barrel through clockwise and counterclockwise rotation, the machine can make mixture of damp powder pass through forcibly sieve to become granule The machine is mainly suitable for granulating granule with different specification in pharmaceutical industry, chemical industry, foodstuff industry etc. After dried by baking, press the granule to all kinds of shaped product.

Features:


1) The machine design: The material of extrude granulator is stainless steel SUS304.
2) Output 200-300 kg per hour
2) The machine can move
3) With cap on the container
4) Safety screen
5) Gearing inside the machine should be full closed
7) Sieve 1, 5 mm 1, 0mm, 1, 8mm (stainless steel)
8) discharge sleeve (to connect bin and discharge hole)
9) gearbox should closed

YK60 granulator (7)YK60 granulator (4)YK60 granulator (1)YK60 granulator (2)YK60 granulator (8)IMG_20180830_135419(1)YK60 granulator (5)Technical parameters:


Model YK100 YK160
Capacity (kg/batch) 30-200 200-300
Rotating speed of platen (rpm) 55 65
Power ( kw ) 1.1 2.2
angle of sway (& deg; ) 360 . 360
Dia of platen (  MM ) 100 160
weight(kg) 180 350
Overall dimensions (mm) 700 × 400 × 1050 1000X800X1300



Swing Type Granulator Machine for Powder (YK160)
Swing Type Granulator Machine for Powder (YK160)
Swing Type Granulator Machine for Powder (YK160)
Swing Type Granulator Machine for Powder (YK160)
Swing Type Granulator Machine for Powder (YK160)
