Tunnel Sterilization Oven Machine

  • Shanghai, China

  • 50 Sets/Year

  • T/T, Western Union, Paypal, Money Gram

  • SMO

  • 300-500 Degree

  • 200-300PCS/Min for 10ml Pencilin Bottle

  • Air Flow Drier

  • Bulk

  • Contra-Flow

  • Rotary Atomization

  • Air-Flowing Type

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP Standard

  • Made in China

  • 8422400000

  • Combined

  • Convective

  • Inactive Gas

  • Vacuum Dryer

  • Continuous

  • Antibiotic Bottle/Ampoule/Infusion Bottle

Tunnel Sterilization Oven Machine

Process requirement:
1)Rate working temperature: room temperature-180ºC , design temperature-300ºC
2)Design double door, interlock door, installed through the wall.

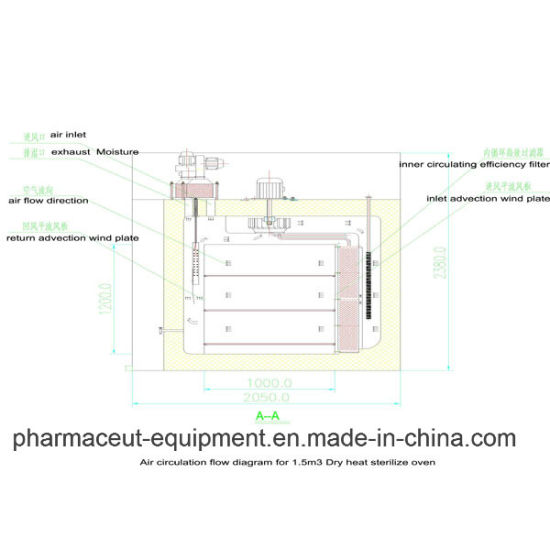

3)Wind flow style: Horizontal laminar flow
4)Two-door interlock interlocks feed C grade IS07, discharge B grade IS05 Unidirectional laminar flow (A grade)
5)Public system support: Voltage: 220V±10% 380V±10% 50Hz
Power: 3 phase 5 wires AC
Cooling water: Soft water
6)Cooling way: air cooling and water cooling
7)Equipped with PLC, HIM touch screen, recorder, Differential Pressure Gauge, Automatic Moisture valve, has heating, sterilize, cooling, exhaust humidity, alarm etc function.
8)Alarm: cycle fun fault, temperature fault, different pressure fault.
9)Print: printer can print the one point temperature, and one point pressure record, PH value that one point temperature control in sterile process. Recorder print fine point temperature and studio pressure curveGMP certification, PLC control, sterilizing thoroughly, easy operation, used widely, high-speed,


Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine

Detail description:

Applied to dry and sterilizing oven is applied to dry and sterilize for antibiotic bottles, ampoules and infusion bottles.
1. Hot-air circulating heating mode features high temperature evenness degree and low energy consumption.
2. Reliable safety installations.
3. Water cooling system is optional; It can decrease fresh air supply from the washing room and reduce the risk from the wind differential pressure imbalance, good cooling effect.
4. Wind differential pressure auto-balance system is optional, it can make the air flow from heating section not move and steady, it can avoid serize trouble, such as the temperature getting increasing in filling room and washing room.

Technical data:
power supply 380V 50HZ
gross power 53KW (about 40kw for proper usage)
the temperature adjustable range 300ºC-500ºC
conveyer belt width 600mm
purifying stage of laminar flow 100stage
cooling mode 100stage vertical laminal flow cooling
air speed control frequency conversion mode
weight approximate 3500kg
noise of single unit ≤70dB
overall size 4400x1650x2400mm
productive capacity 10ml pencilin vial ; 200-300pc/min
Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine

Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine
Tunnel Sterilization Oven Machine
