CT-C
BSIT
Shanghai, China
20 Sets/Month
T/T, Money Gram
1 set
wooden case packing

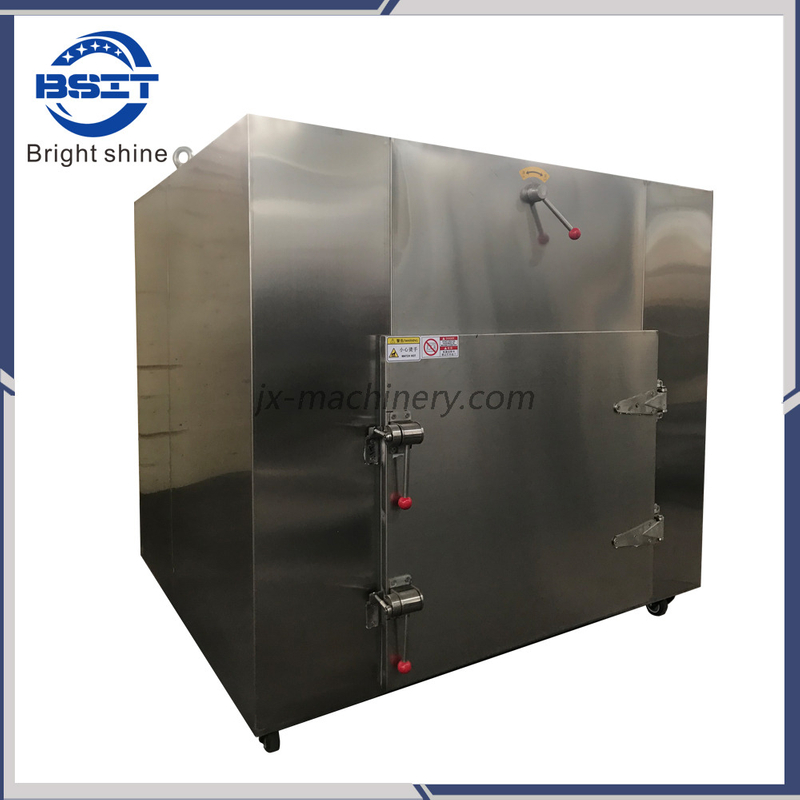

Pharmaceutical machine Hot Air Circulation Drying Oven with CE
Application:
It is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. The raw materials can be medicine of raw materials, Chinese traditional medicine, tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
Main technical parameters:
1). The hot source can be steam, electricity, far infrared, or steam + electricity.
2). Temperature of operation: 50~140.
3). 50~350 for electricity or far infrared.
4). There are automatic and computer control systems for customer selection.
5). The normal pressure of steam will be 0.02~0.8Mpa.
6). The size of drying tray: 460X640X45.
Technical Parameters:
| Parameter Type | Dry amount kg/times | Power(kw) | Consumption of steam (kg/h) | Amount of tray | Overall dimensions (mm) | Amount of trolley | Weight(kg) |
| CT-I | 100 | 1.1 | 20 | 48 | 2430X1200X2375 | 2 | 1200 |
| CT-II | 200 | 1.1 | 40 | 96 | 2430X2200X2433 | 4 | 1500 |
| CT-III | 300 | 2.2 | 60 | 144 | 3430X2200X2620 | 6 | 2000 |
| CT-IV | 400 | 2.2 | 80 | 192 | 4380X2200X2620 | 8 | 2300 |
| CT-C-O | 25 | 0.45 | 5 | 8 | 1200X1000X1750 | 0 | 800 |
| CT-C-IA | 50 | 0.45 | 10 | 24 | 1400X1200X2000 | 1 | 1000 |
| CT-C-I | 100 | 0.45 | 18 | 48 | 2300X1200X2000 | 2 | 1500 |
| CT-C-II | 200 | 0.9 | 36 | 96 | 2300X2200X2000 | 4 | 1800 |
| CT-C-IIA | 200 | 0.9 | 36 | 96 | 4460X1200X2290 | 4 | 1800 |
| CT-C-III | 300 | 1.35 | 54 | 144 | 3300X2200X2000 | 6 | 2200 |
| CT-C-IIIA | 300 | 1.5 | 54 | 144 | 2300X3220X2000 | 6 | 2200 |
| CT-C-IV | 400 | 1.8 | 72 | 192 | 4460X2200X2290 | 8 | 2800 |
