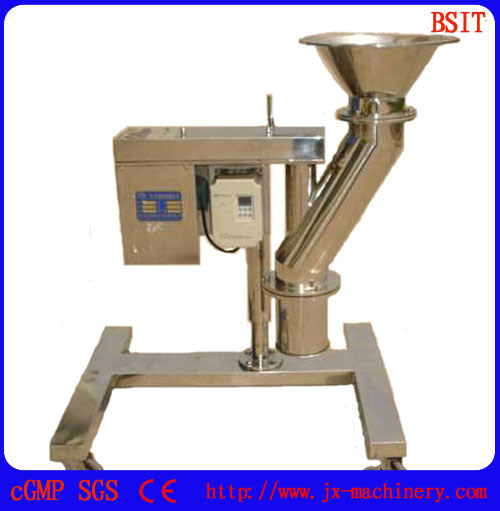

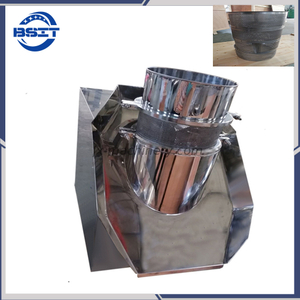

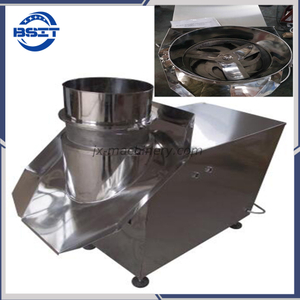

SUS304 Stainless Steel Quick Speed Granulator for FZL-100 Main introduce: High speed grinding Granulator are widely used in pharmaceuticals, chemical industry, and foodstuffs with good stuffs with good effect. It's designed reasonably with filter sieve, shaft. It cans grind a block of fragile material that is easy to be smashed. The specialized friction filter cans grind solid particles on a big block according to centrifugal force principle. It can replace oscillating granulator.
Working principle: The material to be processed enters into the feed inlet of grinding and granulating machine, drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force, The granulates are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.
Usage:
Pharmacy:
1. Grinding of raw material
2. Granulating of wet material
3. Granulating of dry material
4. Unqualified tablets to be recycled can be granulated according to the requirement of granularity
Food: Grinding of biscuit for recycling
Others: Grinding and granulating of rough raw material
Grinding and granulating of lump raw material.
Features:
1.Thoroughly solving the tough problem of material contaminated by the debris of worn sieve mesh in a pendulum-type granulating machine.
2.The unique patented shaft sealing technology ensures no leakage of lubrication oil.
3.Easy to control granularity
4.No retention dead corner, no material overheating.
5.Less dust, no vibration, low noise.
6.High efficiency, energy saving, large production capacity.
7.Attractive appearance ,easy to clean
8.A-type machine apply to the work requirements of 100-grade workshop. Technical Specifications: Type | 80 | 120 | 160 | 200 |
Length (mm) | 185 | 185 | 185 | 185 |
Diameter of filter hole (mm) | 1--8 |
Product capacity (kg/h) | 50-100 | 100-200 | 150-300 | 200-400 |
Motor power (kw) | 0.55 | 1.1 | 1.5 | 2.2 |
Running speed (r/min) | 1500-3000 | 1000-1500 | 1000-1500 | 800-1000 |
Overall size | 650x450x1000 | 1000x800x1200 | 1060x850x1350 | 1100x1000x1500 |
