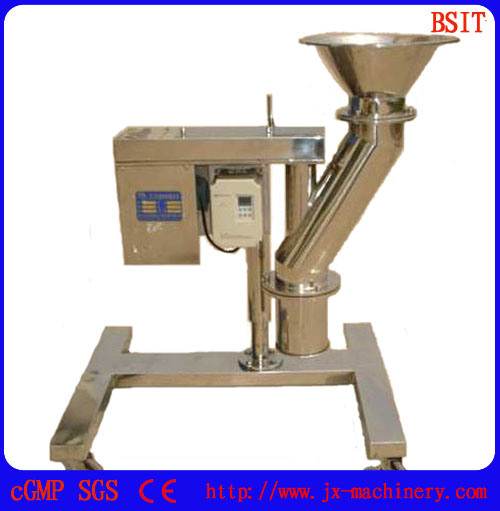

Pharmaceutical Machine Multi Mill (FZ)

  • Shanghai, China
  • 20 Sets/Month
  • T/T, Western Union
  • FZ
  • Customized
  • New
  • 1 Year
  • Pharmaceutical Machine Multi Mill
  • Multi Mill
  • 15-150kg
  • 6-80mesh
  • SUS304
  • 1.5kw
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 8422400000
  • Preparation Machinery
  • Granules
  • Precision
  • GMP
  • 220V
  • Computerized
Pharmaceutical Machine Multi Mill (FZ)

General description:

FZ series grinding and granulating machine is used in pharmaceutical, food, fine chemical processing industries. This machine reaches the world advanced level and conforms to the GMP specification. It is completely made of stainless steel material.

Working principle:
The material to be processed enters into the feed inlet of grinding and granulating machine, drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force, The granulates are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

Pharmaceutical Machine Multi Mill (FZ)
Pharmaceutical Machine Multi Mill (FZ)
Working principle:
The material to be processed enters into the feed inlet of grinding and granulating machine, drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force, The granulates are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

Usage:
Pharmacy:
1. Grinding of raw material
2. Granulating of wet material
3. Granulating of dry material
4. Unqualified tablets to be recycled can be granulated according to the requirement of granularity
Food: Grinding of biscuit for recycling
Others: Grinding and granulating of rough raw material
Grinding and granulating of lump raw material.

Main technical parameters:
model FZ-150 FZ-300 FZ-450 FZ-700 FZ-1000
Item FZB-150(A) FZB-300(A) FZB-450(A) FZB-700(A) FZB-1000(A)
Capacity of grinding and granulating machine (kg/h) 15-150 30-300 45-450 70-700 100-1000
Granularity (mesh) granularity (mesh/h) 6-80
Drive seat temperature rise(ºC) <30
Range of speed regulation FZ :2800rpm
FZB:300-3600rpm
Motor power (kw ) 1.5 1.5 2.2 3 5.5
Overall dimension (LXWXH) 810X445X1345 810X445X1345 920X445X1430 1000X500X1530 1100X560X1785
Height of discharge hopper from the ground level(mm) 650 650 690 690 565
