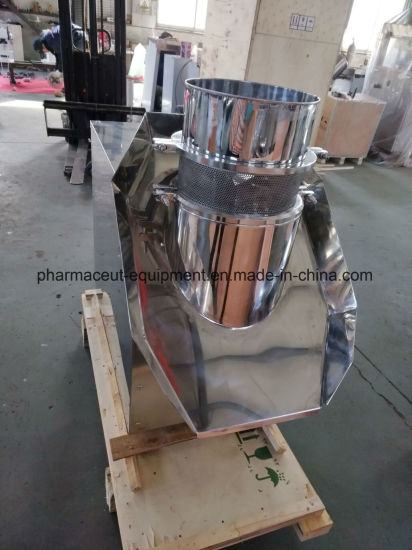

Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)

  • Shanghai, China

  • 20 Sets/Month

  • T/T, Western Union, Paypal, Money Gram

  • ZL-300

  • Customized

  • New

  • 1 Year

  • 300L

  • Granulating Machine

  • 300mm

  • 100-300kg/H

  • SUS304 or SS316

  • 1.5-3mm

  • 60rpm

  • 7.5kw

  • 255kg

  • 1150X590X1180mm

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP Standard

  • Made in China

  • 8438909000

  • Preparation Machinery

  • Granules

  • High Precision

  • CE, GMP, ISO

  • 380V

  • Computerized

ZL300 rotary granulator
Working Principle:

ZL Series Rotating Granulator Machine-Wet Powder Rotary Granulator is high in the grain making and shaping rate, perfect in the grain exterior appearance. Its automatic material discharge will avoid the grain damage caused by manual material discharge. The machine is suitable for the flow production. The machine's structure is reasonable and its external appearance is beautiful.

The ZL Series Rotating Granulator Machine makes the materials mixed into the desired grains. It is especially suitable for the materials that have high viscosity.

ZL Series Rotating Granulator Machine is developed latest by our company. It can discharge the materials auto, and it is reach with the requirements of GMP, it is one of the best granulator

The motor can change speed and direction by the gear case, which make the Grinding Blade and materials pusher do opposite rotation., the materials pusher pin the materials by the inclined plane, and the Grinding Blade push the material to the screen barrel, then the materials formed into granules.

Feature:

1.This machine is widely used in the pharmaceutical, food industry, chemical industry, light industry and so on, it is used in granulating the wet powder into granules,
2. The Seasoning Revolving Granulating Machine also connect the drying machine to get dried instant granues. Machine materials of ZL Series Rotating Granulator Machine (Seasoning Revolving Granulating Machine): AISISUS304 , AISISUS316L, and other material .
3. The feeding system for this machine can be by manual or screw feeder .

4.Change the different bore of screen barrel, then can get different size of granules.
5.Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.
6. Low noise and good seal
7. Smooth running, reliable performance, easy operation.
8. Small cubage, easy to install, convenient to operate and maintain.


Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)
Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)

Main technical data:
Model ZL250 ZL300
Cutting knife capacity 250(L) 300(L)
Max size for pellet 2-2.2(mm)be custom make 1.8-2.5(mm)be custom make
Overall size(mm) 700*540*1300 880*640*1300
Motor power(kw) 3 3
Weight (kg) 350 400
Capacity (kg/h) 100-200 140-400

Finished sample:

Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)

Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)
Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)





Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)
Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)
Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)
Pharmaceutical Foodstuff Rotary Granulating Machine (Zl-300)
