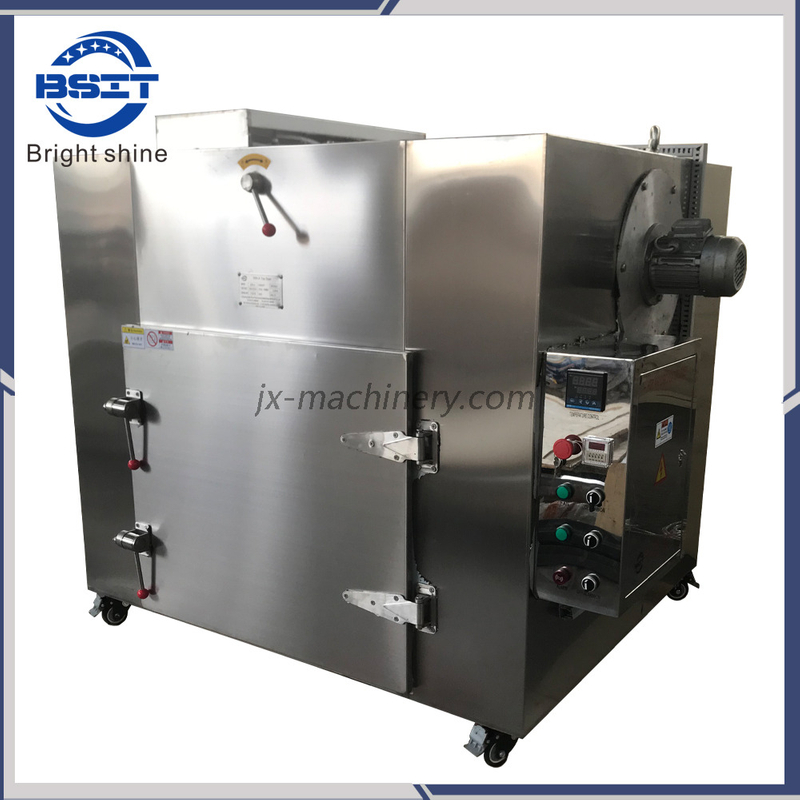

Pharmaceutical Drying Oven Hot Air Circle Oven (CT. CT-C Series)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
CT-C-I
Customized:
Customized
Condition:
New
Warranty:
1 Year
CT-C-I Model Oven:
100kg/Time
Heating Model:
Electrical Heating
Motor:
Explosion Motor
Power(Kw:
1.1kw
Consumption of Steam (Kg/H):
20
Amount of Tray:
48PCS
Amount of Trolley:
2 PCS
Overall Dimensions (mm):
2430X1200X2375mm
Weight:
1200kg
Material:
SUS304 or SS316
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422400000
Type:
Preparation Machinery
Finished Dosage Form:
Granules
Precision:
High Precision
Certification:
GMP
Voltage:
380V
Computerized:
Computerized

Product Description

Pharmaceutical Drying Oven Hot Air Circle Oven (CT. CT-C Series)

Application:

It is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Main technical parameters:

1). The hot source can be steam, electricity, far infrared, or steam + electricity.
2). Temperature of operation: 50~140.
3). 50~350 for electricity or far infrared.
4). There are automatic and computer control systems for customer selection.
5). The normal pressure of steam will be 0.02~0.8Mpa.
6). The size of drying tray: 460X640X45.

Pharmaceutical Drying Oven Hot Air Circle Oven (CT. CT-C Series)

Main technical parameters:

1). The hot source can be steam, electricity, far infrared, or steam + electricity.

2). Temperature of operation: 50~140.

3). 50~350 for electricity or far infrared.

4). There are automatic and computer control systems for customer selection.

5). The normal pressure of steam will be 0.02~0.8Mpa.

6). The size of drying tray: 460X640X45.

Technical Parameters:

Parameter Type	Dry amount kg/times	Power(kw)	Consumption of steam (kg/h)	Amount of tray	Overall dimensions (mm)	Amount of trolley	Weight(kg)
CT-I	100	1.1	20	48	2430X1200X2375	2	1200
CT-II	200	1.1	40	96	2430X2200X2433	4	1500
CT-III	300	2.2	60	144	3430X2200X2620	6	2000
CT-IV	400	2.2	80	192	4380X2200X2620	8	2300
CT-C-O	25	0.45	5	8	1200X1000X1750	0	800
CT-C-IA	50	0.45	10	24	1400X1200X2000	1	1000
CT-C-I	100	0.45	18	48	2300X1200X2000	2	1500
CT-C-II	200	0.9	36	96	2300X2200X2000	4	1800
CT-C-IIA	200	0.9	36	96	4460X1200X2290	4	1800
CT-C-III	300	1.35	54	144	3300X2200X2000	6	2200
CT-C-IIIA	300	1.5	54	144	2300X3220X2000	6	2200
CT-C-IV	400	1.8	72	192	4460X2200X2290	8	2800
