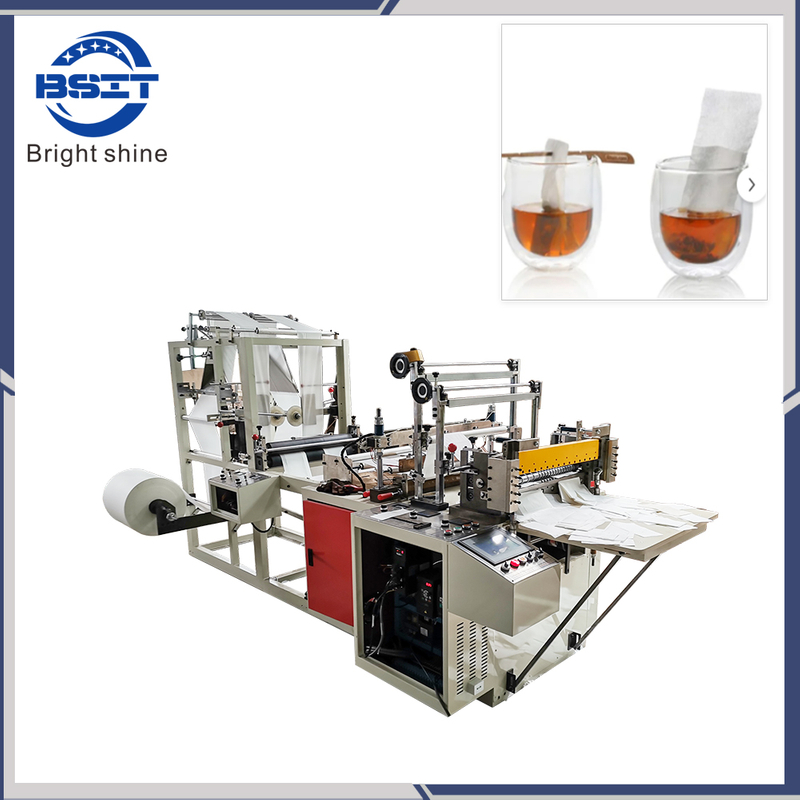

High Speed Tea Filter Paper Bag Making Machine for Bottom Fold M (BSIT)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
BIT
Sealing & Cutting:
Heat-Sealing Heat-Cutting
Layer:
Single
Machine Type:
Bag Forming Machine
Computerized:
Computerized
Type:
Paper Bag Making Machine
Name:
Filter Bag Paper Bag Making Machine
Keywords:
Tea Bag Making Machine
Speed for Bag-Making:
100-200PCS/Min
Materical:
21g Filter Paper or Woven Fabic
Meet:
Food Standards or Drinking
Suitable:
Tea or Coffee
Total Power:
2.5kw
Length for Bag-Making:
40-485mm
Width for Bag-Marking:
40-800mm
Supply Power:
380V/220V50Hz, 3p, Four-Wire
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8441200000
Product Line:
Tea Bag Forming Making Packing Machine
Lines:
2
Voltage:
380V
Seals Mode:
Heating Sealing
Speed:
High
Continuous-Rolled:
Yes

Product Description

High Speed Tea Filter Paper Bag Making Machine for bottom Fold M (BSIT)

Why choose our empty filter paper bag forming maker machine ? tea bag packing machine, tea packaging machine, tea bag forming machine, tea bag maker machines,paper bag making machine price,paper bag making machine,paper tea bag machine,tea bag forming machine,tea bag folding machine,empty tea bag making machine,empty tea bag machine,

1. It is suitable for filter paper or nonwoven packing materical

2. Filling or packing all kinds of tea or flower tea or coffee freely

3. Single channels or double channels for manufacture this filter bag

4. PLC touch screen easy to operate

5. Servo motor driving in order to get high precision

6. 1 Set machine can make more bag size by changed mould

7. Speed can adjust freely from 150-300ps/min

8. Filter bag size according to customer sample to make it

Click here for check this work video Whttps://youtu.be/LP6-aZ05VoU

PLC touch screen operate

High Speed Tea Filter Paper Bag Making Machine for Bottom Fold M (BSIT)

Our factory make packing photo before delivery this goods
High Speed Tea Filter Paper Bag Making Machine for Bottom Fold M (BSIT)

Russia customer make FAT testing for this empty tea bag forming making machine drawing

High Speed Tea Filter Paper Bag Making Machine for Bottom Fold M (BSIT)

Main Feature:

1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.
2)Main motor adopts frequency control
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control
4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control.
5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.
6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
8)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel

Technical Parameter:

1	Supply power:	380V/220V50Hz, three-phase four-wire system
2	Total power:	2.5Kw
3	Max. Diameter for filter paper roll	650mm
4	Length for bag-making:	40-485mm
5	Width for bag-marking:	40-800mm
6	Speed for bag-making:	30-150pcs/min
