Flower Tea /Herbal Tea/ Coffee/ Food Tea Bag Making Forming Packing Machine/ Paper Bag Production Line



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
TMD-500
Material Type:
Tea or Coffee
Packaging:
Tea Bag
Packaging Material:
Paper
Name:
Tea Bag Making Forming Packing Machine
Capacity:
100-200 Bags/Min
Packing Materical:
Filter Paper or No-Woven Fabic
Bag Kinds:
Long Tongue Plugged Tea Bag
Supply Power:
380V,50Hz 3p
Display System:
PLC Control Display System
Total Power:
2.5kw
The Maximum Length of The Bag:
1000mm
The Minimum Length of The Bag:
30mm
Suitable Product:
3.Flower Tea or Herbal Tea or Coffee or Food
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8441200000
Automatic Grade:
Automatic
Application:
Cosmetics, Drinks, Dairy Products, Tea, Vegetable, Fruit, Fish, Meat
Type:
Making Bag Machine
Forming Species:
Bag Moulding
Forming Function:
Forming
Driven Type:
Electric

Product Description

Flower tea /herbal tea/ coffee/ food Tea Bag Making Forming Packing Machine (TMD-500)

Our machine advantage

This is New model Servo driving tea bag forming machine
Suitable for filter paper/no Woven forming 2 kinds of materical
Suitable Filling or packing all kinds of tea or flower tea or heral tea or coffee or food
Guarantee 1 year
Supply free FAT testing
Supply SAT testing according to customer request
Counting machine 50pcs in order to carton manually

Click for working video https://youtu.be/LP6-aZ05VoU

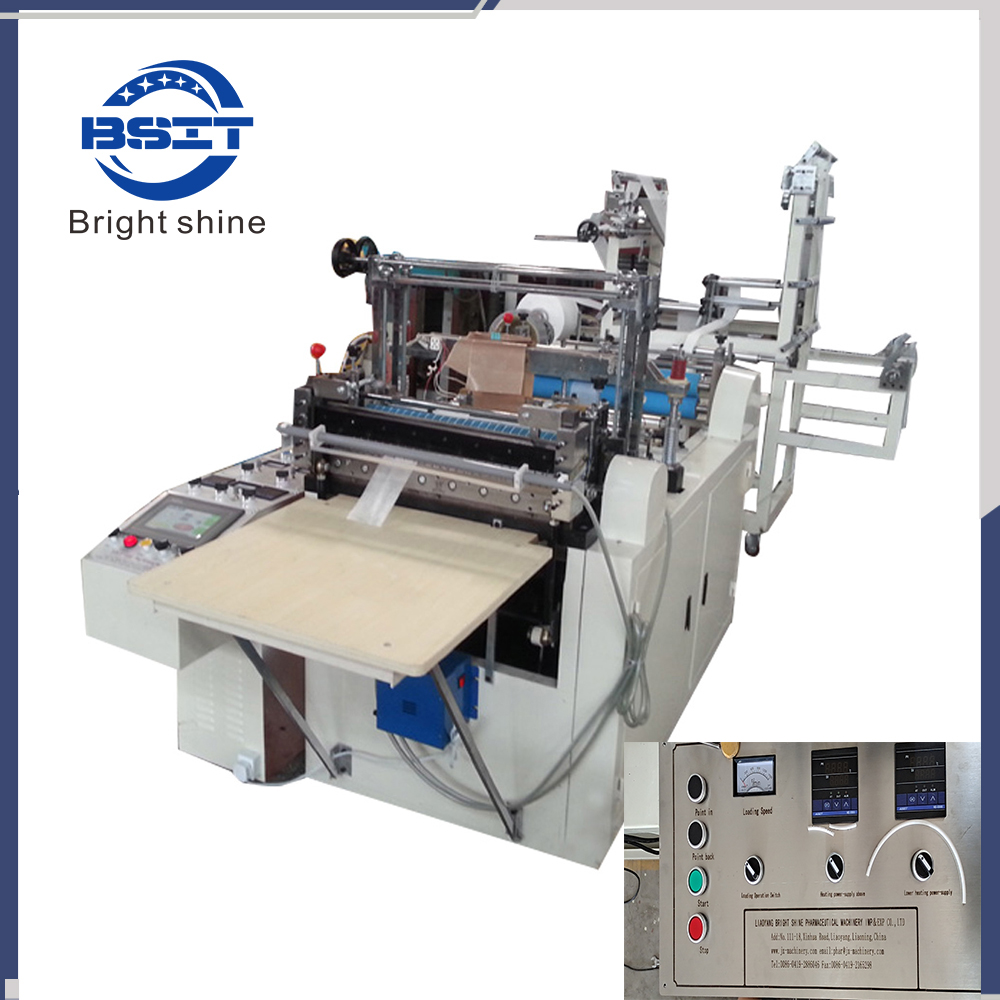

Flower Tea /Herbal Tea/ Coffee/ Food Tea Bag Making Forming Packing Machine/ Paper Bag Production Line

Machine forming part by filter paper
Flower Tea /Herbal Tea/ Coffee/ Food Tea Bag Making Forming Packing Machine/ Paper Bag Production Line

Russia customer engineer make FAT testing
Flower Tea /Herbal Tea/ Coffee/ Food Tea Bag Making Forming Packing Machine/ Paper Bag Production Line

Make export packing for delivery
Flower Tea /Herbal Tea/ Coffee/ Food Tea Bag Making Forming Packing Machine/ Paper Bag Production Line

1.Configuration

1. Fixed-length system by a three-phase hybrid stepping motor

PLC The control system by PLC
7 Display system with 7 -inch touch screen
Hot knife mould is made of alloy copper
Down-feed power adopt by DC motor
Down-feed speed control by the swing-rod type control
Fold adopts stainless steel bucket type folded.
Down-feed tension adopts magnetic powder brake
45#Upper and lower knives is made of 45 # forged steel
Roller of machine are made of aluminum roller.
Power roller are antistatic rubber roller
Main motor adopt variable frequency speed control
The whole structure is channel steel

Main feature:

1. New design Single channels or double channels for manufacture
2. PLC touch screen easy to operate
3. Servo motor driving in order to get high precision
4. 1 Set machine can make more bag size by changed difference mould
5. Speed can adjust freely from 100-200ps/min
6. Filter bag mould according to customer sample to make it

2.Main Technical Parameter

1)Supply power: 380V/50Hz, three-phase four-wire system
2)Total power: 2.5Kw
3)Speed for bag-making: 200-220pcs/min
4)The maximum length of the bag- - 1000mm
5)The minimum length of the bag- - 30mm

Collocation list

item	brand
Variable-frequency Drive	Panasonic
Touch screen	China
PLC	Siemens
Stepper motor	China
Stepper motor power	China
Contactor	Schneider
Relay	Omron
Solid State Relay	China
motor	China
Switching Power Supply	China
blade	China
