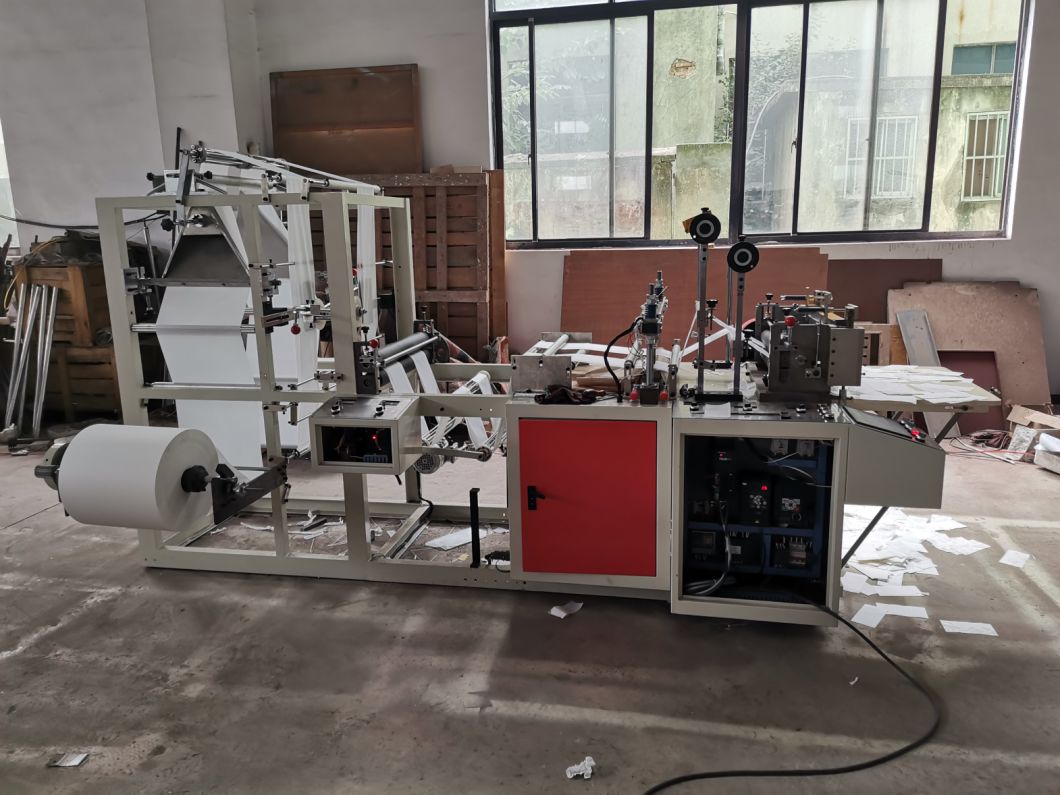

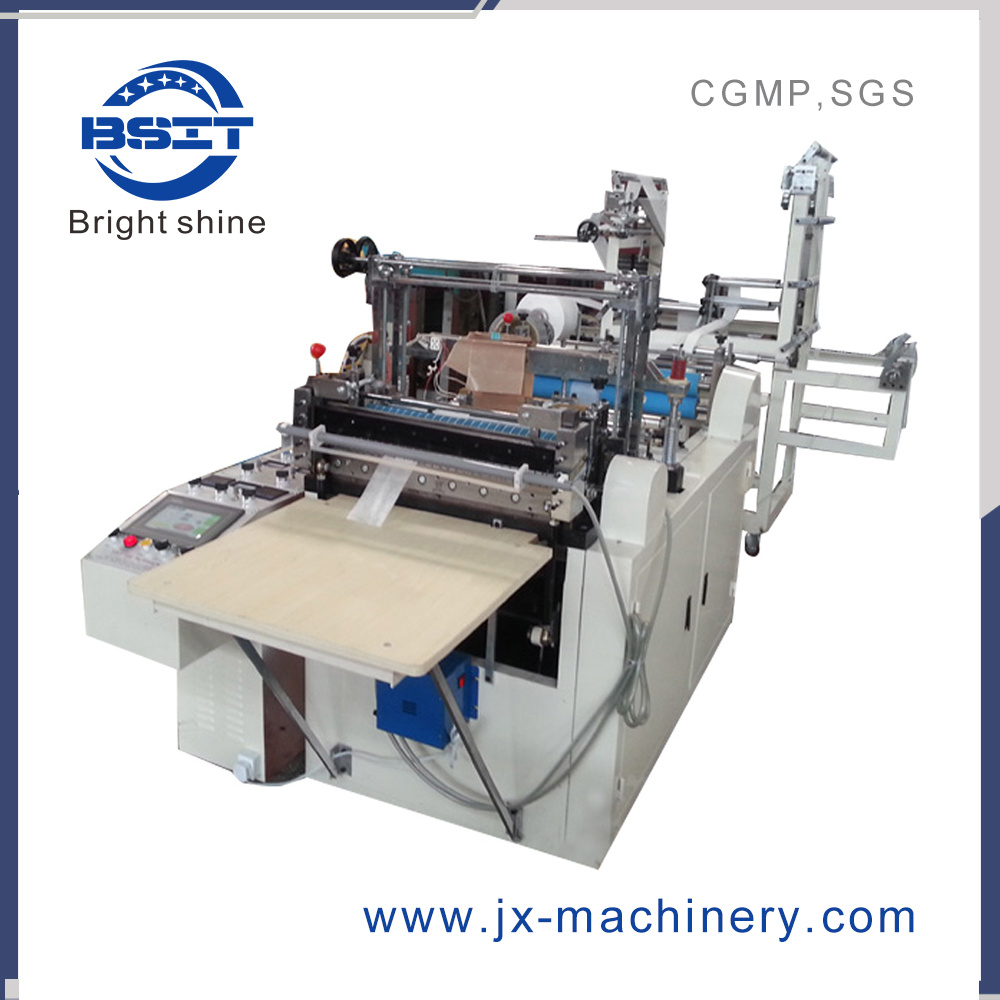

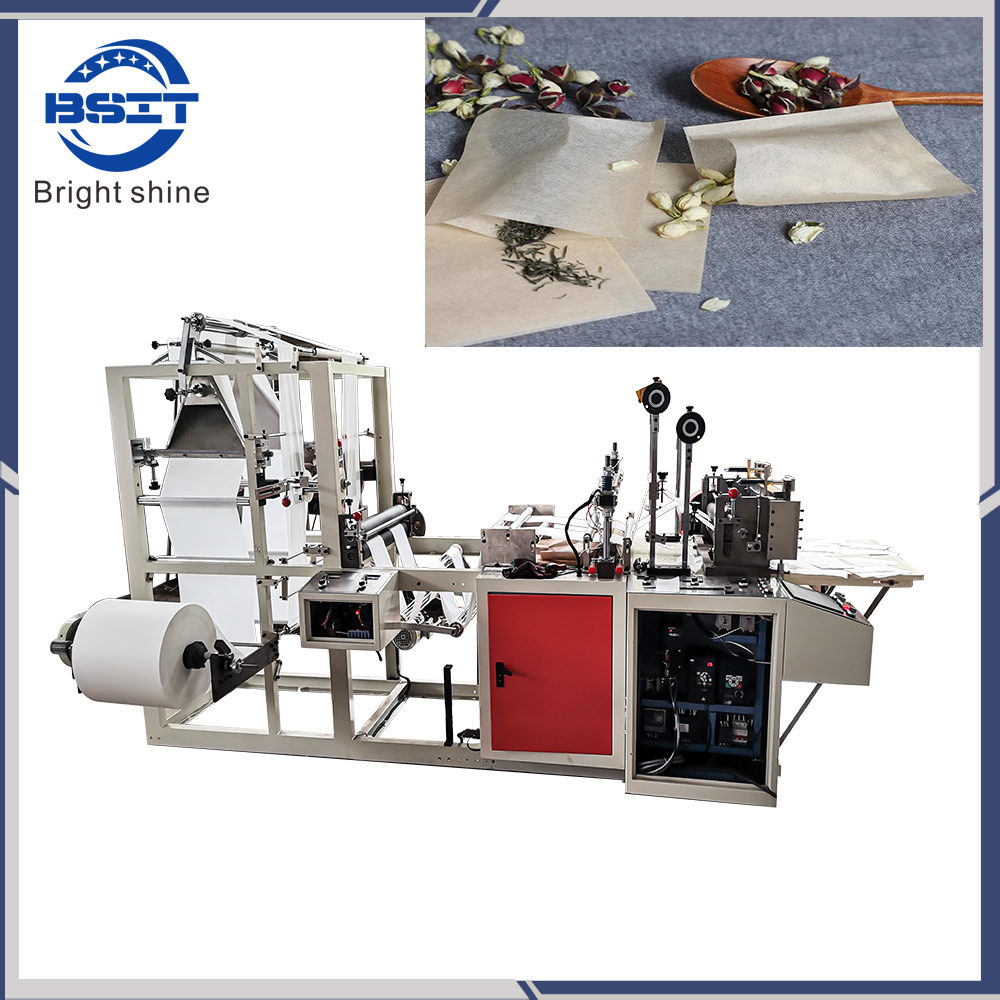

PLC touch screen Servo motor Tea Bag Making Machine for Green Tea/Black Tea
Advantage Configuration:

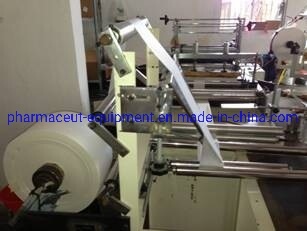

1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.
2)Main motor adopts frequency control and Servo motor driving
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control
4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control.
5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.
6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
8)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel
10) speed from 100-300pcs/min adjust freely. 1-2 channels
click hear for working video https://youtu.be/LP6-aZ05VoU

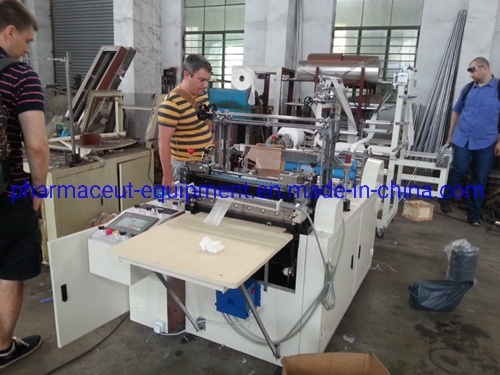

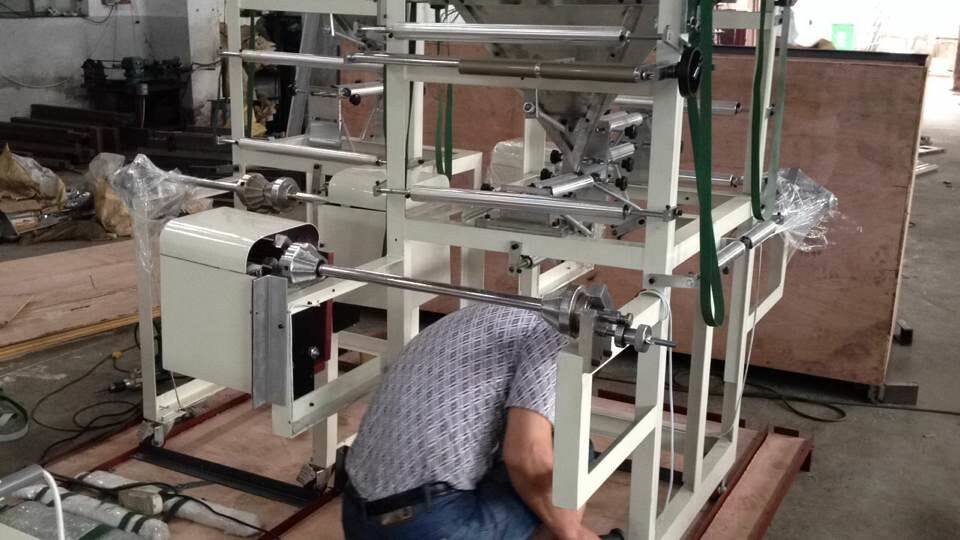

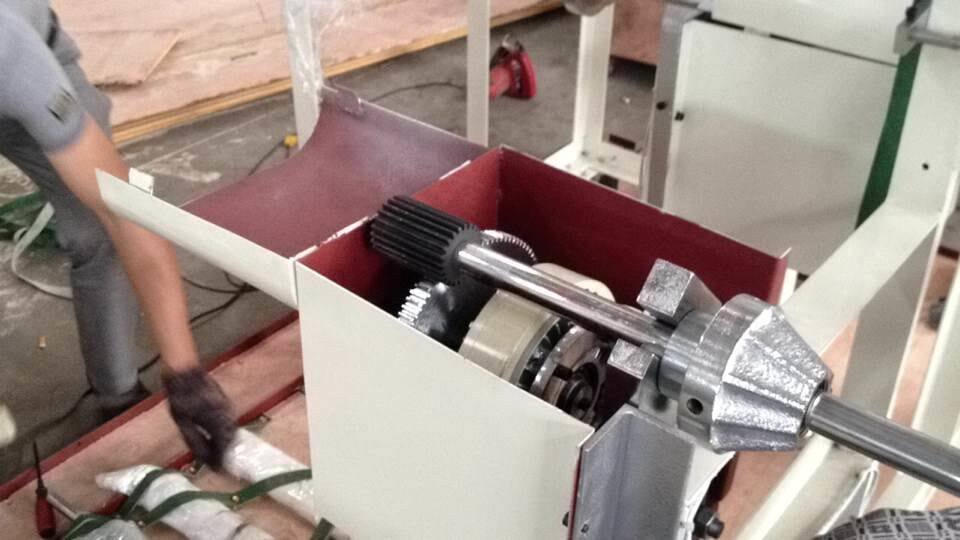

Russia agent make FAT testing

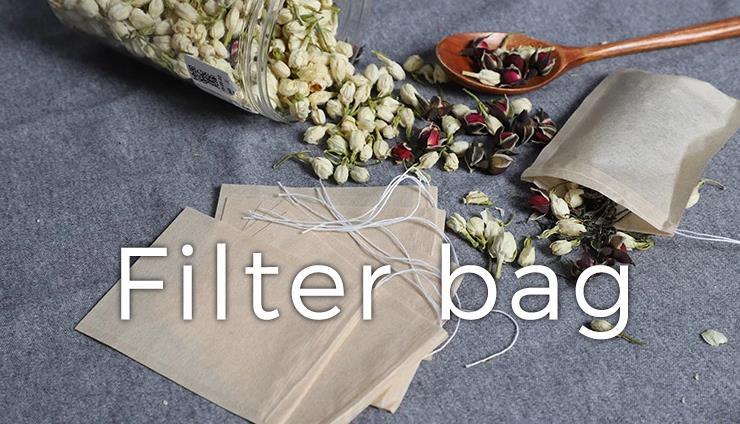

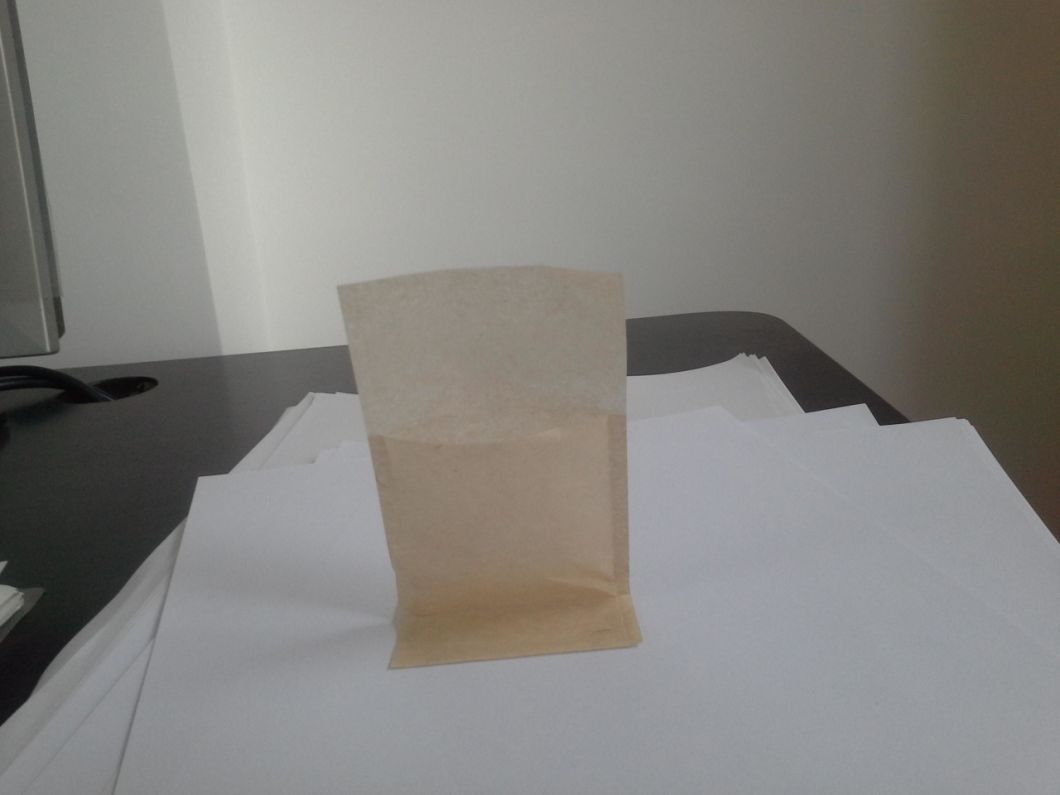

Fold bottom "M" Filter bag sample
Main electric Configuration list : | Name | Brand |
| Servo motor | maixin China |
| Touch screen | kunlun tongtai china |
| PLC | Siemens |
| low-voltage apparatus | Schneider |
| Relay | china |
| Switching Power Supply | china |
| blade | china |
| hot knife | special make |
| magnetic powder brake | china |
| motor | special make |
| Variable-frequency Drive | Panasonic |
Technical Parameter: | 1 | Supply power: | 380V/220V50Hz, three-phase four-wire system |
| 2 | Total power: | 2.5Kw |
| 3 | Max. Diameter for filter paper roll | 650mm |
| 4 | Length for bag-making: | 40-485mm |
| 5 | Width for bag-marking: | 40-800mm |
| 6 | Speed for bag-making: | 30-150pcs/min |
