Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • FBM
  • Filter Paper or Non Woven
  • Bag
  • Paper
  • Filter Tea Bag Packing Machine
  • 380V/220V50Hz, 3p, Four-Wire
  • Servo Motor Driving
  • 100-200PCS/Min
  • 1-2 Channels
  • 40-485mm
  • 40-800mm
  • Bottom for M Fold
  • Tea Bag Making Machine
  • 500-700mm
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 8441200000
  • 377cm * 356cm * 130cm
  • 450kg
  • Automatic
  • Drinks, Skin Care Products, Dairy Products, Tea, Vegetable, Fruit
  • Double Sealing Machine
  • Bag Moulding
  • Forming
  • Mechanical
Long Tongue Plugged Filter paper Tea Bag Making Machine (bottom fold for M)

Our machine advantage

  1. This is New model Servo driving tea bag forming machine
  2. Suitable for filter paper/no Woven forming 2 kinds of materical
  3. Suitable Filling or packing all kinds of tea or flower tea or heral tea or coffee or food
  4. Guarantee 1 year
  5. Supply free FAT testing
  6. Supply SAT testing according to customer request.
  7. Counting machine 50pcs in order to carton manually Main feature:
Click here for more working video https://youtu.be/LP6-aZ05VoU

Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine

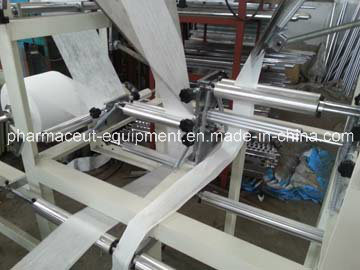

Forming parts
Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
Russia use our machine for normal manufacture
Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
Russa make FAT testing to our factory
Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine

Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
finished filter bag

Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine

Configuration


1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.
2)Main motor adopts frequency control
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control
4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control. 5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.
6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
8)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel

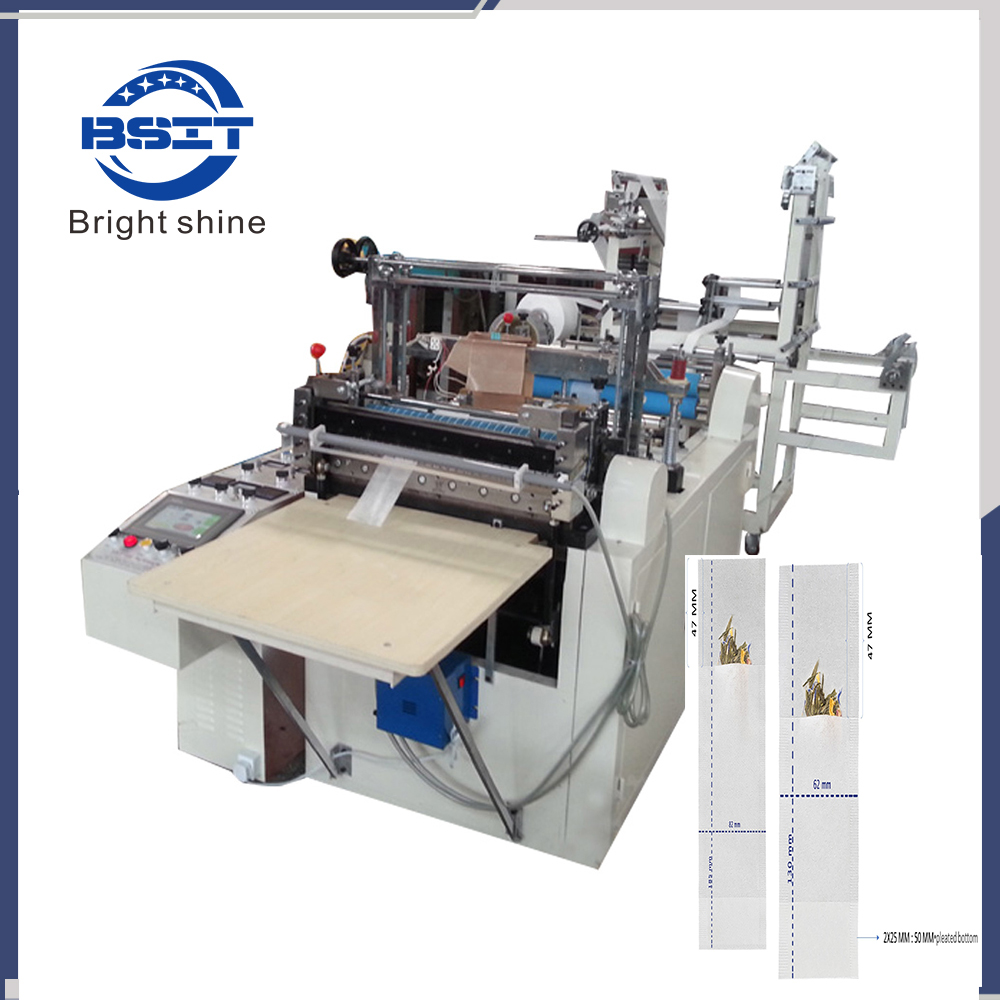

filter bag drawing size as following :

Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine


Main Technical Parameter
1 Supply power: 380V/220V50Hz, three-phase four-wire system
2 Total power: 2.5Kw
3 Max. Diameter for filter paper roll 650mm
4 Length for bag-making: 40-485mm
5 Width for bag-marking: 40-800mm
6 Speed for bag-making: 30-150PCS/min


Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
Long Tongue Plugged Filter Paper Tea Bag Making Machine/Pouch Making Machine
