High Speed New Design Tea Bag Making Machine Price /Filter Paper Envelope Machine (TMB)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
TMB
Material Type:
Tea or Herbs Tea
Packaging:
Bag
Packaging Material:
Filter Paper
Name:
Paper Bag Making Machine Price
Keywords:
Paper Bag Making Machine
Speed for Bag-Making:
100-200PCS/Min
Suitable:
Tea or Herbs Tea or Coffee
Use Packing Materical:
Filter Paper or Woven Fabic
Meet:
Food Standards
Total Power:
2.5kw
Length for Bag-Making:
40-485mm
Width for Bag-Marking:
40-800mm
Supply Power:
380V/220V50Hz, 3p, Four-Wire
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8441200000
Automatic Grade:
Automatic
Application:
Drinks, Tea
Type:
Filter Paper Bag Forming Machine
Forming Species:
Bag Moulding
Forming Function:
Forming
Driven Type:
Mechanical

Product Description

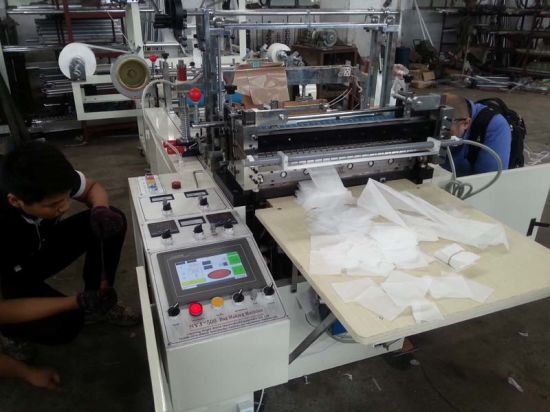

high speed new design tea bag making machine price /paper bag making machine(TMB)

Choose our machine good Configuration:

1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.

2)Main motor adopts frequency control and servo motor driving
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control

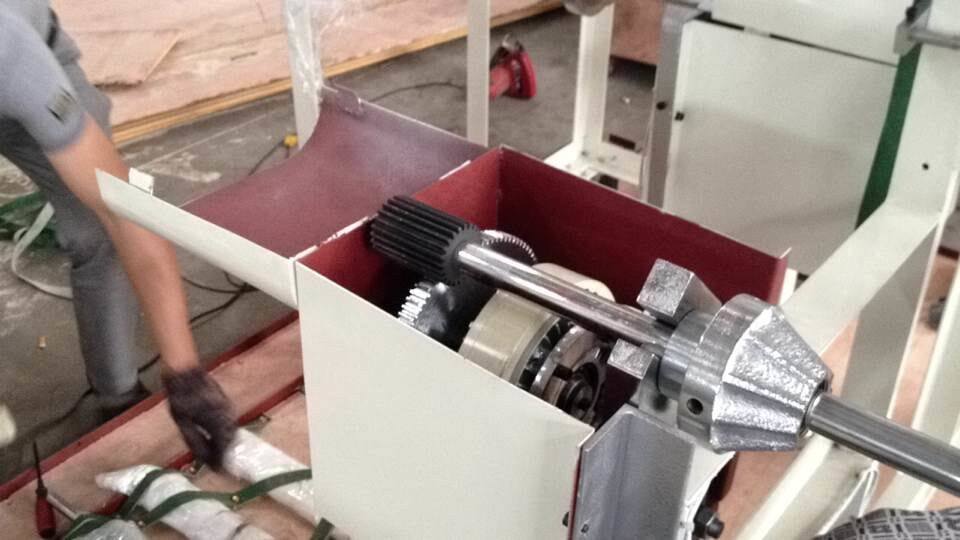

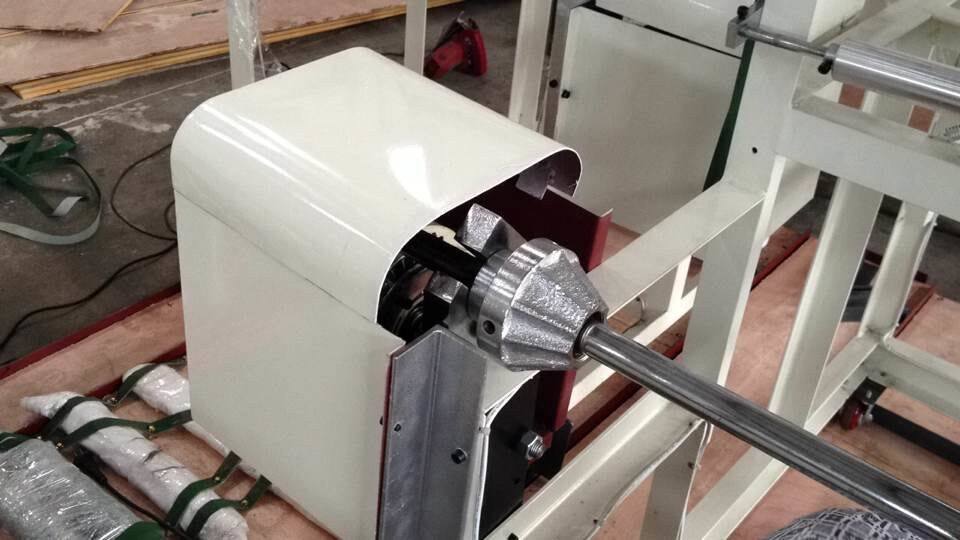

4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control.
5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.

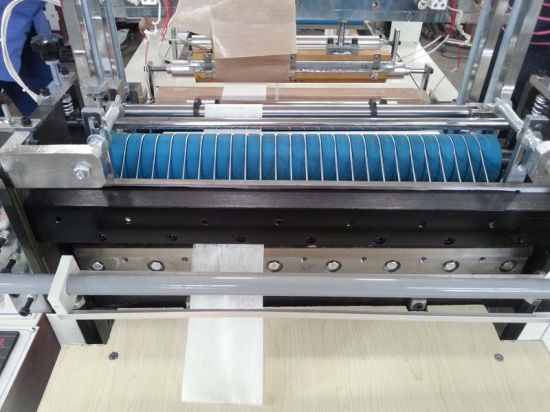

6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
8)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel

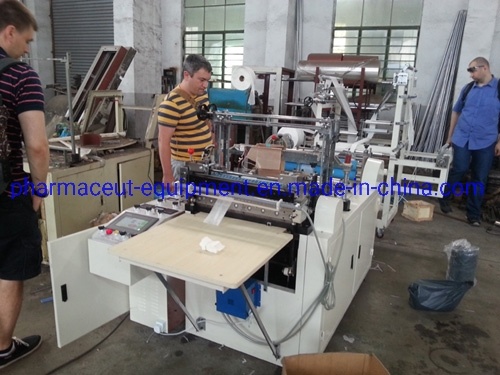

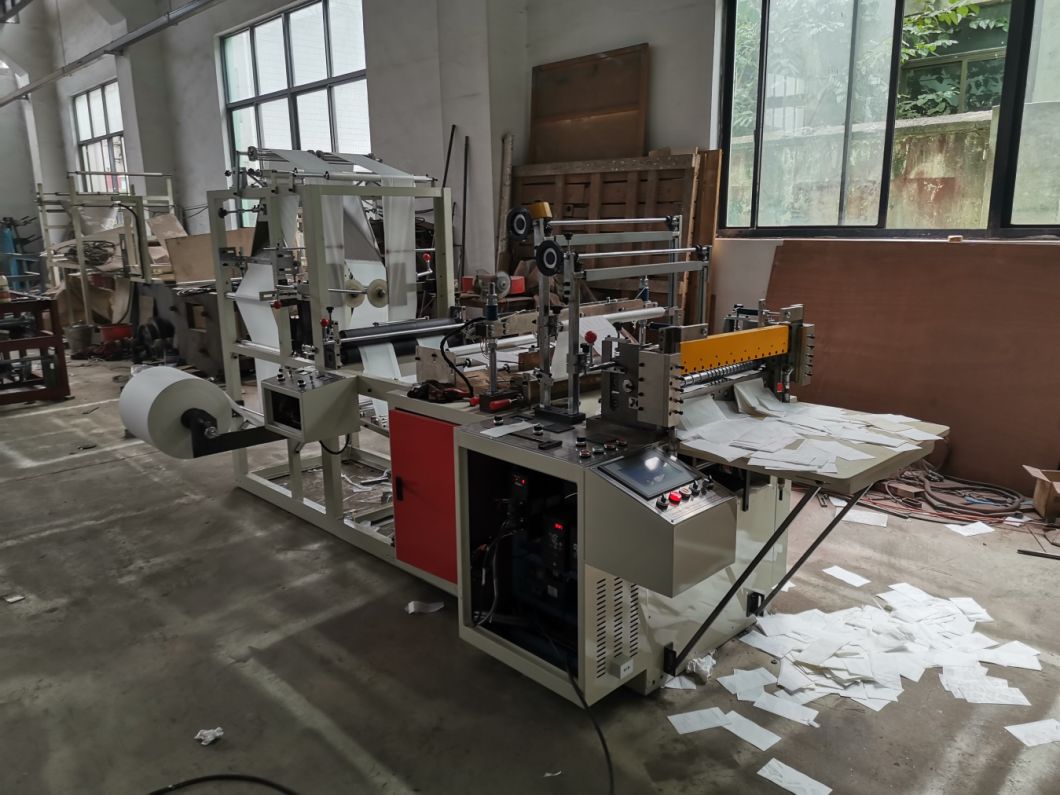

Working video please check this video : https://youtu.be/LP6-aZ05VoU

W

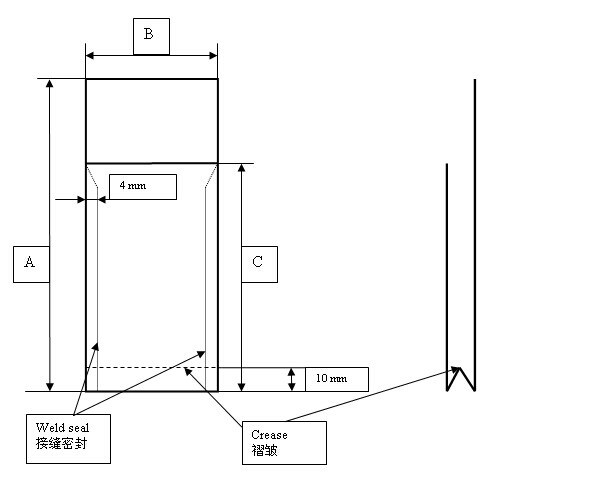

Filter bag drawing as reference

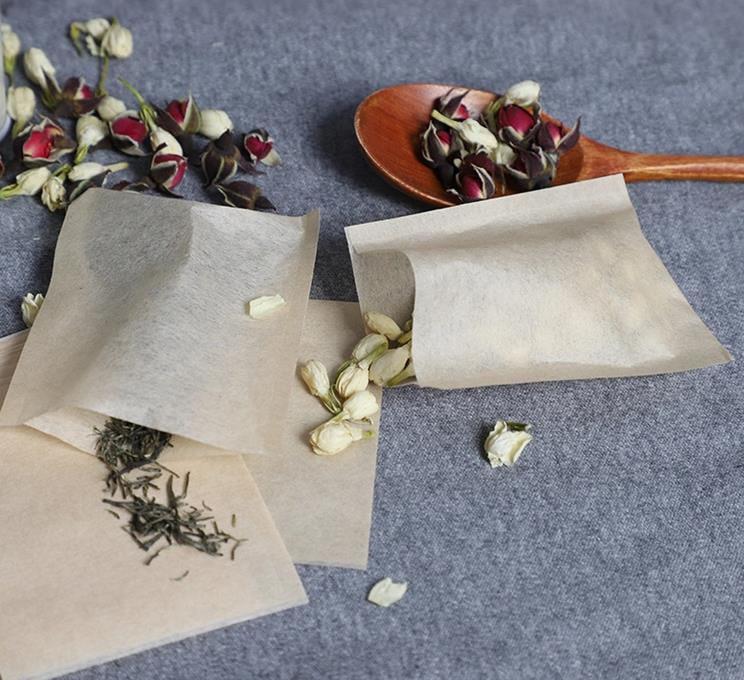

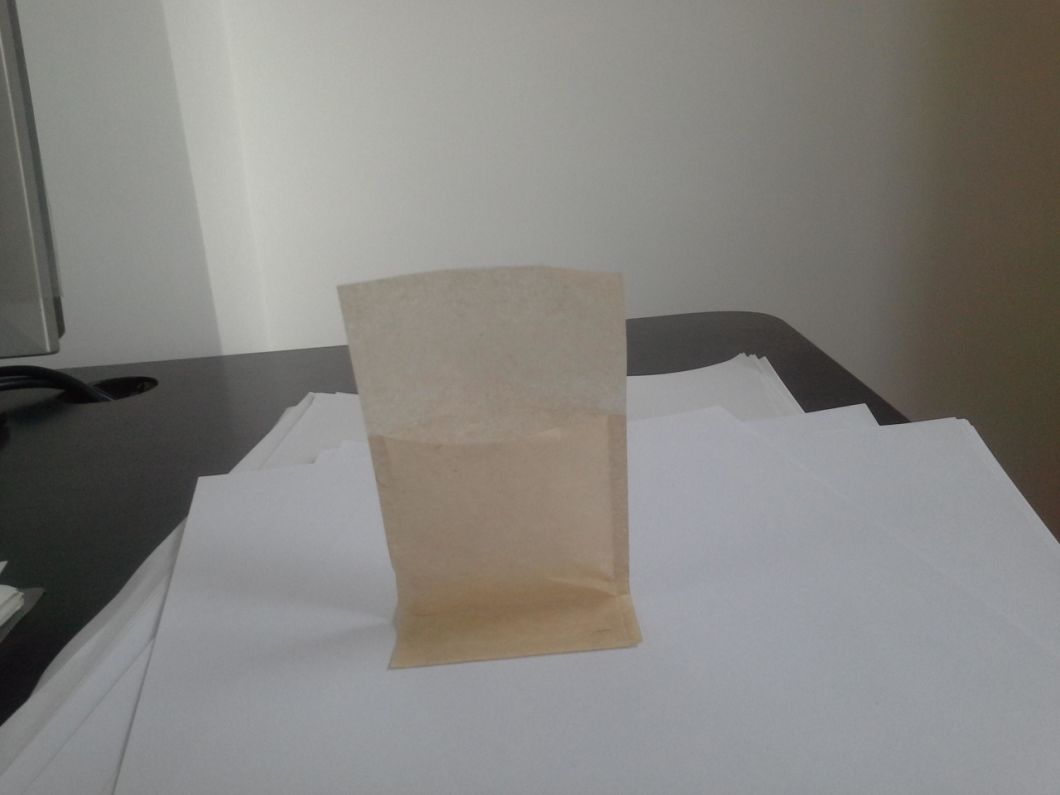

Filter paper bag sample:

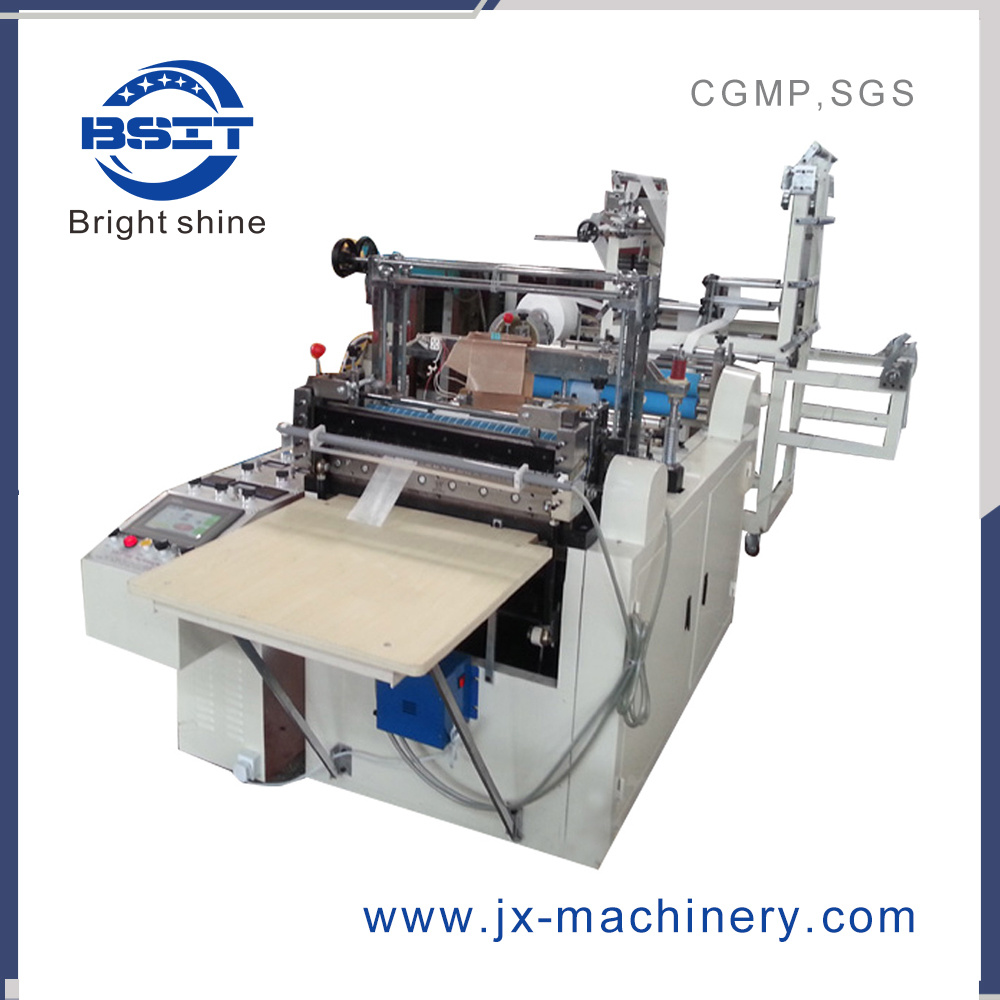

High Speed New Design Tea Bag Making Machine Price /Filter Paper Envelope Machine (TMB)

Technical Parameter:

1	Supply power:	380V/220V50Hz, three-phase four-wire system
2	Total power:	2.5Kw
3	Max. Diameter for filter paper roll	650mm
4	Length for bag-making:	40-485mm
5	Width for bag-marking:	40-800mm
6	Speed for bag-making:	30-150pcs/min
