High Speed Double Channels Empty Tea Bag Maker Machine/Tea Bag Forming Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
TMB
Material Type:
Tea or Herbs Tea
Packaging:
Bag
Packaging Material:
Paper
Product Name:
Filter Tea Bag Packing Machine
Keywords:
Tea Bag Making Machine
Suitable Product:
Tea or Flower Tea or Herbal Tea or Coffee or Food
Control:
Servo Motor
Bag Shape:
Bottom for Fold M Model
Supply Power:
380V/220V50Hz, 3p, Four-Wire
Length for Bag-Making:
40-485mm
Width for Bag-Marking:
40-800mm
Speed for Bag-Making:
100-200PCS/Min
Max. Diameter for Filter Paper Roll:
500-700mm
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8441200000
Automatic Grade:
Automatic
Application:
Drinks, Tea, Vegetable, Fruit, Fish, Meat
Type:
Tea Bag Foldingmachine
Forming Species:
Bag Moulding
Forming Function:
Forming
Driven Type:
Mechanical

Product Description

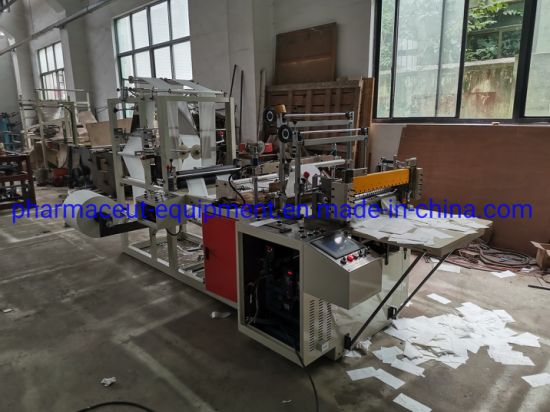

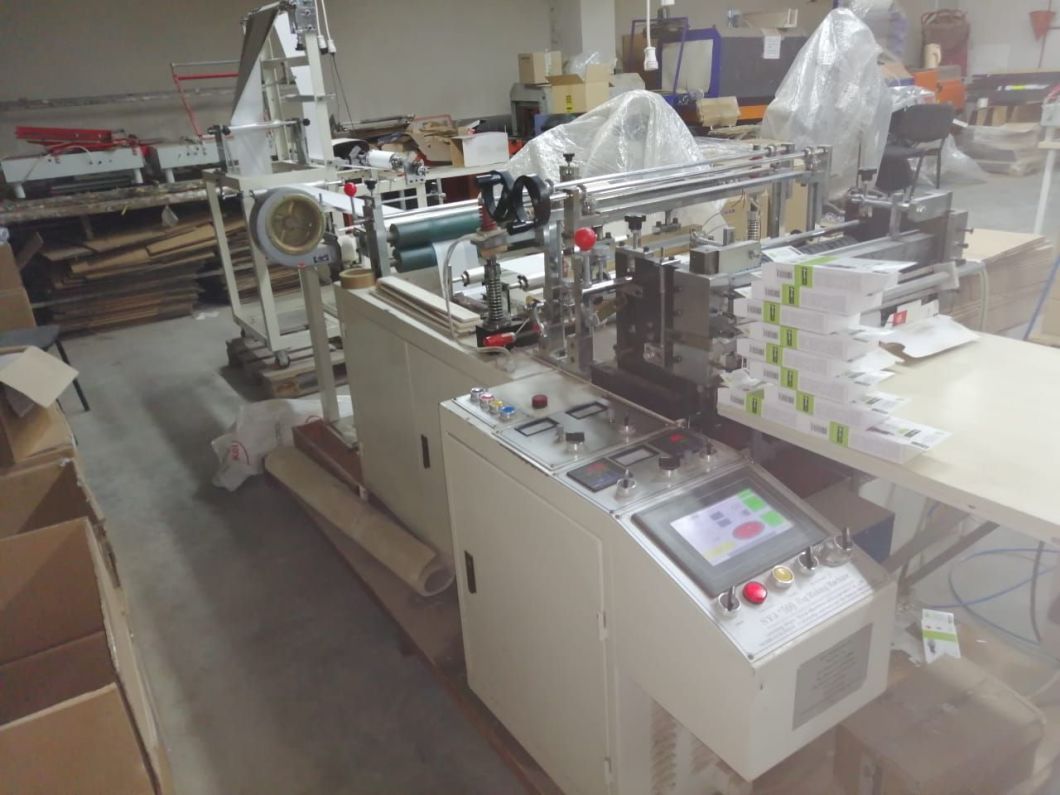

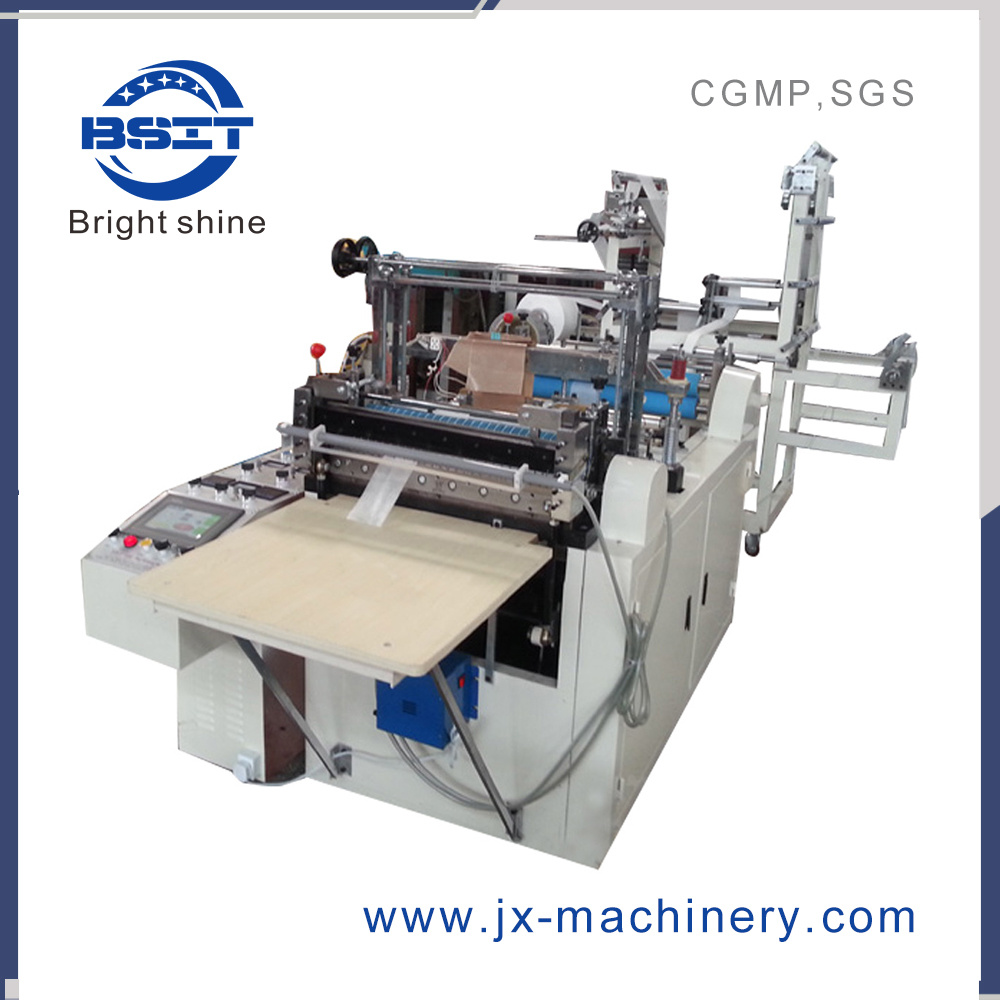

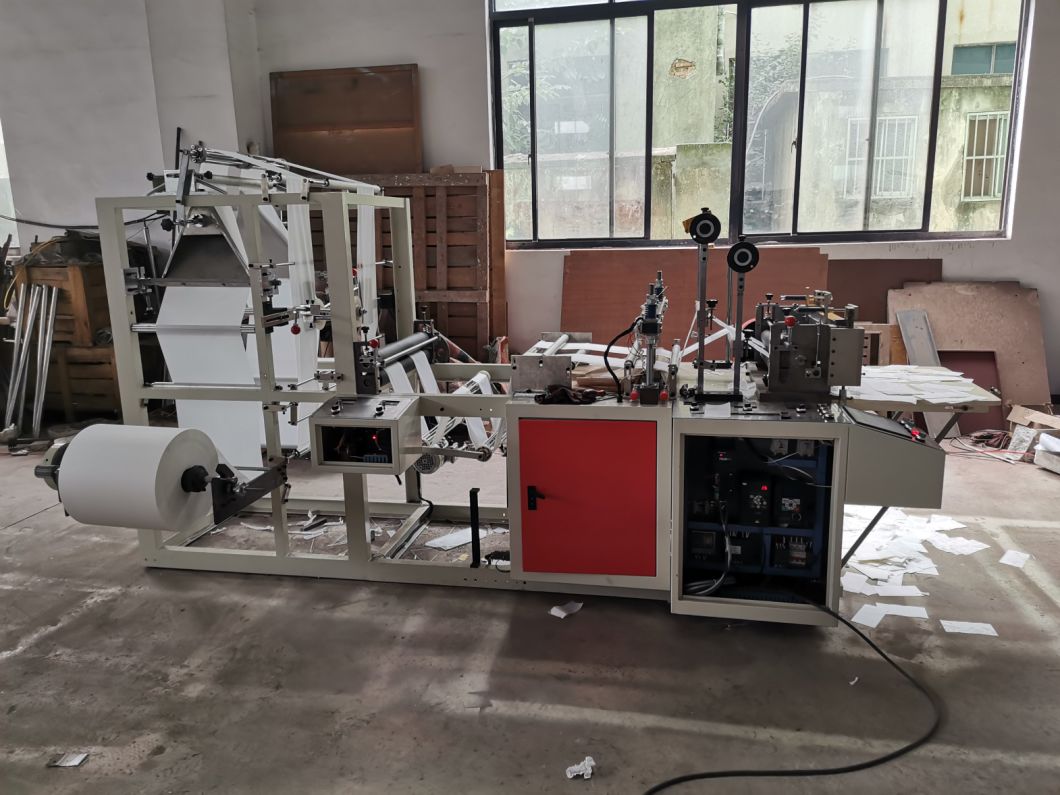

high speed double channels empty tea bag making machine/tea bag forming machine

why choose our machine?

1. New design Single channels or double channels for manufacture
2. PLC touch screen easy to operate
3. Servo motor driving in order to get high precision
4. 1 Set machine can make more bag size by changed difference mould
5. Speed can adjust freely from 100-200ps/min
6. Filter bag mould according to customer sample to make it
7. click here for working video https://youtu.be/LP6-aZ05VoU

Main Configuration

1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.
2)Main motor adopts frequency control
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control
4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control.
5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.
6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
8)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel

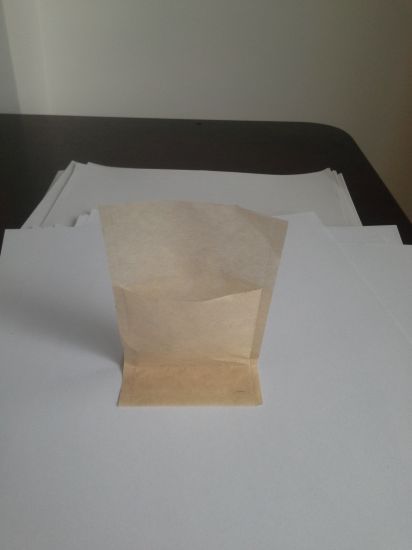

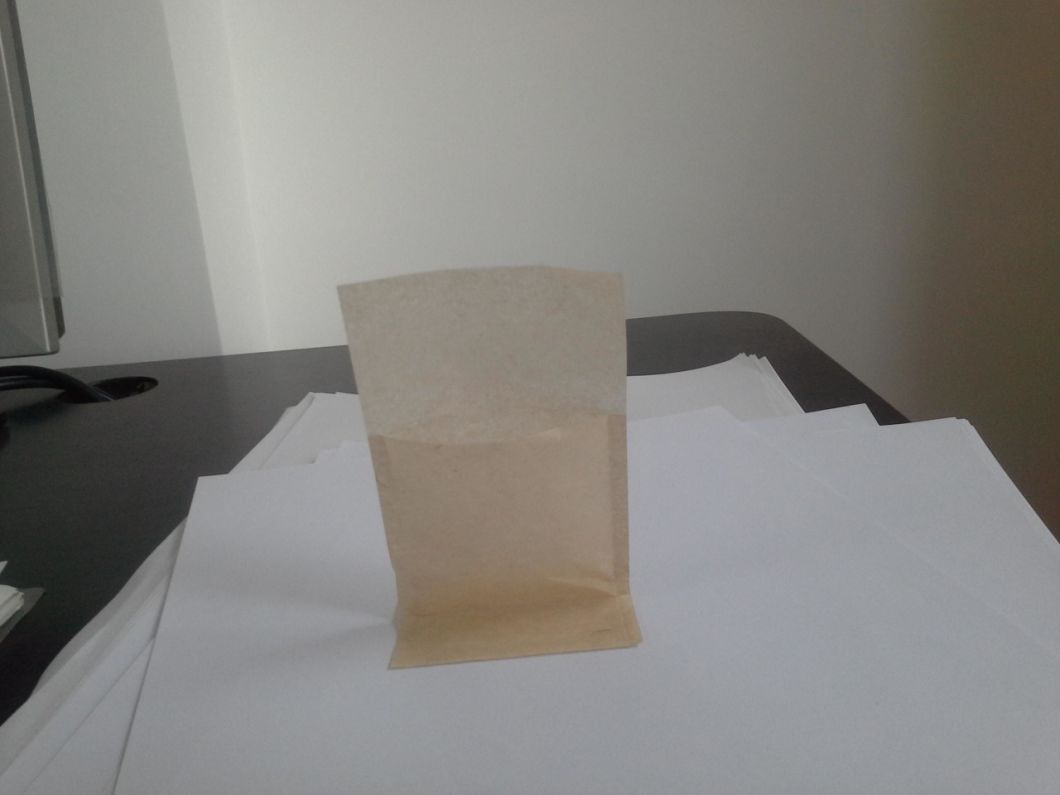

M folding finished filter bag

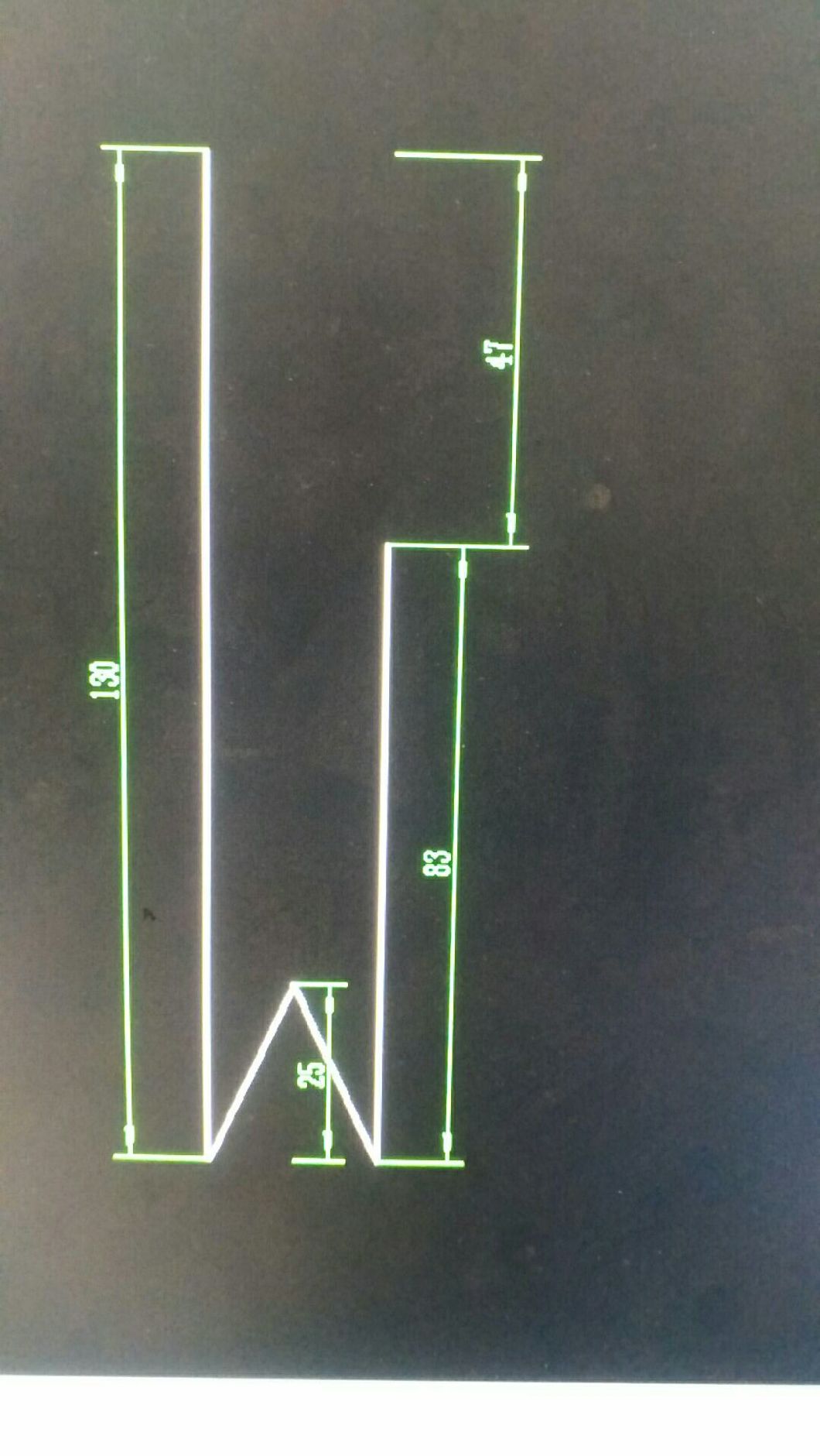

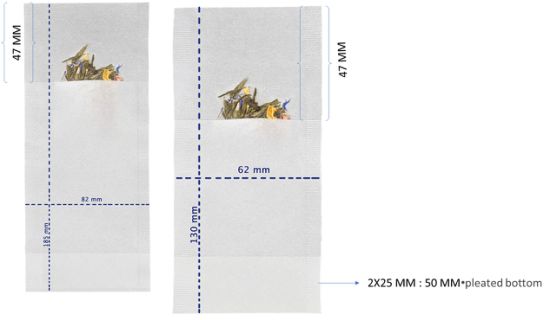

filter bag drawing size as following :

High Speed Double Channels Empty Tea Bag Maker Machine/Tea Bag Forming Machine

Main Technical Parameter

1	Supply power:	380V/220V50Hz, three-phase four-wire system
2	Total power:	2.5Kw
3	Max. Diameter for filter paper roll	650mm
4	Length for bag-making:	40-485mm
5	Width for bag-marking:	40-800mm
6	Speed for bag-making:	30-150PCS/min
