Best Price Factory Supply Filter Paper Bag Making Machine /Tea Bag Sealing Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
TMB
Sealing & Cutting:
Heat-Sealing Heat-Cutting
Layer:
Single
Machine Type:
Bag Forming Machine
Computerized:
Computerized
Type:
Tea Bag Foldingmachine
Product Name:
Filter Tea Bag Packing Machine
Keywords:
Tea Bag Making Machine
Operate:
by PLC Touch Screen
Capacity:
100-200PCS/Min
Control System:
Servo Motor
Bag Shape:
Bottom for Fold M Model
Supply Power:
380V/220V50Hz, 3p, Four-Wire
Length for Bag-Making:
40-485mm
Width for Bag-Marking:
40-800mm
Max. Diameter for Filter Paper Roll:
500-700mm
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8441200000
Product Line:
Tea Bag Forming Making Packing Machine
Lines:
2
Voltage:
380V
Seals Mode:
Trilateral Seals
Speed:
Medium
Continuous-Rolled:
Yes

Product Description

best price factory supply tea bag sealing machine/filter paper forming machine

Main Configuration

1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.
2)Main motor adopts frequency control
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control
4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control.
5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.
6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
8)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel

Best Price Factory Supply Filter Paper Bag Making Machine /Tea Bag Sealing Machine

M folding finished filter bag

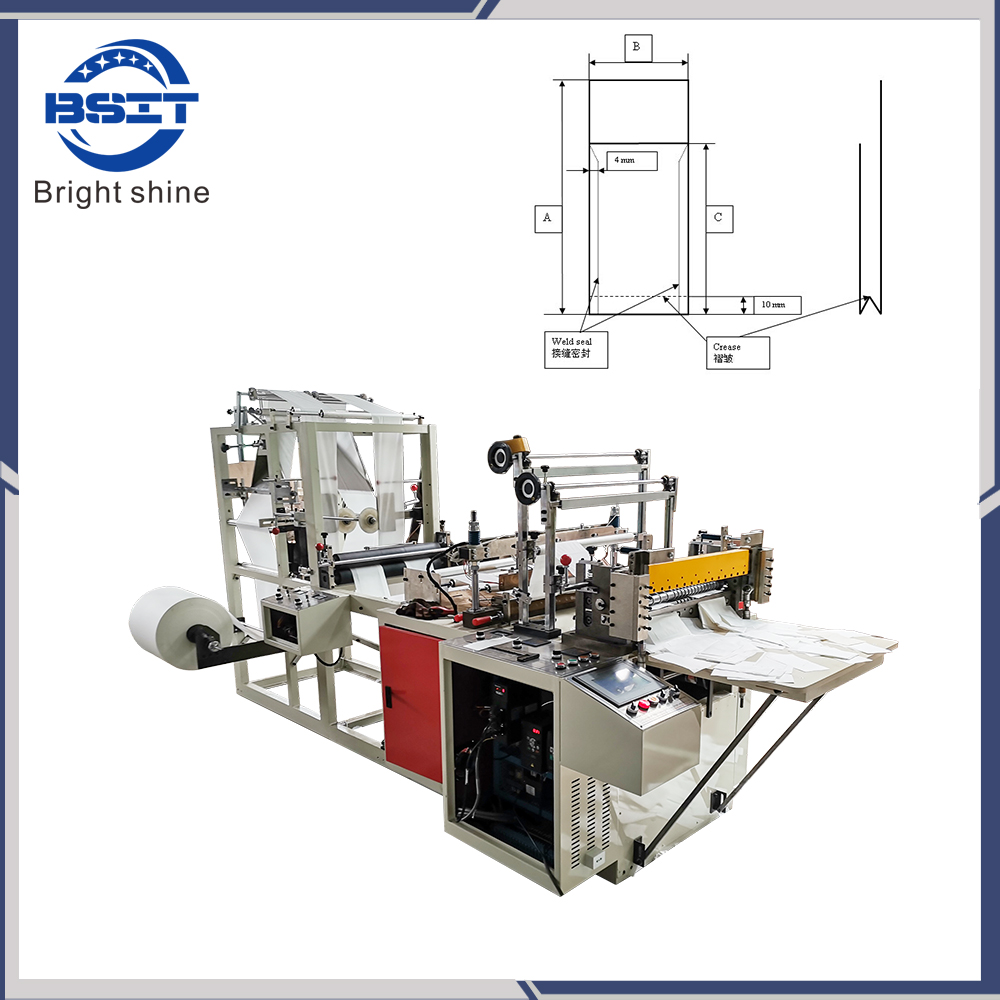

filter bag drawing size as following :

Best Price Factory Supply Filter Paper Bag Making Machine /Tea Bag Sealing Machine

Main Technical Parameter

1	Supply power:	380V/220V50Hz, three-phase four-wire system
2	Total power:	2.5Kw
3	Max. Diameter for filter paper roll	650mm
4	Length for bag-making:	40-485mm
5	Width for bag-marking:	40-800mm
6	Speed for bag-making:	30-150PCS/min
