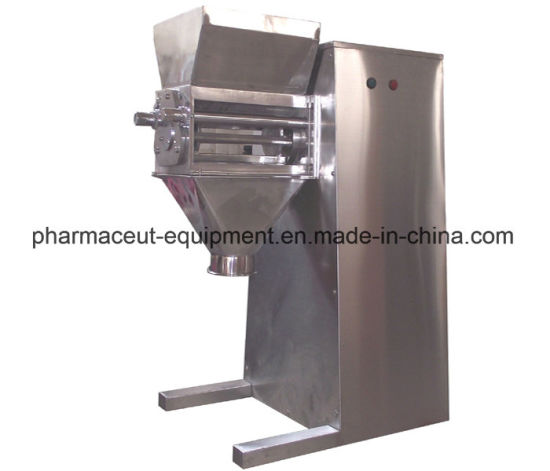

High Quality Lower Price Pharmaceutical Vibrating Granulator Machine (Yk100)
The machine is special equipment. Under the action of barrel through clockwise and counterclockwise rotation, the machine can make mixture of damp powder pass through forcibly sieve to become granule The machine is mainly suitable for granulating granule with different specification in pharmaceutical industry, chemical industry, foodstuff industry etc. After dried by baking, press the granule to all kinds of shaped product. Features:
Attention to order:
- This Swing granulating equipment makes use of the rolling motion of rotating barrel, granulating the wet powder materials into granule by sieve. It also can be used for crushing the agglomerate material into small granules directly
2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. Moreover, it can be used to granulate the coagulated material that is formed during storage or during chemical processing. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products, in other industries. It can be used for granulating such as porcelain and plastic mixtures into forming granules.
3. It is not suitable for solid, fluid medium, paste or pulverizing.
4. Its mesh number of meshed sieve should be prepared by users themselves according to the size of granule.
1. When order the YK Swing Granulating Machine, Client need to supply the materials name
2. When order the YK Swing Granulating Machine, Client need to supply the density of materials.
3. When order the YK Swing Granulating Machine, Client need to supply the capacity per batch or capacity per hour.
4. When order the YK Swing Granulating Machine, Client need to decide which kinds steel for machine-304 stainless steel or 316L stainless steel.
5. Other special requirements.
1) The machine design: The material of extrude granulator is stainless steel SUS304.
2) Output 200-300 kg per hour
2) The machine can move
3) With cap on the container
4) Safety screen
5) Gearing inside the machine should be full closed
7) Sieve 1, 5 mm 1, 0mm, 1, 8mm (stainless steel)
8) discharge sleeve (to connect bin and discharge hole)
9) gearbox should closed Technical parameters:
|Model ||YK100 ||YK160 |
|Capacity (kg/batch) ||30-200 ||200-300 |
|Rotating speed of platen (rpm) ||55 ||65 |
|Power ( kw ) ||1.1 ||2.2 |
|angle of sway (& deg; ) ||360 ||. 360 |
|Dia of platen ( MM ) ||100 ||160 |
|weight(kg) ||180 ||350 |
|Overall dimensions (mm) ||700 × 400 × 1050 ||1000X800X1300 |
