Good Supplier Good Price Fluid Bed Granulator Machine FL-300)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
FL300
Customized:
Non-Customized
Condition:
New
Warranty:
1 Year
Fl60 Fluid-Bed Dryer:
Max Capacity: 30-90kg
Diameter:
1000mm
Content (L):
220
Steam Expenditure Kg/H:
141
Compressed Air Expenditure M3/H:
0.6
Steam Pressure MPa:
0.3-0.6
Working Time:
20-60 Minute
Noise:
<70dB(a)
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422400000
Type:
Preparation Machinery
Finished Dosage Form:
Granules
Precision:
High Precision
Certification:
GMP
Voltage:
380V
Computerized:
Computerized

Product Description

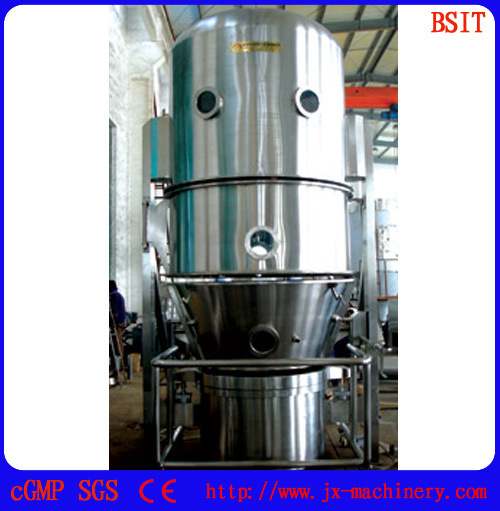

Good Supplier Good Price Fluid Bed Granulator Machine FL-300)

1. SCOPE
The scope of supply of this specification covers Design, Fabrication, Testing, inspection, supply, validation and documentation of fluid-bed dryer
2. Features of equipment:
The machine is suitable for drying powder or granule. In general, its speed is 10 ~ 20 times of oven.
3. General of applications:

The mixing and drying of the equipment can be finished in same equipment. The transfer of mass and heat is quick. Because of operation at negative pressure, there is no flying dust. The equipment has no dead corner. It can clean is fully and without cross pollution. Its heating may use steam, or electric heater. It adopts antistatic filtering material. The lift of filtering bag adopts pneumatic operation. So the operation is safe. It meets the requirements of GMP
In the bed there is stirrer. It avoid agglomeration of damp material and forming channel flow during drying

Technical Parameters:

Machine type		3	5	15	30	60	120	200	300
Container	Content (L)	12	22	45	100	220	420	670	1000
Container	Diameter (mm)	300	400	550	700	1000	1200	1400	1600
Capability	Minimum (kg)	1.5	4	10	15	30	80	100	150
Capability	Maximum (kg)	4.5	6	20	45	90	160	300	450
Fan	Capacity (m 3 )	480	480	900	1500	3000	4500	6000	9000
	Pressure (mmH 2 o)	375	375	480	480	950	950	950	950
	Power (kw)	2.2	2.2	4	5.5	11	18.5	22	30
Steam expenditure Kg/h		15	23	42	70	141	211	282	366
Compressed air expenditure m 3 /min		0.2	0.2	0.3	0.6	0.6	0.6	0.9	0.9
Weight of the main body Kg		250	300	700	900	1100	1300	1500	1800
Steam pressure Mpa		0.3-0.6
Temperature		Adjustable from room temperature to 120
Working time Min		20-60(Depending on the material processed)
Field %		> 99%
Noise dB(A)		< 70(Fan isolated from the main body)
Components: 1. The main body includes: capturing house, injection house, container atomizer house, solution carrier. 2. The auxiliary machine include: fan, sound deadener, control system. 3. Dedustror recoverer (As customers required).
