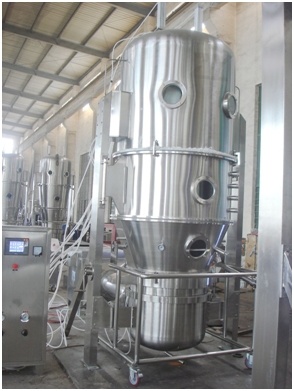

Fluidized Bed Dryer and Granulator (FG)

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union
  • FL
  • Non-Customized
  • New
  • 1 Year
  • Fluidized Bed Dryer and Granulator
  • Dryer and Granulator
  • 30-90kg, (220L)
  • 1000mm
  • 220L
  • 11kw
  • 0.6
  • 0.3-0.6
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 8419390000
  • Preparation Machinery
  • Granules
  • High Precision
  • GMP
  • 380V
  • Computerized
Fluidized Bed Dryer and Granulator (FG)

Applications:
1.Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
2.Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
3.Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.


Principle:
The powder granule the container (fluidization bed) appears the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.


Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)
Features of Equipment:

The Mixing and Drying of The Equipment Can Be Finished in Same Equipment. The Transfer of Mass and Heat Is Quick. Because of Operation at Negative Pressure, There Is No Flying Dust. The Equipment Has No Dead Corner. It Can Clean Is Fully and Without Cross Pollution. Its Heating May Use Steam, or Electric Heater. It Adopts Antistatic Filtering Material. The Lift of Filtering Bag Adopts Pneumatic Operation. So The Operation Is Safe. It Meets The Requirements of GMP


Technical Parameters:
Machine type 3 5 15 30 60 120 200 300
Container Content (L) 12 22 45 100 220 420 670 1000
Diameter (mm) 300 400 550 700 1000 1200 1400 1600
Capability Minimum (kg) 1.5 4 10 15 30 80 100 150
Maximum (kg) 4.5 6 20 45 90 160 300 450
Fan Capacity (m 3 ) 480 480 900 1500 3000 4500 6000 9000
Pressure (mmH 2 o) 375 375 480 480 950 950 950 950
Power (kw) 2.2 2.2 4 5.5 11 18.5 22 30
Steam expenditure Kg/h 15 23 42 70 141 211 282 366
Compressed air expenditure m 3 /min 0.2 0.2 0.3 0.6 0.6 0.6 0.9 0.9
Weight of the main body Kg 250 300 700 900 1100 1300 1500 1800
Steam pressure Mpa 0.3-0.6
Temperature Adjustable from room temperature to 120
Working time Min 20-60(Depending on the material processed)
Field % > 99%
Noise dB(A) < 70(Fan isolated from the main body)
Components:
1. The main body includes: capturing house, injection house, container atomizer house, solution carrier.
2. The auxiliary machine include: fan, sound deadener, control system.
3. Dedustror recoverer (As customers required).

Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)


Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)
Fluidized Bed Dryer and Granulator (FG)
