TMB-700
BSIT
8422303090
Shanghai, China
50sets/Year
T/T, Western Union, Paypal, Money Gram

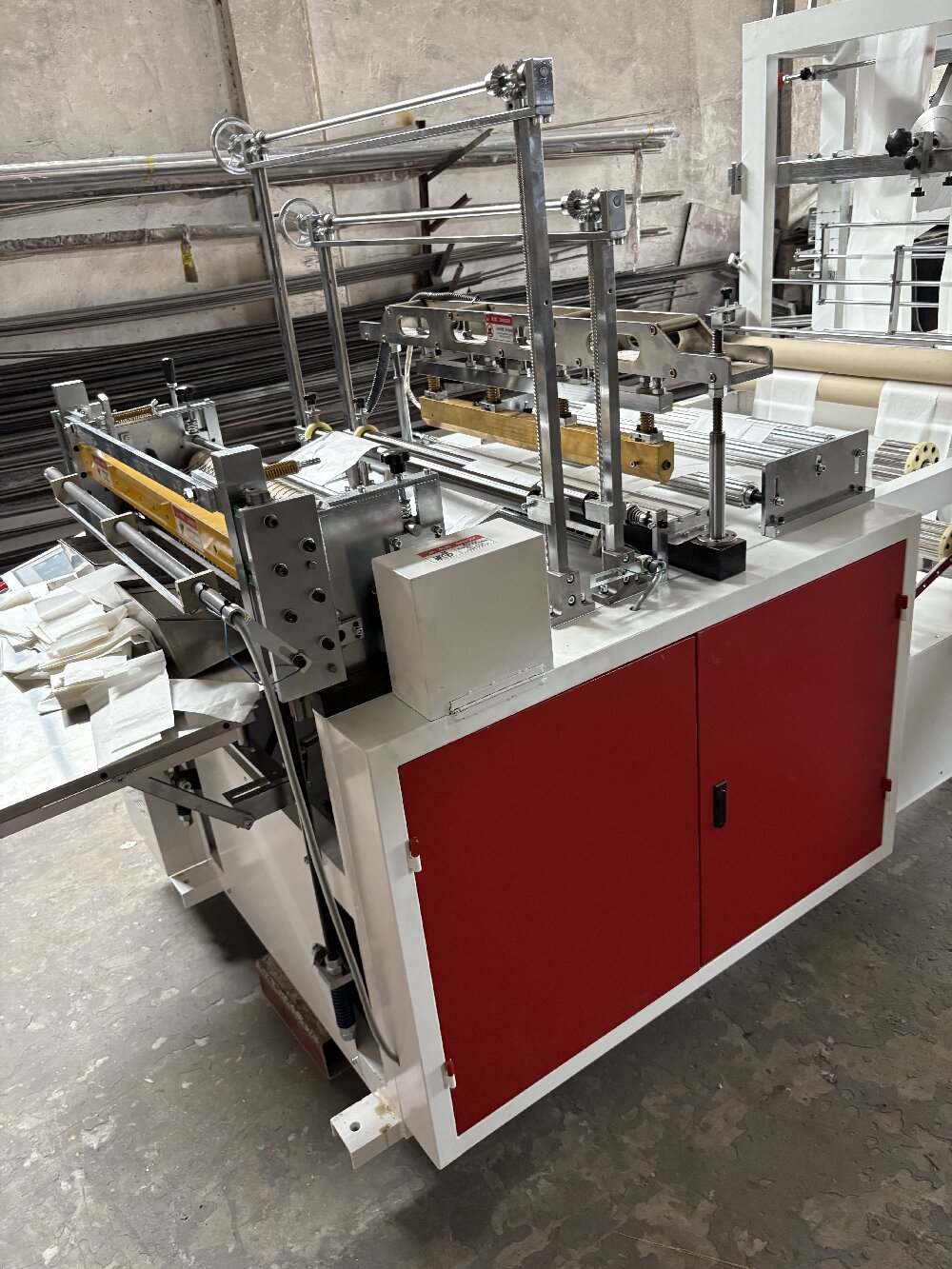

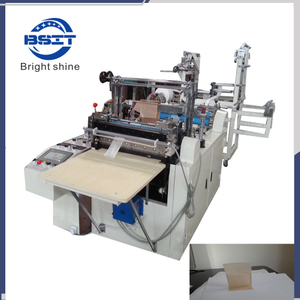

Factory Manufacture Salt Seasoning Packing Machine for Empty Filter Paper Long Tongue Plugged Tea Bag
Main Configuration:
1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.
2)Main motor adopts frequency control
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control
4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control.
5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.
6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel
M folding finished filter bag
filter bag drawing size as following :
Main Technical Parameter
| 1 | Supply power: | 380V/220V50Hz, three-phase four-wire system |
| 2 | Total power: | 2.5Kw |
| 3 | Max. Diameter for filter paper roll | 650mm |
| 4 | Length for bag-making: | 40-485mm |
| 5 | Width for bag-marking: | 40-800mm |
| 6 | Speed for bag-making: | 30-150PCS/min |
