CT-C Series Hot Air Circulation Drying Oven



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
T/T, Money Gram
Model NO.:
CT-C
Customized:
Customized
Condition:
New
Warranty:
1 Year
Name:
Hot Air Circulation Drying Oven
Keywords:
Drying Oven
CT-C-I Model Oven:
100kg/Time
Heating Model:
Electrical Heating
Motor:
Explosion Motor
Materical:
SUS304 /SS316
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422400000
Type:
Preparation Machinery
Finished Dosage Form:
Granules
Precision:
High Precision
Certification:
GMP
Voltage:
380V
Computerized:
Computerized

Product Description

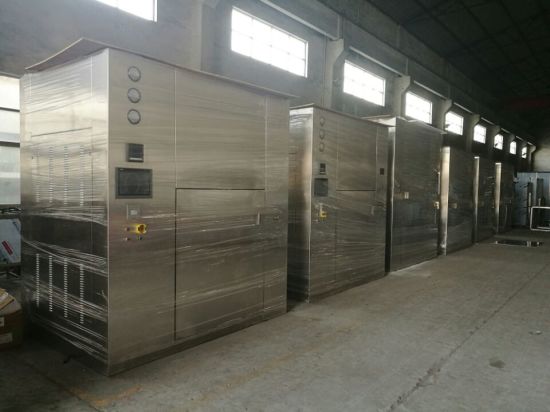

CT-C Series Hot Air Circulation Drying Oven
Application:

It is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. The raw materials can be medicine of raw materials, Chinese traditional medicine, tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.

CT-C Series Hot Air Circulation Drying Oven

Main technical parameters:

1). The hot source can be steam, electricity, far infrared, or steam + electricity.

2). Temperature of operation: 50~140.

3). 50~350 for electricity or far infrared.

4). There are automatic and computer control systems for customer selection.

5). The normal pressure of steam will be 0.02~0.8Mpa.

6). The size of drying tray: 460X640X45.

Technical Parameters:

Parameter Type	Dry amount kg/times	Power(kw)	Consumption of steam (kg/h)	Amount of tray	Overall dimensions (mm)	Amount of trolley	Weight(kg)
CT-I	100	1.1	20	48	2430X1200X2375	2	1200
CT-II	200	1.1	40	96	2430X2200X2433	4	1500
CT-III	300	2.2	60	144	3430X2200X2620	6	2000
CT-IV	400	2.2	80	192	4380X2200X2620	8	2300
CT-C-O	25	0.45	5	8	1200X1000X1750	0	800
CT-C-IA	50	0.45	10	24	1400X1200X2000	1	1000
CT-C-I	100	0.45	18	48	2300X1200X2000	2	1500
CT-C-II	200	0.9	36	96	2300X2200X2000	4	1800
CT-C-IIA	200	0.9	36	96	4460X1200X2290	4	1800
CT-C-III	300	1.35	54	144	3300X2200X2000	6	2200
CT-C-IIIA	300	1.5	54	144	2300X3220X2000	6	2200
CT-C-IV	400	1.8	72	192	4460X2200X2290	8	2800
