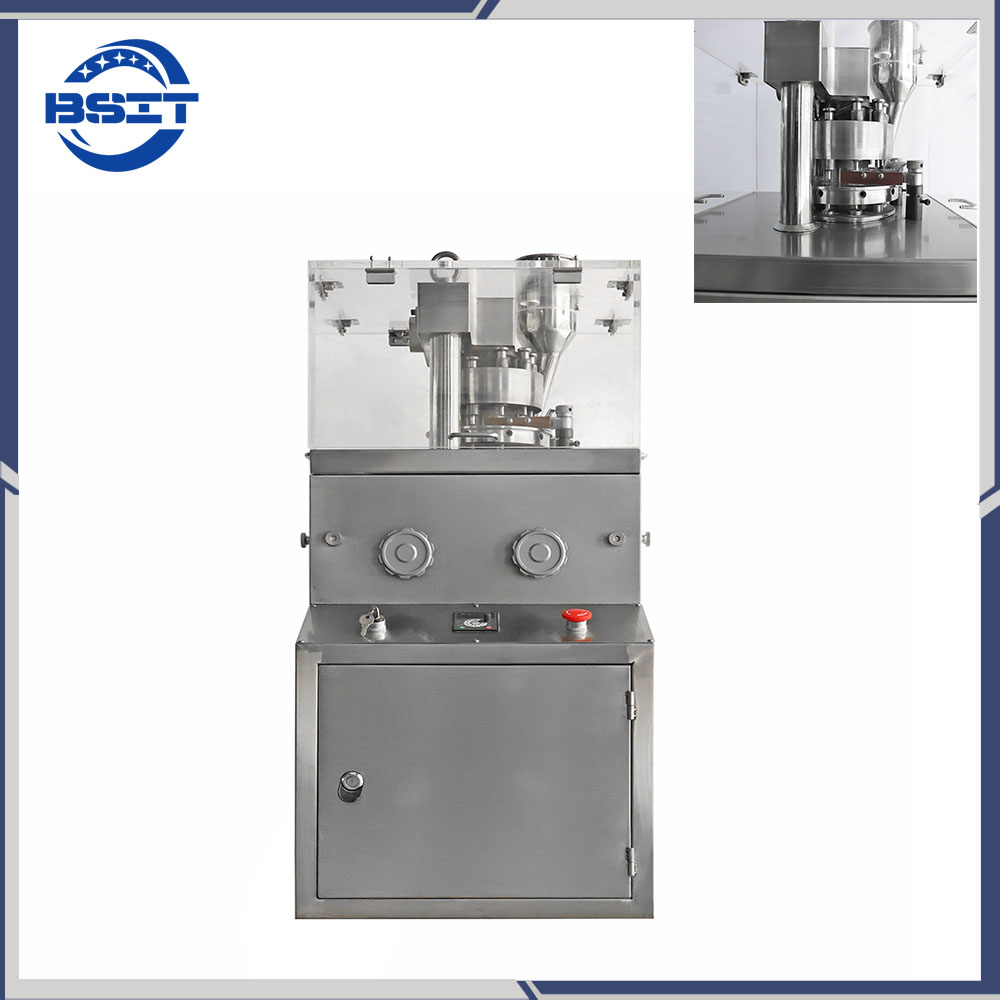

ZP5A Hot selling Small Scaled Production R&D tablet press machine

ZP5A pharmaceutical/food/chemical industry small rotary tablet press Tablet Presses Series includes small R&D single and bi-layer tablet presses,lower speed and middle speed and high speed tablet press as well as medium and large size, single rotary tablet press. (Manual tablet press, Rotary tablet press machine, Tablet compression machine, pill press machine, Tablet compression machine)

Availability:



Inquire Add to Basket

Model:
ZP5A
Brand:
BSIT
Port:
SHANGHAI OR SHENZHEN
Production Capacity:
9,000tablets per hour
Payment Terms:
T/T, Western Union
Min. Order:
1 set
Transport Package:
plywood case

Product Description

ZP5A Hot selling Small Scaled Production R&D tablet press machine

Introduce:

This machine is single pressing and capable of automatic revolution and continuous pressing to press raw material in particle from into tablets. It mainly applies to the tablet production in pharmaceutical industry and also is applicable to chemical, food, electronic and etc.

Main feature:

1.Design of GMP standares

2.Stainless steel SUS304 constructions.

3.High visibility isolated door to prevent corss.

4.Easy removeable part for maintenance.

5. with 1 set of spare part

6. with English Manual user's

mould as optional parts

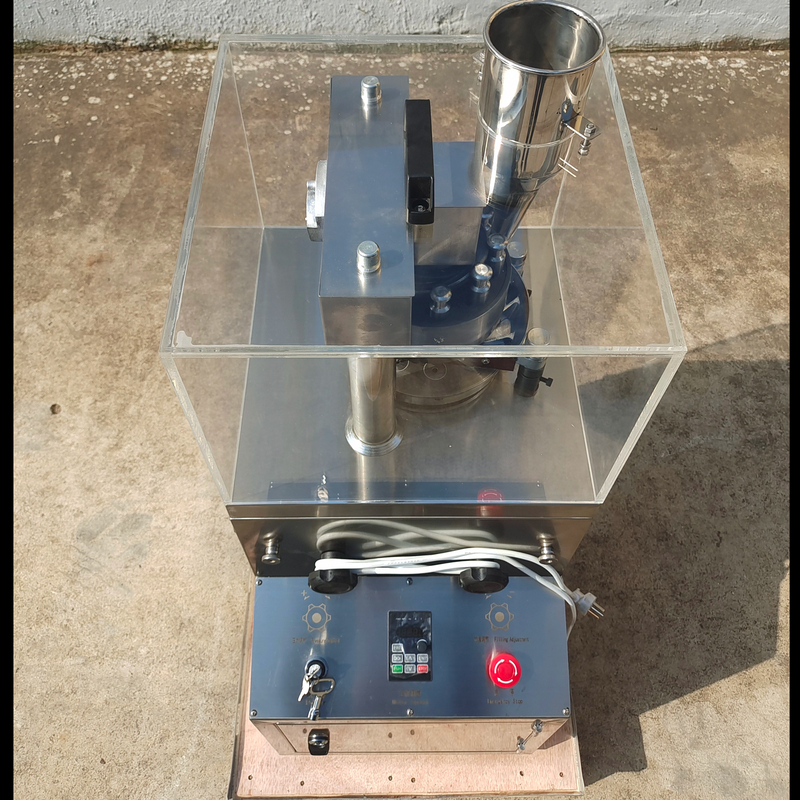

top view for the whole machine

plexiglass Cover on the rotary part.

Main Technical Parameters

Model	ZP-5A
Die No.	5
Max. pressure of tablet(KN)	40
Max. dia. of tablet (mm)	12
Max. thickness of tablet (mm）	6
Max. depth of filling (mm)	15
Max. throughput	9000
Turntable rotation speed (r / min)	0-30
Outline dim.(mm)	480×635×1100
Weight (kg)	260
Motor Power (Kw)	1.5
Voltage (V)	220
