ZP5A pharmaceutical/food/chemical industry small rotary tablet press

ZP5A pharmaceutical/food/chemical industry small rotary tablet press Tablet Presses Series includes small R&D single and bi-layer tablet presses,lower speed and middle speed and high speed tablet press as well as medium and large size, single rotary tablet press. (Rotary Tablet Press, Rotary tablet press machine, Tablet compression machine, Tablet press machine, Tablet Presses, Tablet Pressing machine)

Availability:



Inquire Add to Basket

Model:
ZP5A
Brand:
BSIT
Port:
SHANGHAI OR SHENZHEN
Production Capacity:
9,000tablets per hour
Payment Terms:
T/T, Western Union
Min. Order:
1 set
Transport Package:
plywood case

Product Description

ZP5A pharmaceutical/food/chemical industry small rotary tablet press

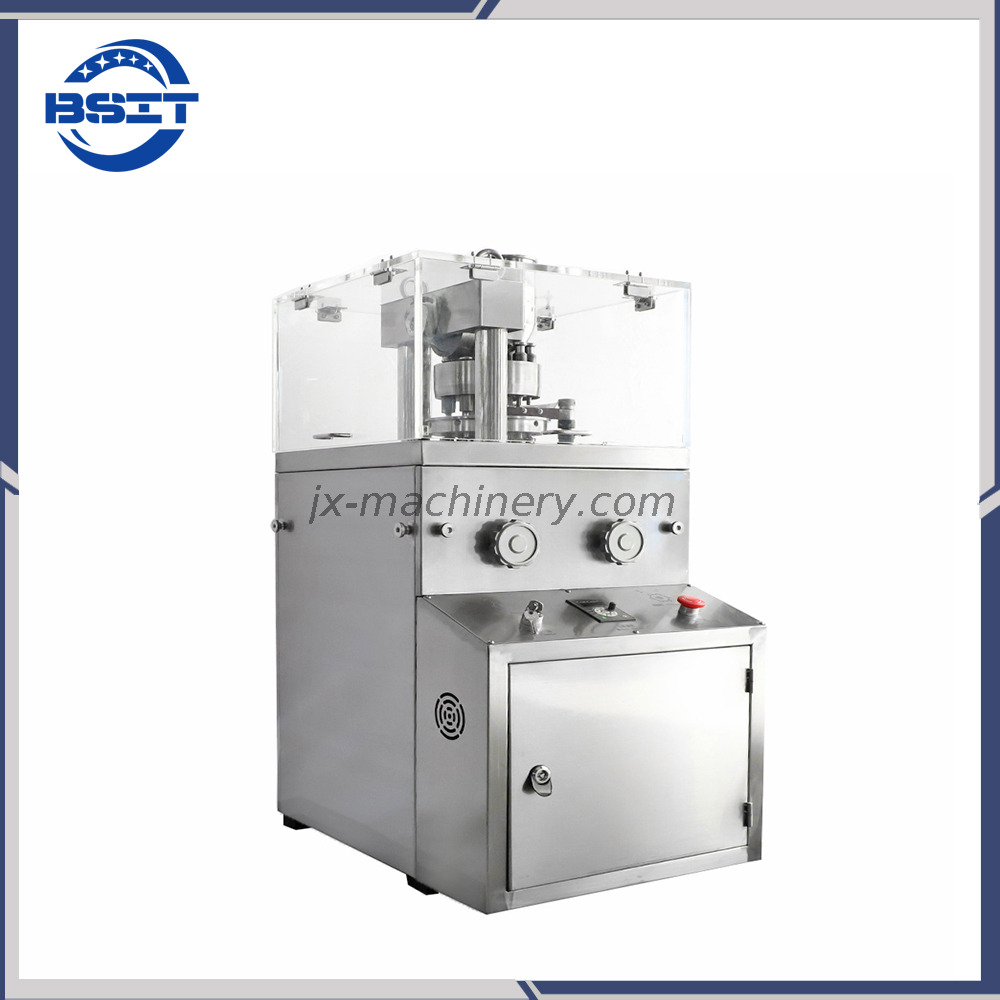

Main introduce: Small Rotary Tablet Press Machine (Lab tablet press) is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets. It is mainly used in the pharmaceutical industry and also the chemical, food, and electronic.

suitable for small capacity and lab factory for testing use

Main feature:

1.Design of GMP standares

2.Stainless steel SUS304 constructions.

3.High visibility isolated door to prevent corss.

4.Easy removeable part for maintenance.

Control Panel

Button name in English/Chinese.

top view for the whole machine

plexiglass Cover on the rotary part.

Main Technical Parameters

Model	ZP-9A
Die No.	5
Max. pressure of tablet(KN)	40
Max. dia. of tablet (mm)	12
Max. thickness of tablet (mm）	6
Max. depth of filling (mm)	15
Max. throughput	9000
Turntable rotation speed (r / min)	0-30
Outline dim.(mm)	480×635×1100
Weight (kg)	260
Motor Power (Kw)	1.5
Voltage (V)	220
