Zp Series Rotary Tablet Press with 7 punches

Tablet Presses Series includes small R&D single and bi-layer tablet presses, as well as medium and large size, single rotary tablet press. (Rotary Tablet Press, Rotary tablet press machine, Tablet compression machine, Tablet press machine, Tablet Presses, Tablet Pressing machine)

Availability:



Inquire Add to Basket

Model:
ZP7A
Brand:
BSIT
Port:
SHANGHAI OR SHENZHEN
Production Capacity:
12600 tablets per hour
Payment Terms:
T/T, Western Union
Min. Order:
1 set
Transport Package:
plywood case

Product Description

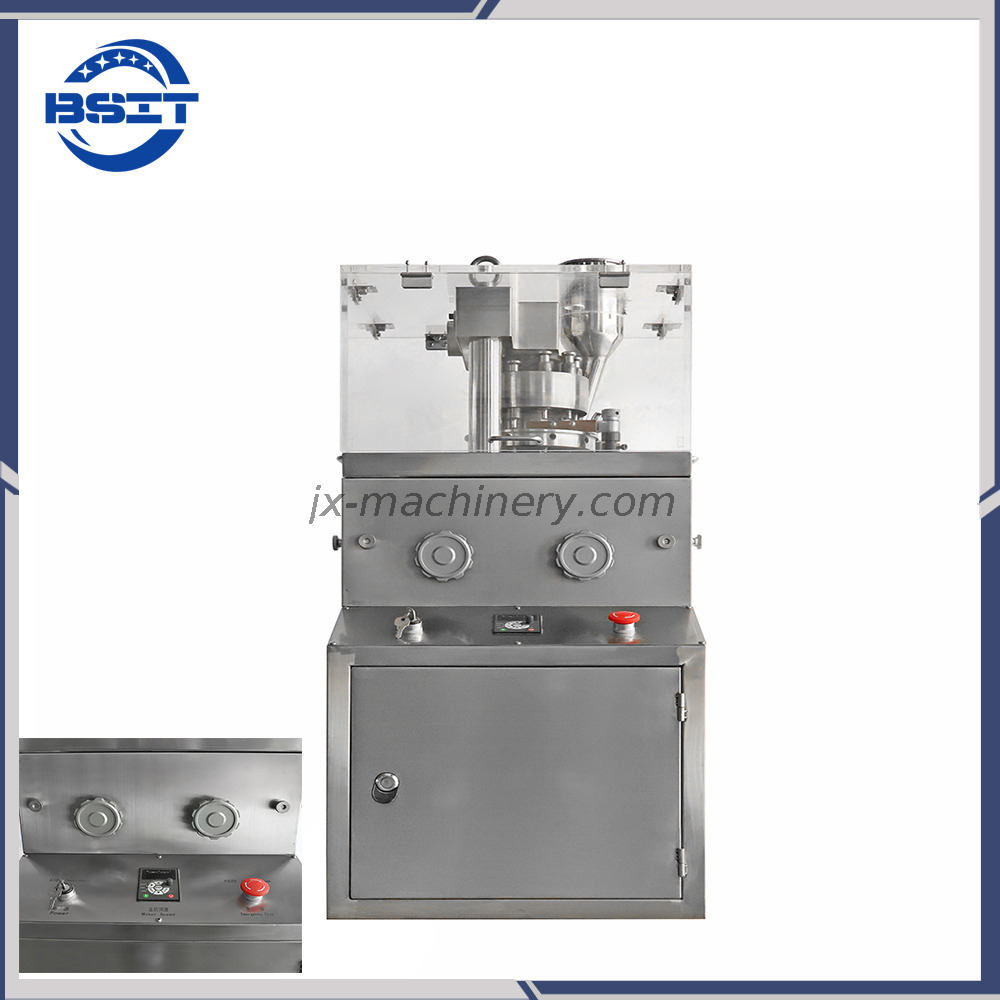

ZP-7A professional automatic medicine pill press machine

Small Rotary Tablet Press Machine (Pill Press) is a small automatic rotary tablet press for pressing various kinds of different shape tablets and plain tablets. It is mainly used in the pharmaceutical,the chemical, food, and electronic industry.

Characteristics

1.Design of GMP

2.Stainless steel constructions.

3.High visibility isolated door to prevent corss.

4.Easity removeable part for maintenance.

Control Panel

Button name in English/Chinese.

top view for the whole machine

plexiglass Cover on the rotary part.

Main Technical Parameters

Name	ZP5	ZP7	ZP9
Dies(sets)	5	7	9
Max. pressure( kn)	40
Max. diameter of tablet( mm)	12(Special 14)
Max. filling Depth (mm)	15
Max. thickness of tablet ( mm)	6
Max production capacity (pc/h)	9000	12, 600	16, 200
Turret speed (r/min)	32
Motor Power (KW)	1.5
Outline dimension (LXWXH)	480× 630× 1100
Net weight (kg)	260kg
