ZP9A
BSIT
SHANGHAI OR SHENZHEN
9,000/12,600/16,200 tablets per hour
T/T, Western Union
1 set
plywood case

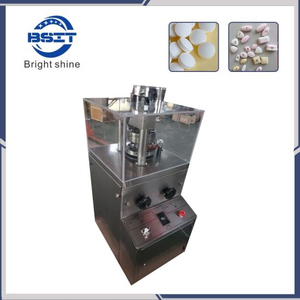

ZP-9A Full Automatic Rotary Pill Presser Tablet Press Machine with power:1.5Kw
Introduce:
ZP9A Small Rotary Tablet Press Machine (Pill Press) is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets. It is mainly used in the pharmaceutical industry and also the chemical, food, and electronic.
Characteristics：
Design of GMP
Stainless steel constructions.
High visibility isolated door to prevent corss.
Easity removeable part for maintenance.
Main Technical Parameters
Model | ZP-9A |
Die No. | 9 |
Max. pressure of tablet(KN) | 40 |
Max. dia. of tablet (mm) | 12 |
Max. thickness of tablet (mm） | 6 |
Max. depth of filling (mm) | 15 |
Max. throughput (10000 / h) | 1.62 |
The work dia. of turntable (mm) | 200 |
Turntable rotation speed (r / min) | 0-30 |
Dia. of mode (mm) | 26 |
Height of mold (mm) | 22 |
Dia. of upper and lower punch (mm) | 22 |
Length of upper and lower punch (mm) | 115 |
Outline dim.(mm) | 480×635×1100 |
Weight (kg) | 180 |
Motor Power (Kw) | 1.5 |
Voltage (V) | 220 |
Wooden case package:
ZP-9A Full Automatic Rotary Pill Presser Tablet Press Machine with power:1.5Kw
Introduce:
ZP9A Small Rotary Tablet Press Machine (Pill Press) is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets. It is mainly used in the pharmaceutical industry and also the chemical, food, and electronic.
Characteristics：
Design of GMP
Stainless steel constructions.
High visibility isolated door to prevent corss.
Easity removeable part for maintenance.
Main Technical Parameters
Model | ZP-9A |
Die No. | 9 |
Max. pressure of tablet(KN) | 40 |
Max. dia. of tablet (mm) | 12 |
Max. thickness of tablet (mm） | 6 |
Max. depth of filling (mm) | 15 |
Max. throughput (10000 / h) | 1.62 |
The work dia. of turntable (mm) | 200 |
Turntable rotation speed (r / min) | 0-30 |
Dia. of mode (mm) | 26 |
Height of mold (mm) | 22 |
Dia. of upper and lower punch (mm) | 22 |
Length of upper and lower punch (mm) | 115 |
Outline dim.(mm) | 480×635×1100 |
Weight (kg) | 180 |
Motor Power (Kw) | 1.5 |
Voltage (V) | 220 |
Wooden case package:
