ZP-5A professional automatic medicine pill press machine

Tablet Presses Series includes small R&D single and bi-layer tablet presses, as well as medium and large size, single rotary tablet press. (Rotary Tablet Press, Rotary tablet press machine, Tablet compression machine, Tablet press machine, Tablet Presses, Tablet Pressing machine)
Availability:
  • ZP5A
  • BSIT
  • SHANGHAI OR SHENZHEN
  • 9,000tablets per hour
  • T/T, Western Union
  • 1 set
  • plywood case


QQ图片20211126105529

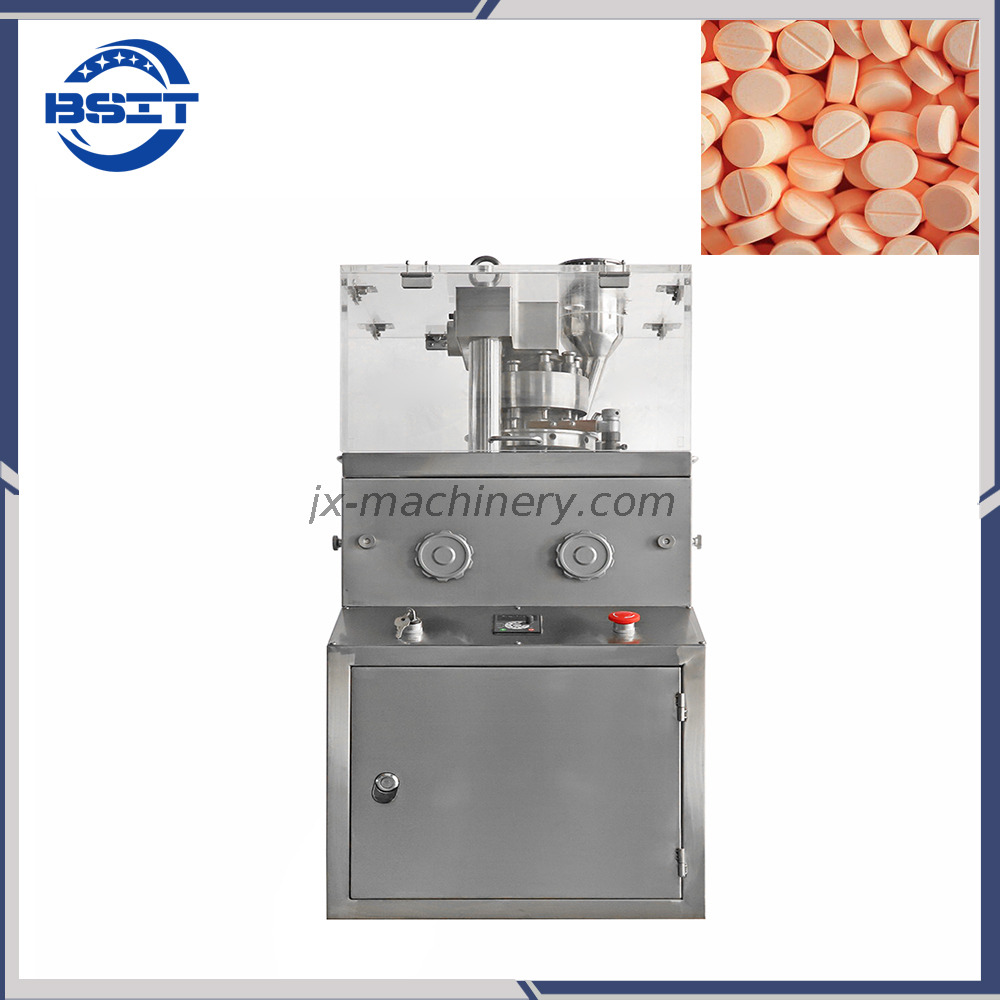

ZP-5A professional automatic medicine pill press machine


Small Rotary Tablet Press Machine (Pill Press) is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets. It is mainly used in the pharmaceutical industry and also the chemical, food, and electronic.

Characteristics

1.Design of GMP

2.Stainless steel constructions.

3.High visibility isolated door to prevent corss.

4.Easity removeable part for maintenance.

QQ图片20211126105457

Control Panel

Button name in English/Chinese.


QQ图片20211126105516

top view for the whole machine

plexiglass Cover on the rotary part.


Main Technical Parameters

Model

ZP-9A

Die No.

5

Max. pressure of tablet(KN)

40

Max. dia. of tablet (mm)

12

Max. thickness of tablet (mm)

6

Max. depth of filling (mm)

15

Max. throughput

9000

Turntable rotation speed (r / min)

0-30

Outline dim.(mm)

480×635×1100

Weight (kg)

260

Motor Power (Kw)

1.5

Voltage (V)

220


Wooden case package:

QQ图片20211103081905
