BGB 5F High-Efficient Pill/ Candy/Sugar/Tablet/Film Coating Machine
Application:
BGB is high-efficiency Film-coating machine, it is energy saving, safe, clean, computer-controlled and easy-to-use mechatronics equipment which is used for coating organic film, water soluble film, sow and release film in traditional Chinese and Western tablets and pills (including small pills, water-bindered, and granule, Featuring mechatronis and conforms to the requirement of GMP . All the coating operation is carried out under an airtight condition and is free from dust emission and liquid splash.
Working priciple:
The tablet cores to be film-coated make continuous complicated or-bital motion within a closed clean rotating drum under the action of a stream-line guide plate. Controlled by computer and according to the optimum technological parameters, they are automatically sprayed with film-coating medium, while hot air is supplied under a negative pressure controlled, the hot air pentrates through the tablet corelayers and is discharged from below the drum, so that the film-coating medium sprayed on the surface of tablet cores may dry rapidly and evenly, thereby forming a layer of solid, compact, neat and smooth surface film.

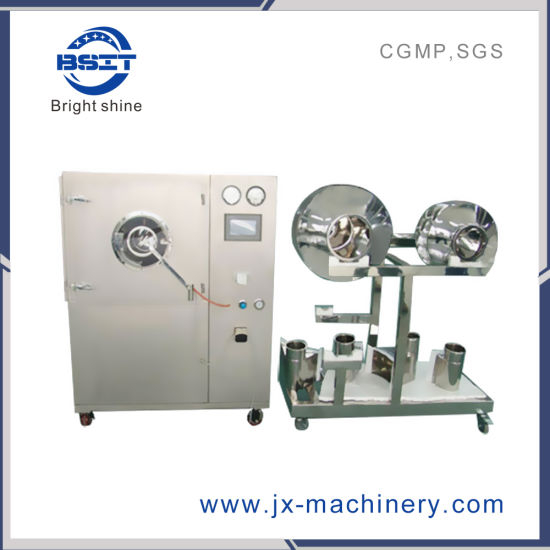

Main machine photo with 3 interchangable pots
Drum sample :
Electrica cabinet
Spray gun device
This machine made of parts as following list
| 1) 2) 3) 4) 5) 6) 7) | Main machine (Including heat exchanger, AHU) Peristaltic pump 1 piece spray gun+ rack Materials discharge device Coating drum rack & coating drums Magnetic stirrer Small slurry mixing device | 5F type OEM10132-313 Drums:5L,1L | 1set 1set 1set 1set 1set 1set |
Features:
Function of integrated design
One machine with three change drums
It is the best model for exploring coating technology in pharmaceutical laboratory.
The coating drum can be replaced according to the coating technology batch
Replacement of the coating drum is convenient and fast.
Control and display the negative pressure in coating pan
Display air pressure of the supply air of HEPA filter
Control and display the temperature
Control and adjust the atomization surface of slurry
Control the program of spray gun and atomization
Design of gun cleaning and anti-blocking
Design the functions of memory and printing
Designed the functions of impulse and dust removing
Technical specifications :
| Model | BGB-3F | BGB-5F | BGB-10F |
| Production capacity (kg/run) | 3 | 5 | 10 |
| Three drums for one machine(kg , when bulk density is 1) | 1/3 | 1/3/5 | 3/5/10 |
| Diameter of drum(mm) | 300/380/480 | 300/380/480 | 300/380/480 |
| Speed-adjusting range of film coating drum (rpm) | 6-30 | 6-30 | 6-30 |
| Motor power of main machine (kW) | 0.37 | 0.37 | 0.37 |
| Temperature-regulating range of hot air (° C ) | Normal temperature ~ 80 ° C | Normal temperature ~ 80 ° C | Normal temperature ~ 80 ° C |
| Filtration accuracy of hot air ( mm) | 0.5 mm (100000 grade) | 0.5 mm (100000 grade) | 0.5 mm (100000 grade) |
| Motor power of air heater (kW) | 0.25 | 0.25 | 0.25 |
| Power of air electric heating(kW) | 5 | 5 | 5 |
| Motor power of exhaust machine (kW) | 1.1 | 1.1 | 1.1 |
| Overall dimension of main machine (mm) | 1100×750×1500 | 1250×900×1680 | 1250×900×1680 |
| Weight of main machine (kg) | 380 | 380 | 400 |
| Power supply:3-phase 5-wire | 400V 20A | |
| Clean air | Pressure Air consumption | >0.4 MPa ≤0.6 m3/min. |
| Water supply:pressure | > 0.15MPa | |
Sample:
