ZP5/7/9 Rotary Pharmaceutical Tablet Press Machine with CE certificate

Availability:
  • ZP5/7/9

  • BSIT

  • 8422

  • Shanghai, China

  • 20 Sets/Month

  • T/T, Western Union, Paypal, Money Gram

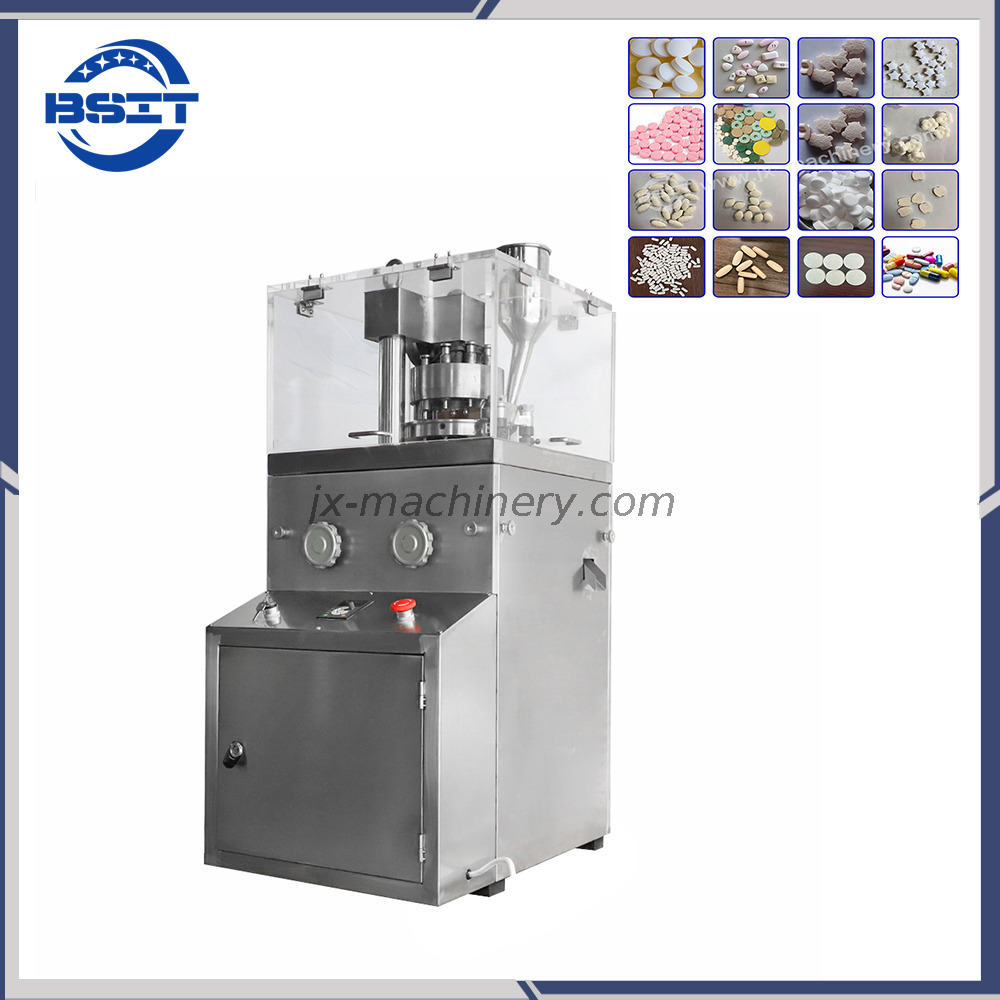

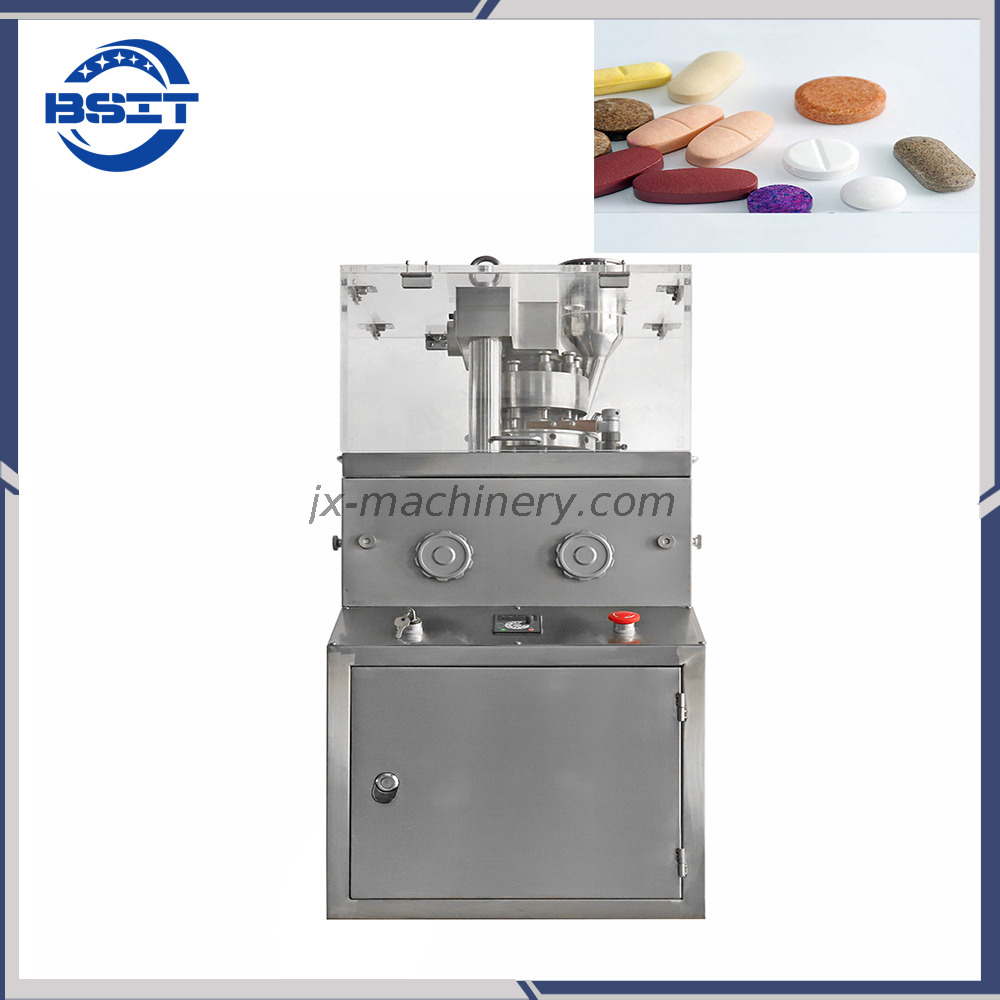

        ZP5/7/9  Rotary Pharmaceutical Tablet Press Machine with CE certificate


Tags: Tablet press, Tablet making machine, Pill making machine , Press machine, pressing machine, punching machine, Tablet machine, Rotary tablet press machine, Single punch tablet press , Mini tablet press ,lab tablet press,pharmaceutical equipment, pharmaceutical machine,pharmaceutical machinery,tablet presser,Tablet pressing machine,Punch tablet press,Pill press machine ,Powder tablet press ,Tablet compression machine, Machine press, Candy tablet press,  Automatic tablet press

Big power tablet press 2.2kw

Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine

Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine
Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine
Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine

Small power 1.5KW tablet press-01

Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine

Small power 1.5KW tablet press-02
Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine

This machine is single pressing and capable of automatic revolution and continuous pressing to press raw material in particle from into tablets. It mainly applies to the tablet production in pharmaceutical industry and also is applicable to chemical, food, electronic and etc.
Feature:

1) It is a single-sided press machine.
2) It continues automatic working for pressing powder raw materials into tablets. It is mainly used in pharmaceutical, chemical, food and electronic industries.
3) The cover of ZP 5A rotary tablet press machine is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution.
4) ZP 5A punching automatic rotary tablet press machine meets GMP requirement.
5) Easy cleaning and maintenance.
6) The speed is adjustable.
7) An overload protection unit is included in the system to avoid the damage of the punches and apparatus. When overloaded, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running.


tablet mould  as following:

Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine

tablet sample:

Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine


 Technical Parameter
Name ZP5 ZP7 ZP9
Dies(sets) 5 7 9
Max. pressure( kn) 40
Max. diameter of tablet( mm) 12(Special 14)
Max. filling Depth   (mm) 15
Max. thickness of tablet  ( mm) 6
Max production capacity (pc/h) 9000 12, 600 16, 200
Turret speed (r/min) 32
Motor Power (KW) 1.5
Outline dimension (LXWXH) 480× 630× 1100
Net weight (kg) 260kg


Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine
Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine
Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine
Automatic Model Rotary Pharmaceutical Tablet Press Machine Zp5a/Effervescent Tablet Press Machine
