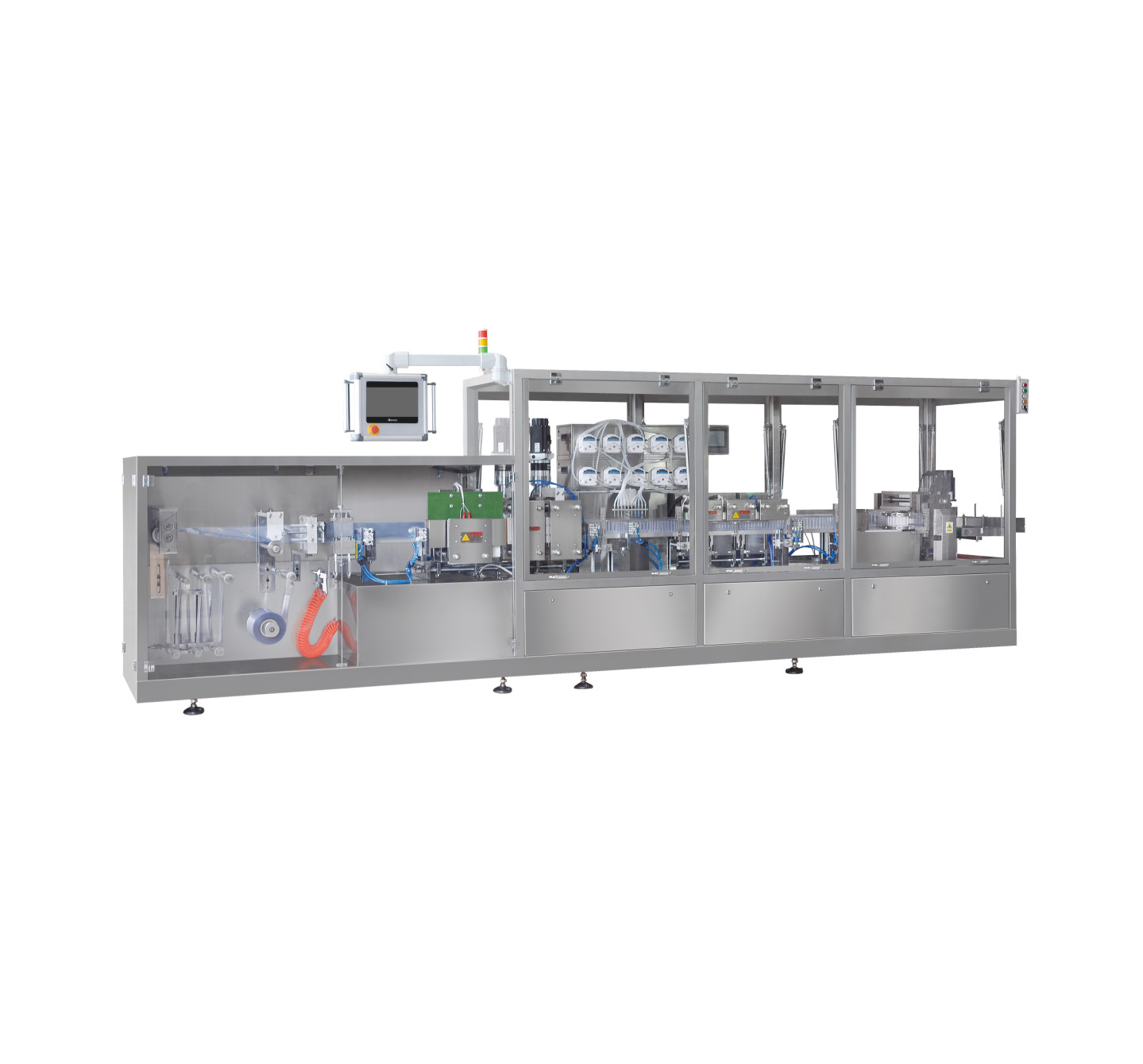

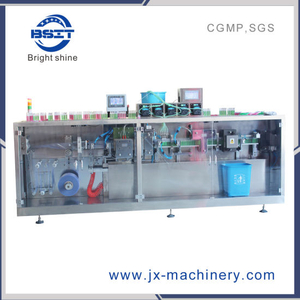

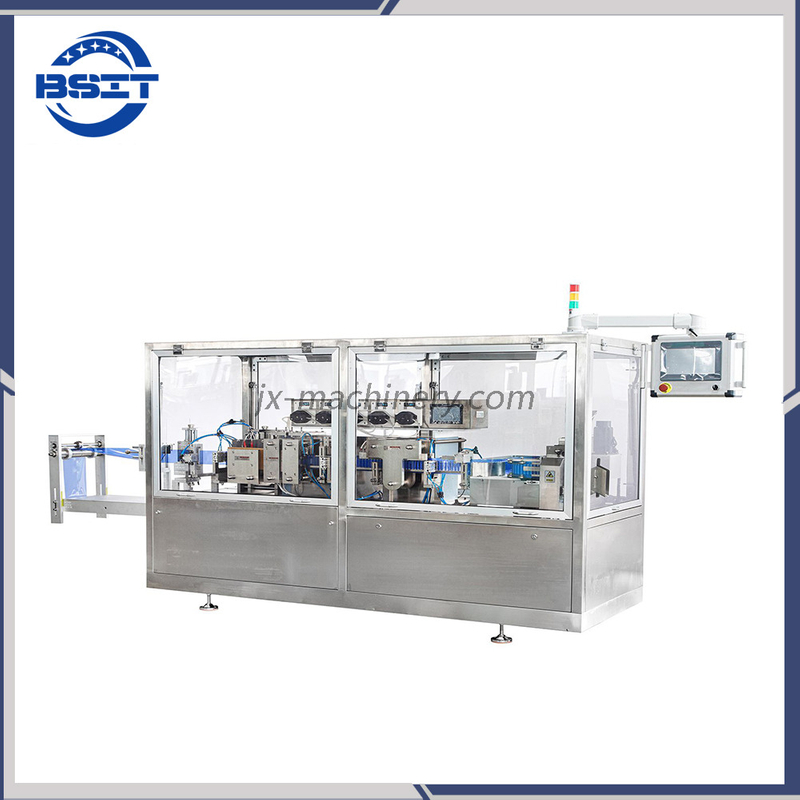

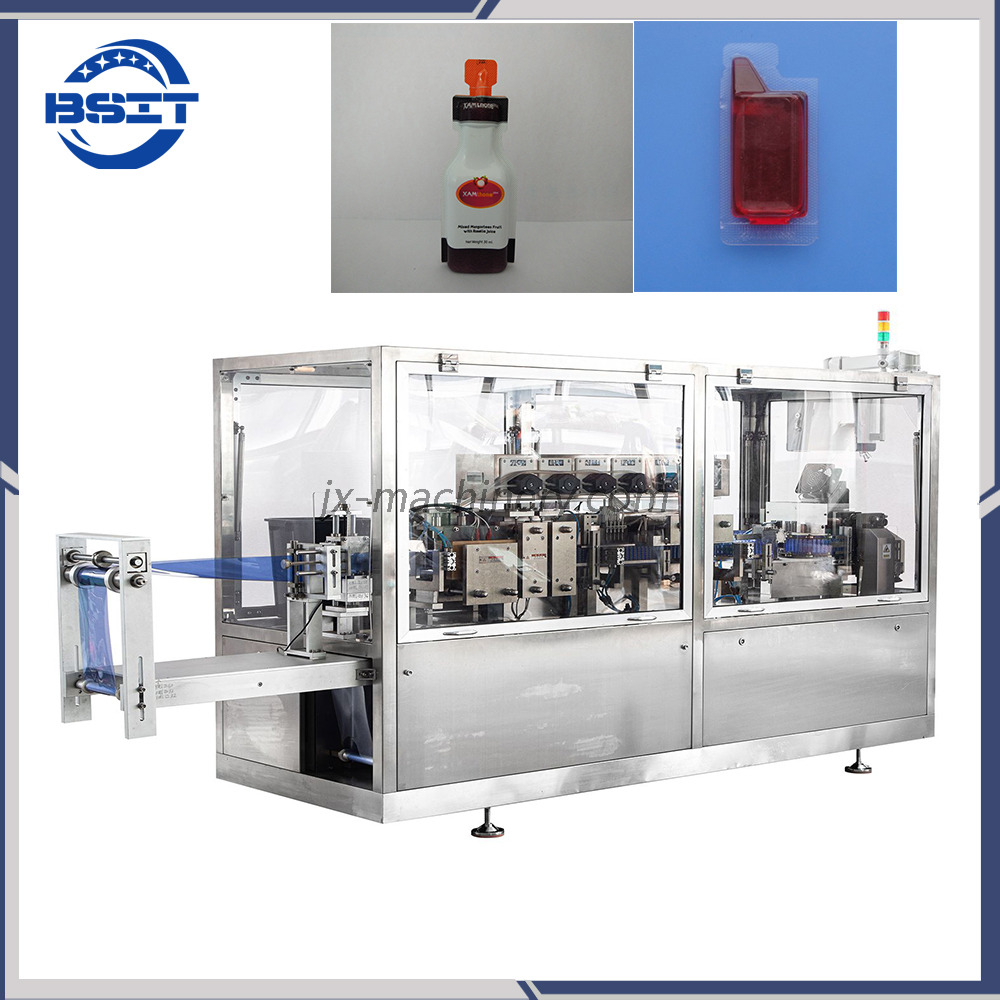

Small Plastic Ampoule Filling Sealing Machine for pharmaceutical health product with BSIT brand

BSIT Plastic Ampoule Form Fill Seal Machine is a versatile and efficient solution for filling various types of liquids in different industries, such as lotions, nursing liquids, oral liquids, detergents, eye drops, nutrient solutions, beverages, edible oils, lubricating oils, pesticides, medicines, perfumes, and specialty chemicals.

Availability:



Inquire Add to Basket

Model:
BSG-240-5A
Brand:
BSIT
Port:
Shanghai seaport
Production Capacity:
15-25 pcs/min
Payment Terms:
T/T
Min. Order:
1 set
Transport Package:
Wooden Case

Product Description

Plastic Ampoule Filling Sealing Machine

Introduce

Plastic Ampoule Form Fill Seal Machine is a plastic bottle thermoforming filling and sealing device. It is applicable for batch filling operations in various industries such as pharmaceuticals, pesticides, cosmetics, food and beverages, and nutrition. Specifically designed for handling liquid and cream substances, it finds extensive use in filling oral liquids, liquid pesticides and fertilizers, e-liquids, liquid and cream cosmetics, edible oils, beverages, and liquid health care products, among others.、

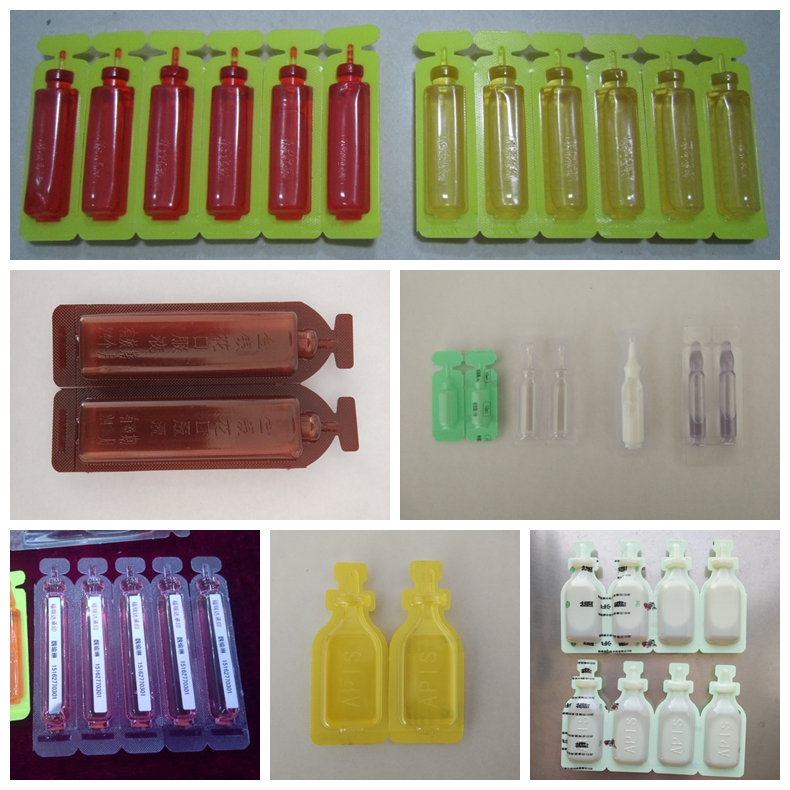

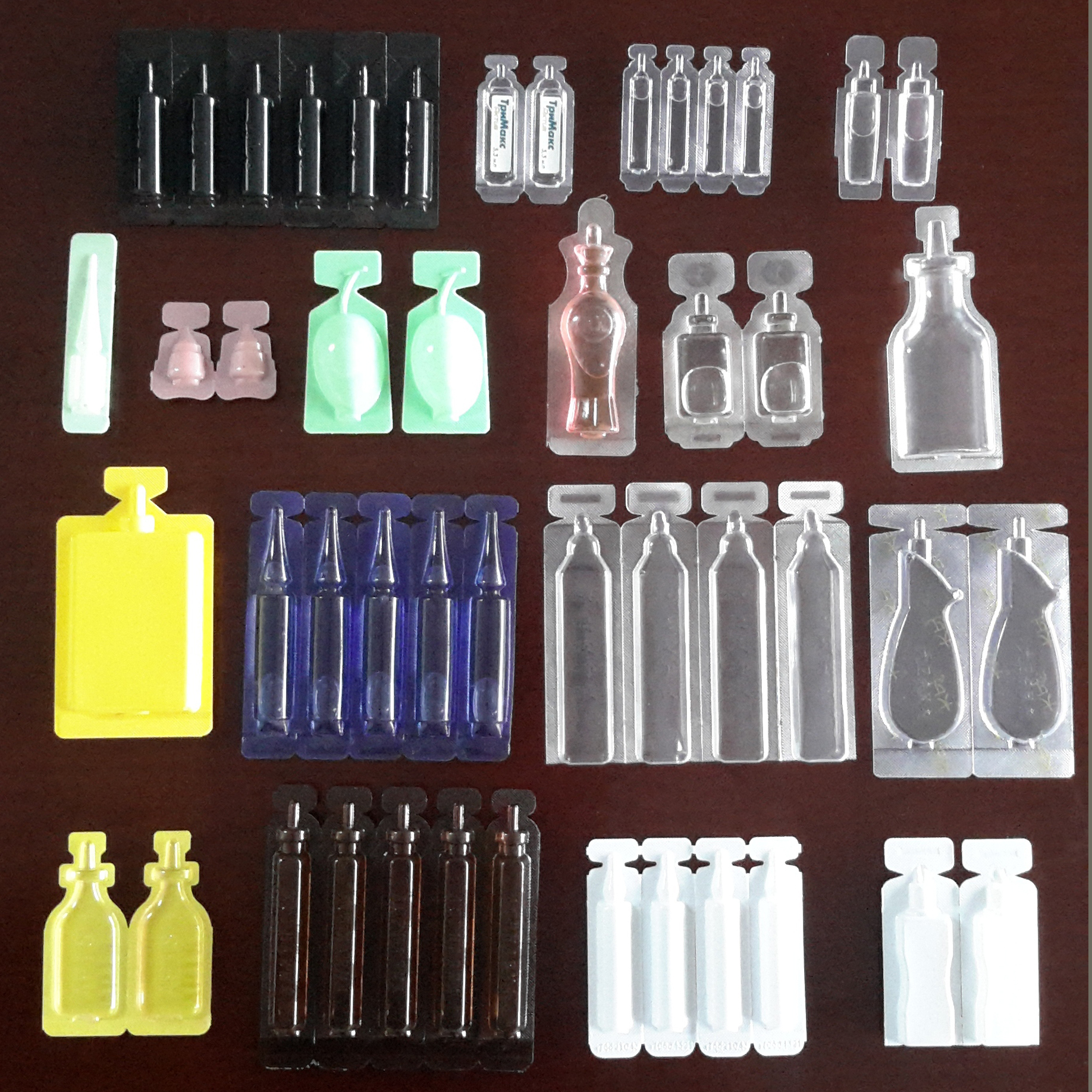

Application

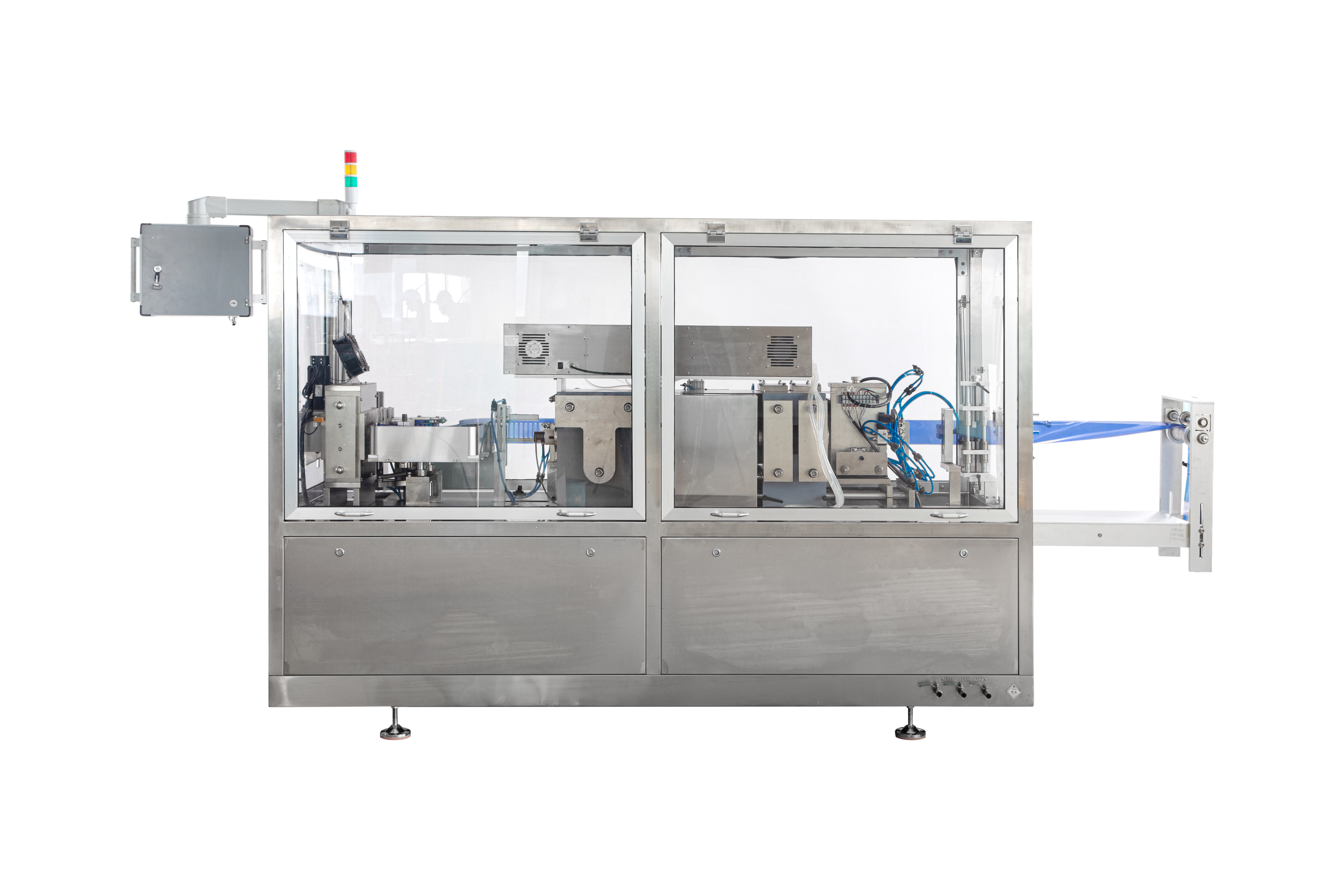

0J9A7486 拷贝

The machine is equipped with an HC high-speed and high-precision motion controller. Servo motors are employed to control the film drawing process, ensuring easier and more accurate adjustments.

Through programmed operations, this machine can automatically complete the following procedures: PVC roller unwinding, PVC preheating, bottle forming, filling, end sealing, punching, and cutting.

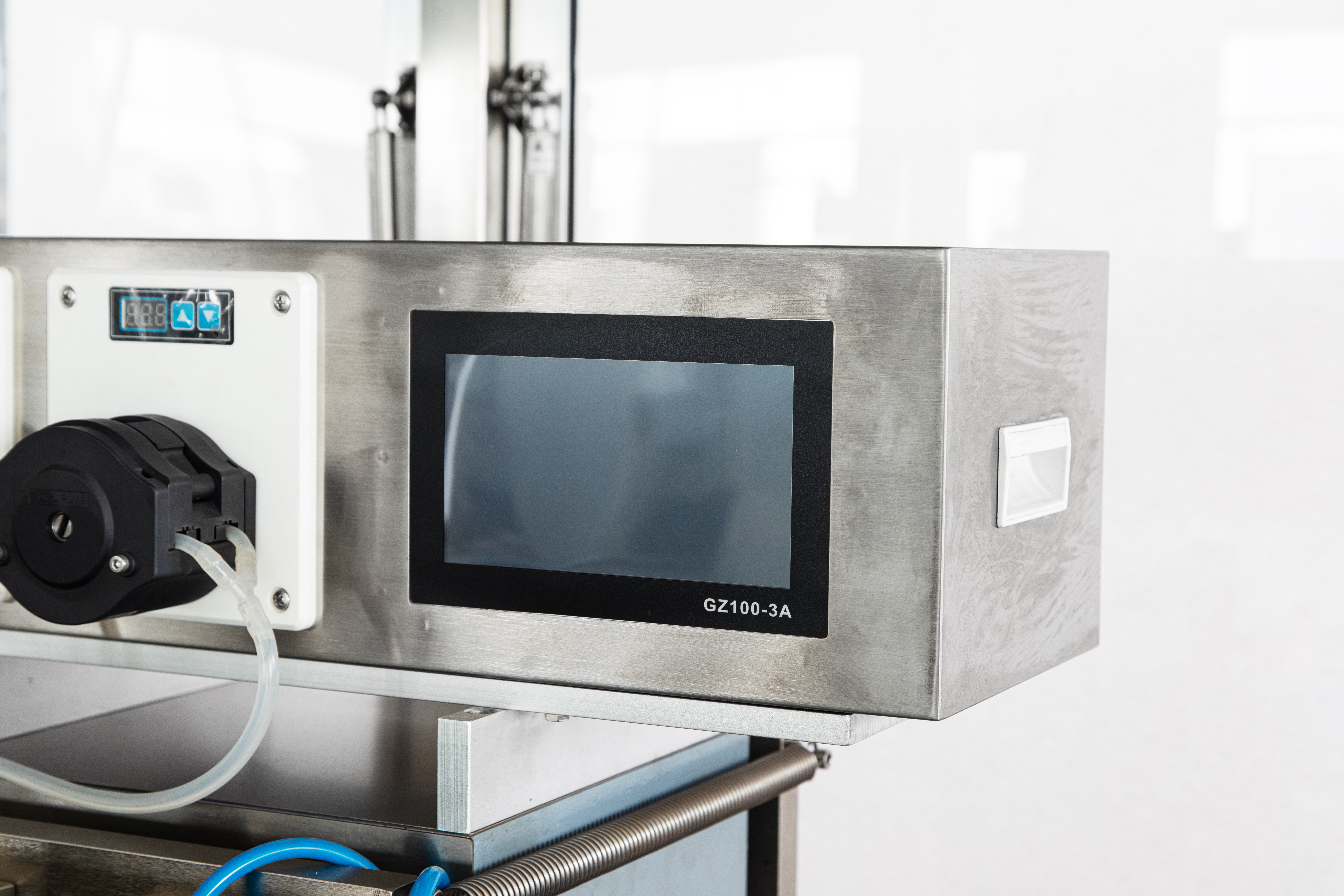

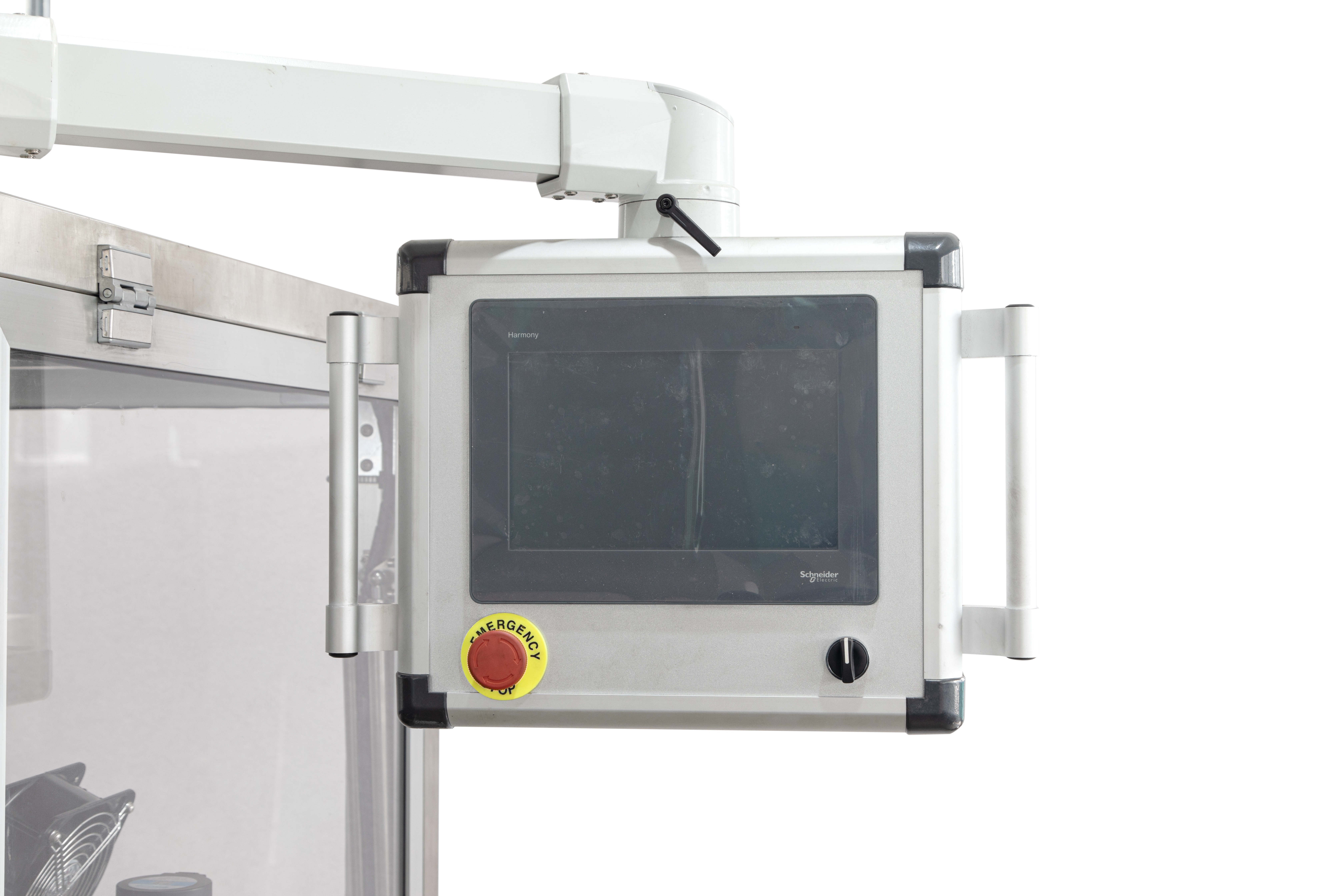

The machine features a user-friendly human-machine interface, making its operation straightforward and uncomplicated.

The filling head is designed to be leak-proof, preventing foam formation and overflows during the filling process.

All parts that come into contact with the filled liquid are made of SUS316L stainless steel, meeting GMP (Good Manufacturing Practice) standards.

Depending on the specific filling materials, the filling system can be configured with either a peristaltic pump or a rotary valve pump, guaranteeing precise measurement and minimal filling variation.

This model is capable of producing stand-up bottles and is equipped with an eye-mark tracking system, enhancing the aesthetic appeal of the final products.

The cutter is independently controlled by dual servo motors, allowing for flexible and customizable cutting adjustments.

Photos

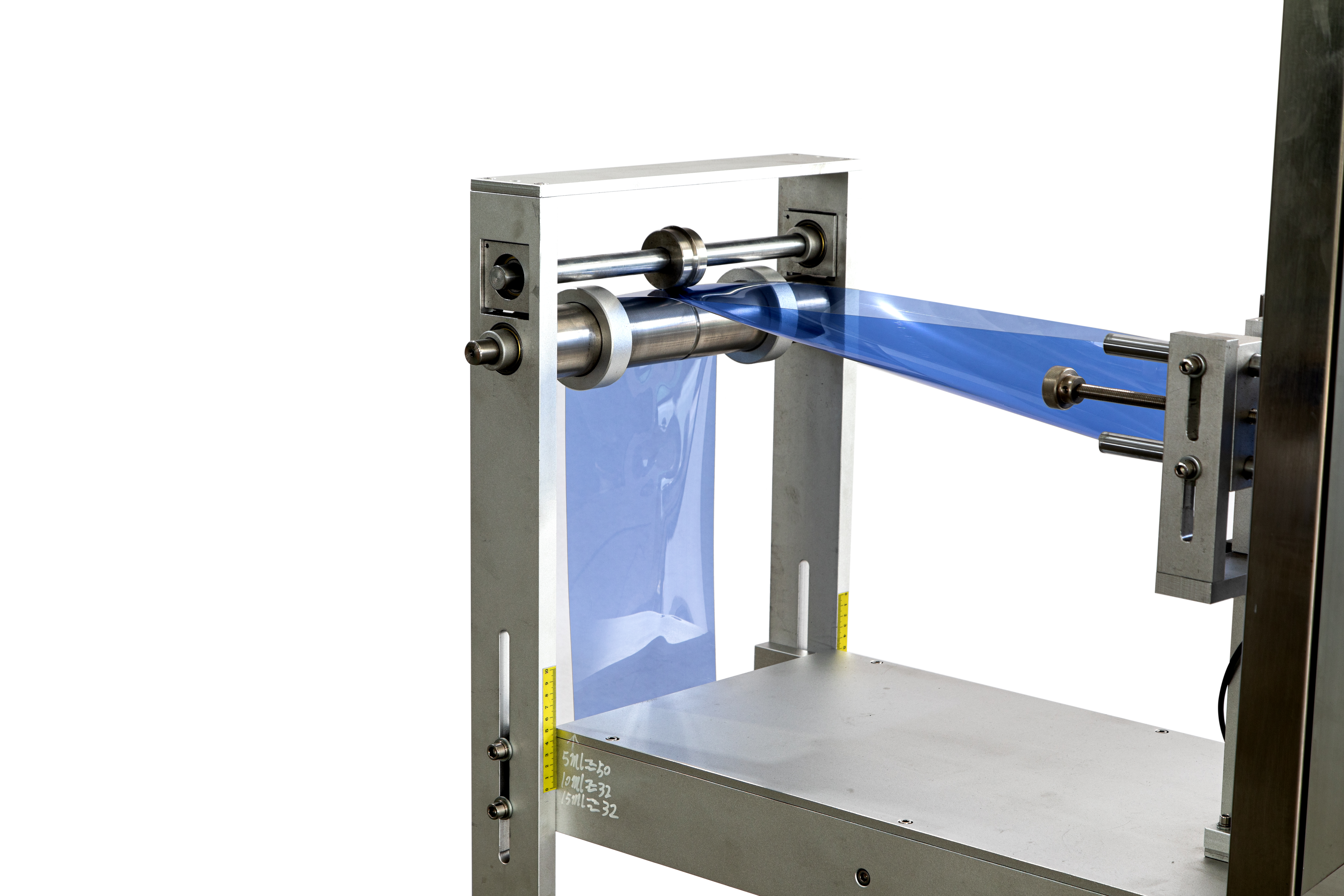

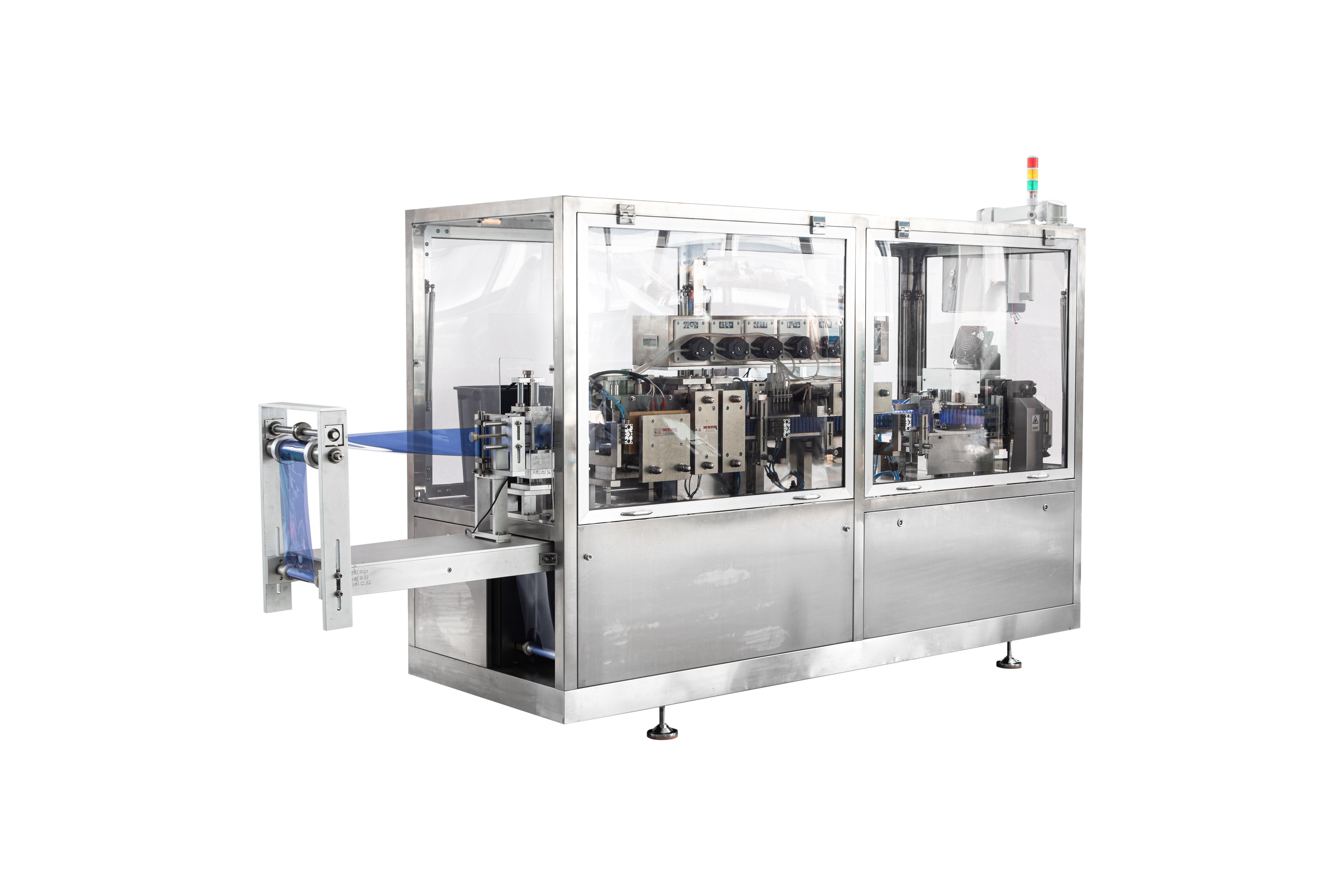

Supply Film

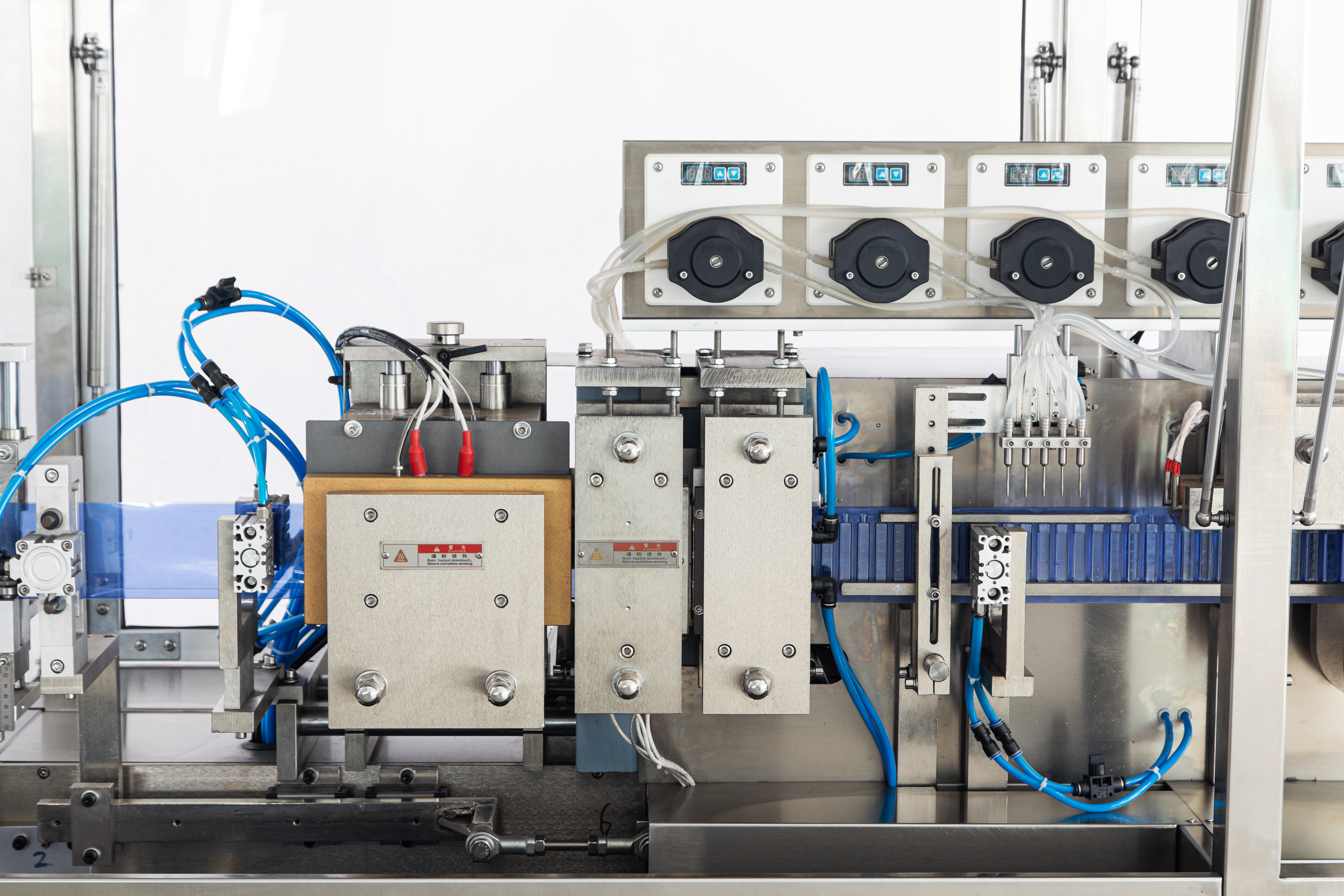

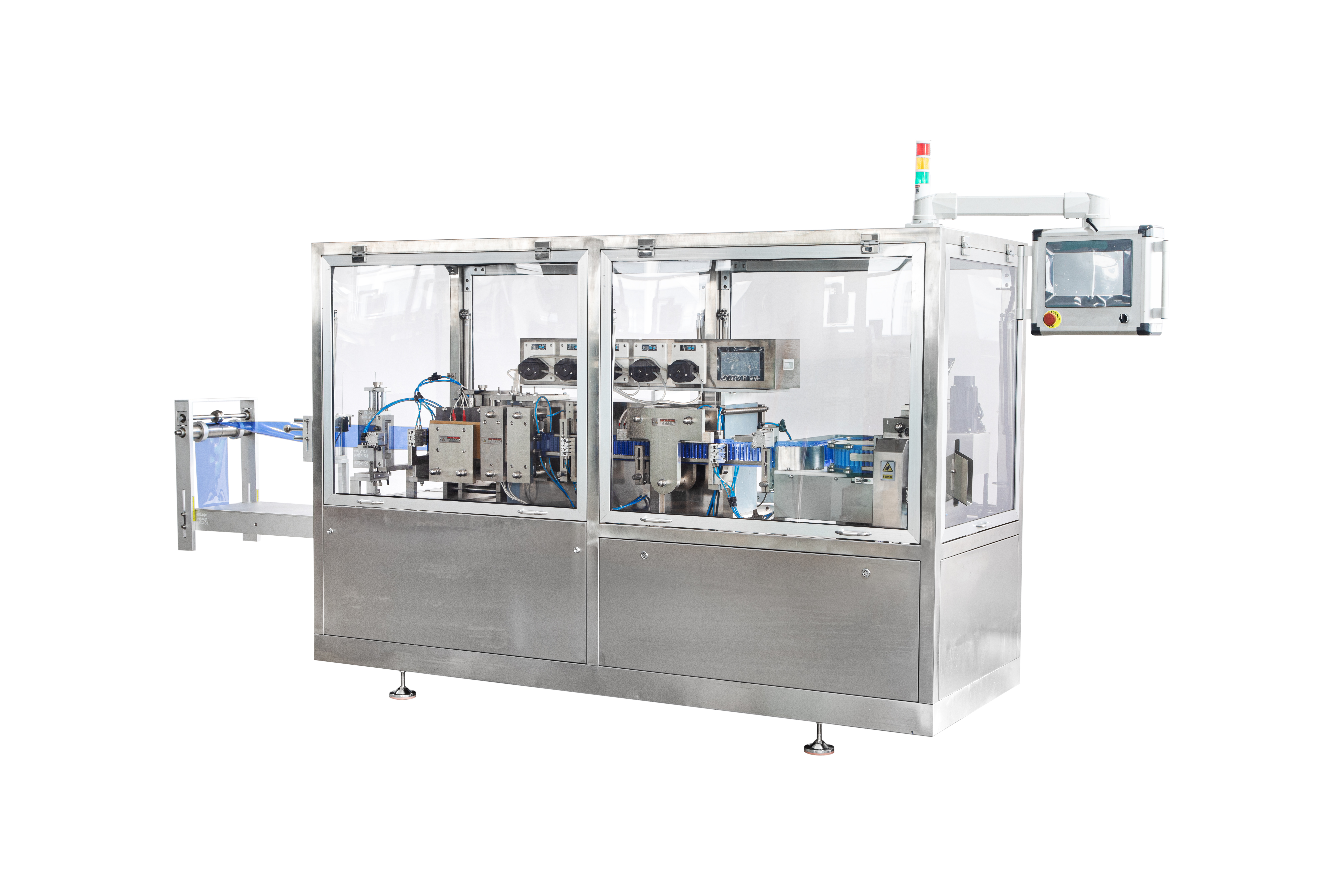

Filling parts

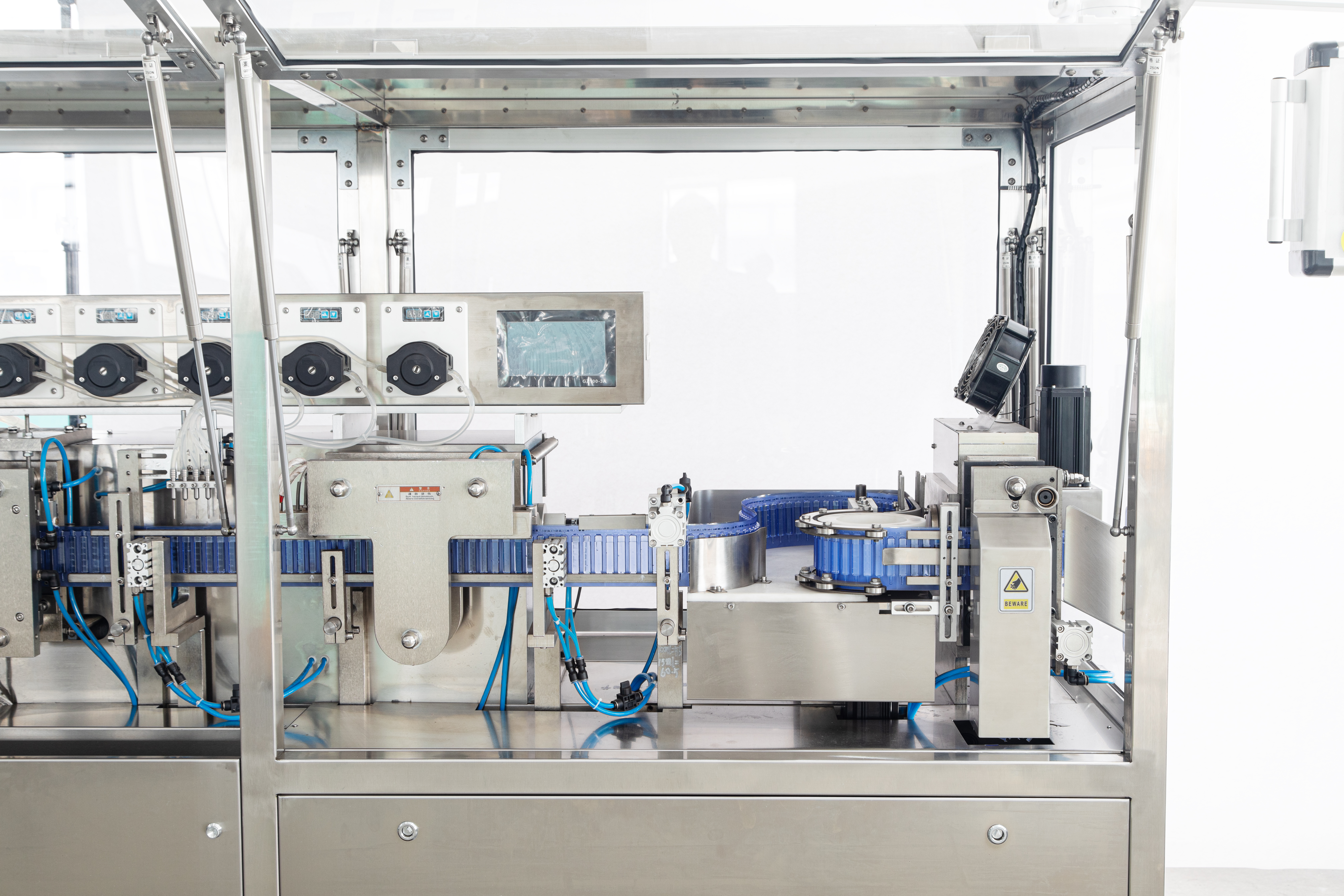

0J9A7476 拷贝 Sealing parts

Technical Parameter

Max.forming depth	12mm
Forming frequency	0-25times
Packing material	PVC/PE (0.2-0.4)x140mm
Filling volume	1-50ml
Total power supply	7kw
Voltage	380V50Hz
Machine weight	1000kgs
Overall dimension(LxWxH)	3380x950x1800mm
