PVC/PE Plastic Bottle Peristaltic Pump Ampoule Forming Filling and Sealing Cutting Machine



Inquire Add to Basket

Port:
Dalian, China
Production Capacity:
20 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
FFS
Filling Principle:
Atmospheric Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Plastic
Name:
High Speed Liquid Filling Machine
Filling Liquid:
Oral Liquid, Cosmetic,Medial, Pharmaceutical
Keywords:
Ampoule Filling Sealing Machine
Packing Materical:
PVC/PE
Max Forming Depth:
13mm
Cutting Frequency:
>10-18 Times/Min
Packing Speed:
10-18 Plate/Min
Materical:
SS316 with Liquid
Filling Head:
15 PCS Heads
Weight:
3400kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

BSPFS peristaltic pump Plastic Ampoule Forming and Filling and Sealing Machine:

Why choose our machine?

1.This machine is suit to unit dosage packing, mainly use for the packing of liquid state and half-liquid material, like orally physic, health protection, eatable, face-painting and other similarity.
2. This machine is very nice, decent, and easy to operate, especially the electrical control cabinet is independent from machine. And All the process are controlled by PLC, stepless frequency conversion and variable speeds.
3.All 22 processes from spreading roll, AMP bottle forming V, filling, sealing the end, printing serial numbers, cutting the end, cutting apart, controlled by programming.
4.All the process are controlled by PLC, stepless frequency conversion and variable speeds.
5.The large color man-computer interface is simple and easy for operation.
6. Material of high-quality stainless steel, according with GMP standard.

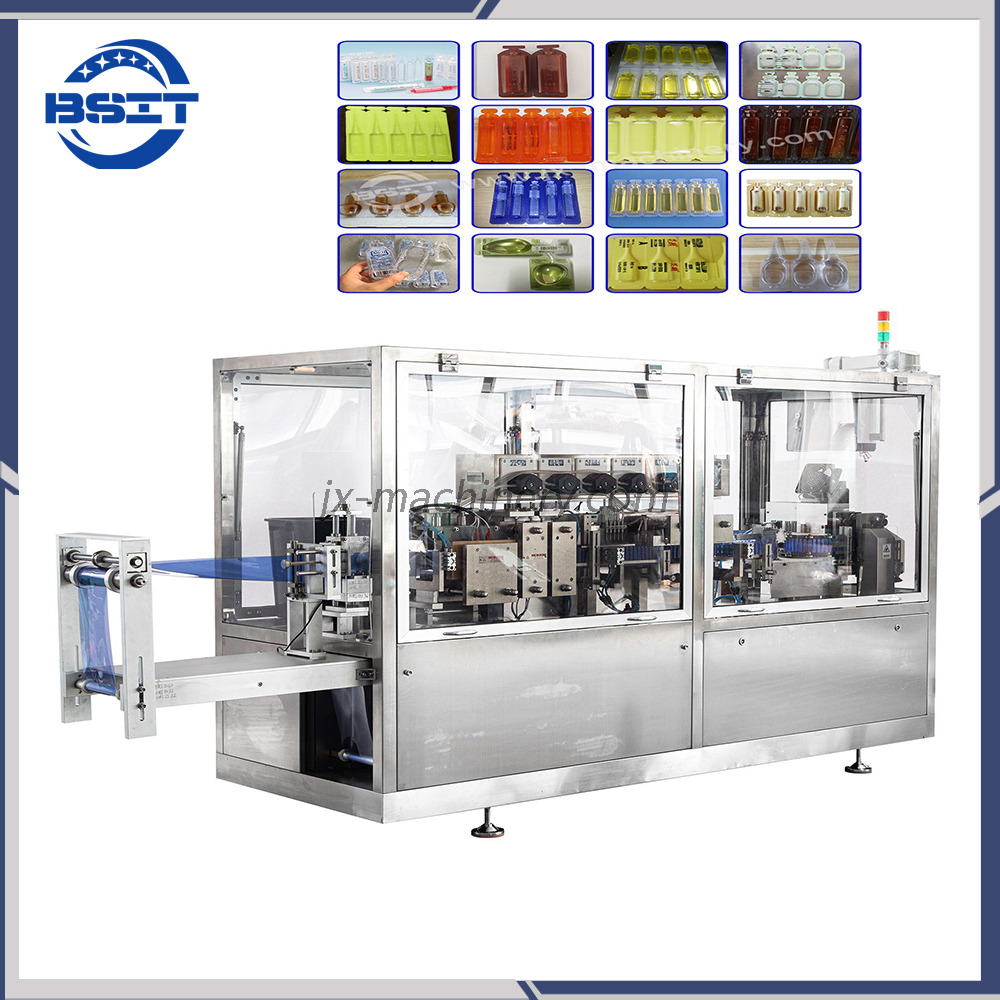

PVC/PE Plastic Bottle Peristaltic Pump Ampoule Forming Filling and Sealing Cutting Machine

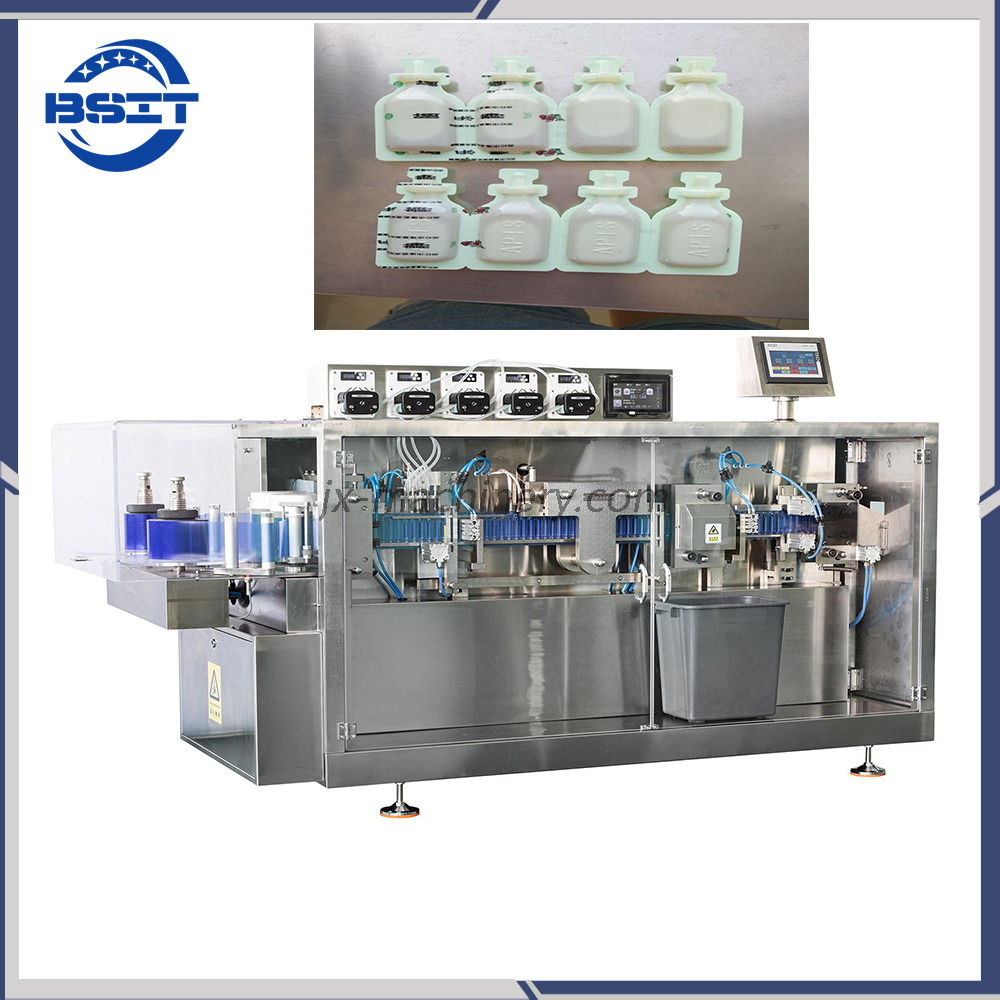

finished product:

PVC/PE Plastic Bottle Peristaltic Pump Ampoule Forming Filling and Sealing Cutting Machine

Main Feature:

(1)perfect sculpt, novel structure, layout in reason
(2)PLC, frequency timing, advance tech, fine operation
(3)wide capability, high adapting, good quality
(4)low noise, good for working
(5)mould-alter to make all kinds of mold easily
(6)can be filled and packed with special liquid material
(7)auto disinfect to packing material, ensure the better working state.
(8)electron operation, easy to adjust the filling level
(9)Touch screen, clean menu, operation surface

Technical Parameter:

Max forming depth	13mm
Cutting frequency	> 10~18 (time/Min)
Packing speed	10~18(plate/Min) 8~16(flasks/plate )
Dimensions	(L)315mm MAX (W)78~108mm MAX
Packing material	PVC/PE 0.3X345mm (Other material is choosed by customer)
Capacity	1~50ml/flask
Air consumption	110L/Min
Water consumption	6L/Min
Power(kw)	12kw
Voltage	380V/50hz
Size L X W X H(mm)	3880x1783x1920
Weight(kg)	3400
