RC-12DS
BSIT
Shanghai seaport
T/T
1 set
Wooden Case

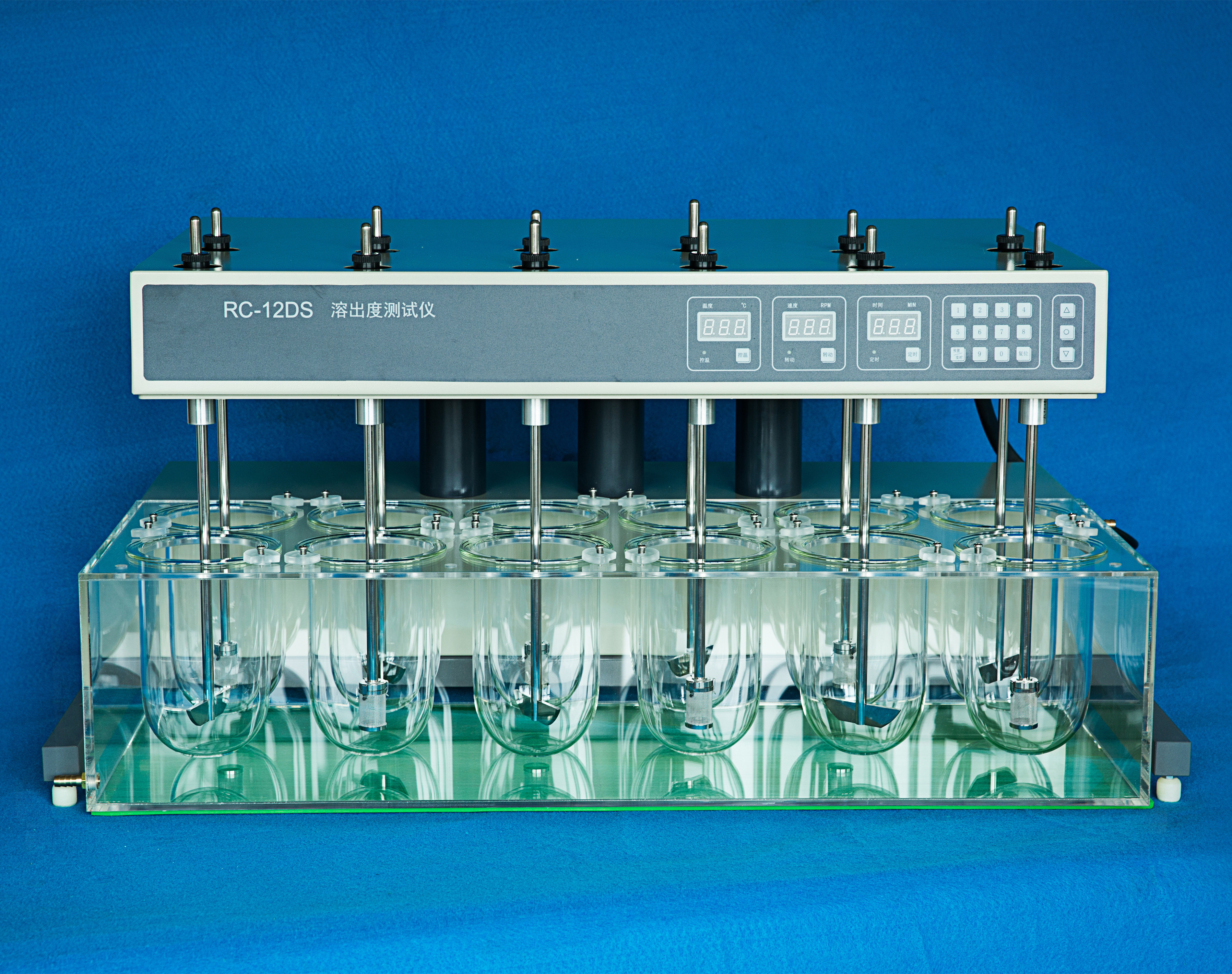

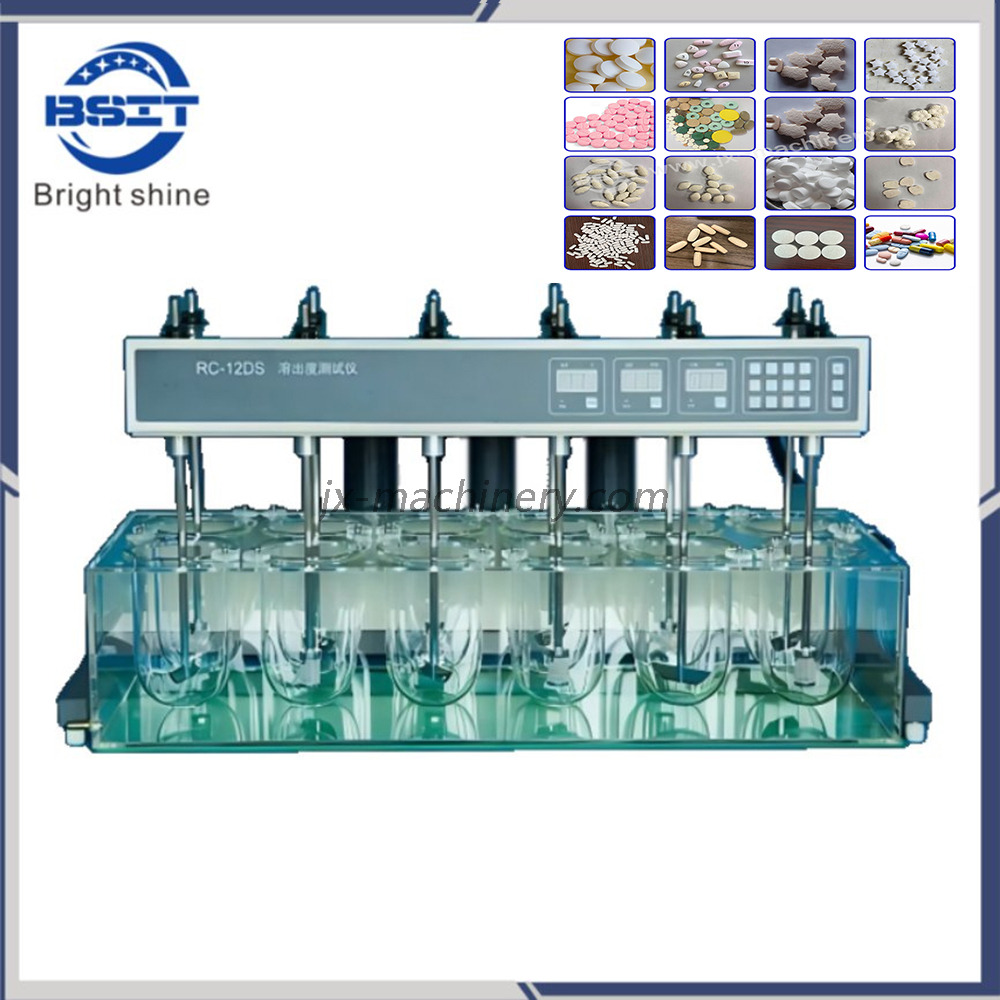

RC-12DS DISSOLUTION TESTER
If you’re in the solid dosage products manufacturing industry, then you need a disintegration tester. In fact, it is an important quality control aspect in the tablet press industry.
So, today’s guide will focus on critical aspects of the disintegration tester, covering basic terms in the industry, classification, working principle, features, and more.
Applicable standards
National standard (Chinese codex) /2015
Industry Standard (Dissolution tester)
Features
It has twelve vessels and twelve poles, with six vessels and six poles in
front and other at back.
The head moves up/down automatically.
The basket units and paddle units are made of imported stainless steel
(SUS316L).
The magnetism-pumped circular water current can heat the system
evenly, and the bath liquid can
achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the
temperature, rotational speed and time, and the parameters can be
preset at any time.
It can be operated conveniently by keystroke. The measurement result
is displayed by LED.
The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters
of' Chinese codex are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to
any point, and then the tester automatically runs to the next one.
Specifications
Speed range | 20-200 rpm |
Speed accuracy | ±2 rpm |
Temperature Stability | ±0.3 ℃ |
Temperature range | ambient to +45.0 ℃ |
Preset timing nine points | (1～999) min |
Time accuracy | ±0.3 % |
Basket radial run-out | ±1.0 mm |
Paddle radial run-out | ±0.5 mm |
Power | 220V/50Hz/1200W or customized 110V/60Hz/1200W |
Dimension | (96×54×48) cm |
