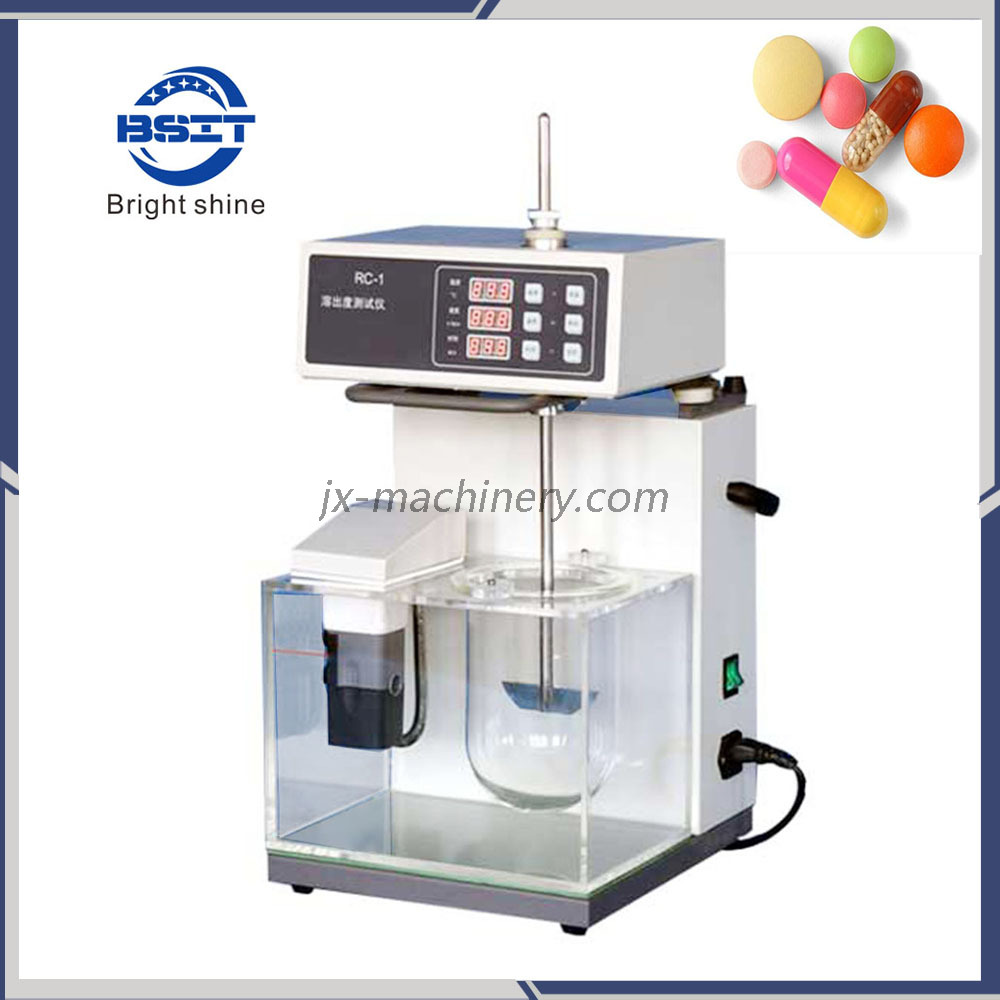

Lab Equipment Dissolution Tester for Tablet RC-1

Availability:
  • RC-1

  • BSIT

  • Shanghai, China

  • 7 Sets/Week

  • T/T, Western Union

                              Lab Equipment Dissolution Tester for Tablet RC-1

Lab Equipment Dissolution Tester for Tablet RC-1
Product Description:
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(Dissolution tester )Q/12XQ0187-2010
Features:
It has one vessels and one poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.

Technical Parameter :

Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0ºC
Temperature Stability ±0.3ºC ±0.3ºC
Preset timing Six points (5~900)min
Time accuracy ±0.3%
Basket radial run-out ±1.0mm
Paddle radial run-out ±0.5mm
Heating power 500w
Working time continuously More than 24hours
Power 220V50Hz ,600W
Dimension 260×30480mm3

wooden case packing

Lab Equipment Dissolution Tester for Tablet RC-1
carton packing sample:

Lab Equipment Dissolution Tester for Tablet RC-1
Lab Equipment Dissolution Tester for Tablet RC-1
Lab Equipment Dissolution Tester for Tablet RC-1
Lab Equipment Dissolution Tester for Tablet RC-1
