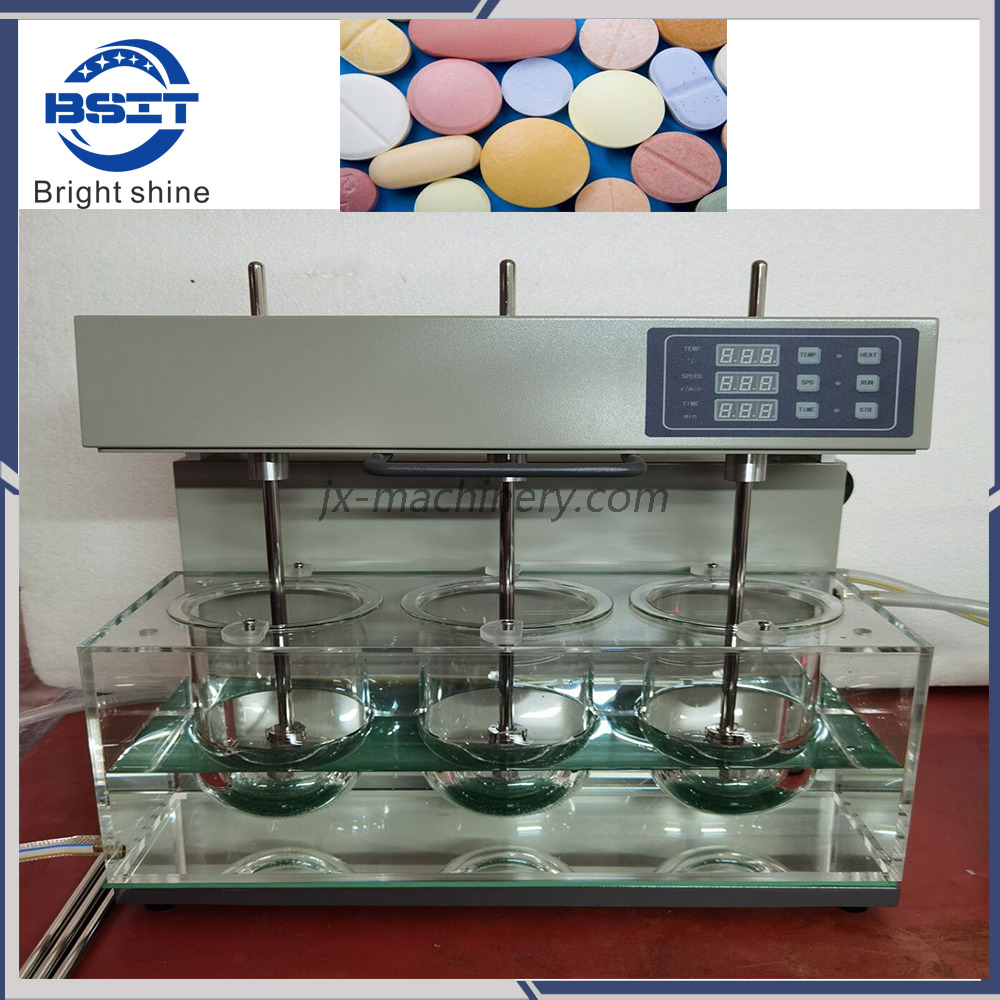

Dissolution Tester for Tablet RC-3
RC series of instruments are used for detecting velocity and extent of pharmacy dissolution form tablet capsule etc in prescriptive menstruum
National standard(Chinese codex)/2005/
Corporate standard(Dissolution tester) Q/12XQ0187-2004
1. It has three vessels and three poles arranged on one line.
2. The head part of the instrument can be artificially turned over smoothly and flexibly.
3. The basket units and paddle units are made of imported stainless steel(SUS316L).
4. The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
5. A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
6. It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time
7. Automation: Auto-test, auto-diagnose, auto-alarm.
|Speed range ||(20~200) rpm |
|Speed accuracy: || ±2rpm |
|Temperature range ||ambient to +45.0 degree Celsius |
|Temperature Stability || ±0.3 degree Celsius |
|Automatic time range ||(5-900)min |
|Time accuracy || ±0.5min |
|Paddle radial run-out: || ±0.5mm |
|Basket radial run-out || ±1.0mm |
|Power ||220V/50Hz/600W or 110V/60Hz/600w |
|Dimension ||(510X300X480)mm³ |
