RC-8D
BSIT
Shanghai, China
7 Sets/Week
T/T, Western Union, Paypal, Money Gram

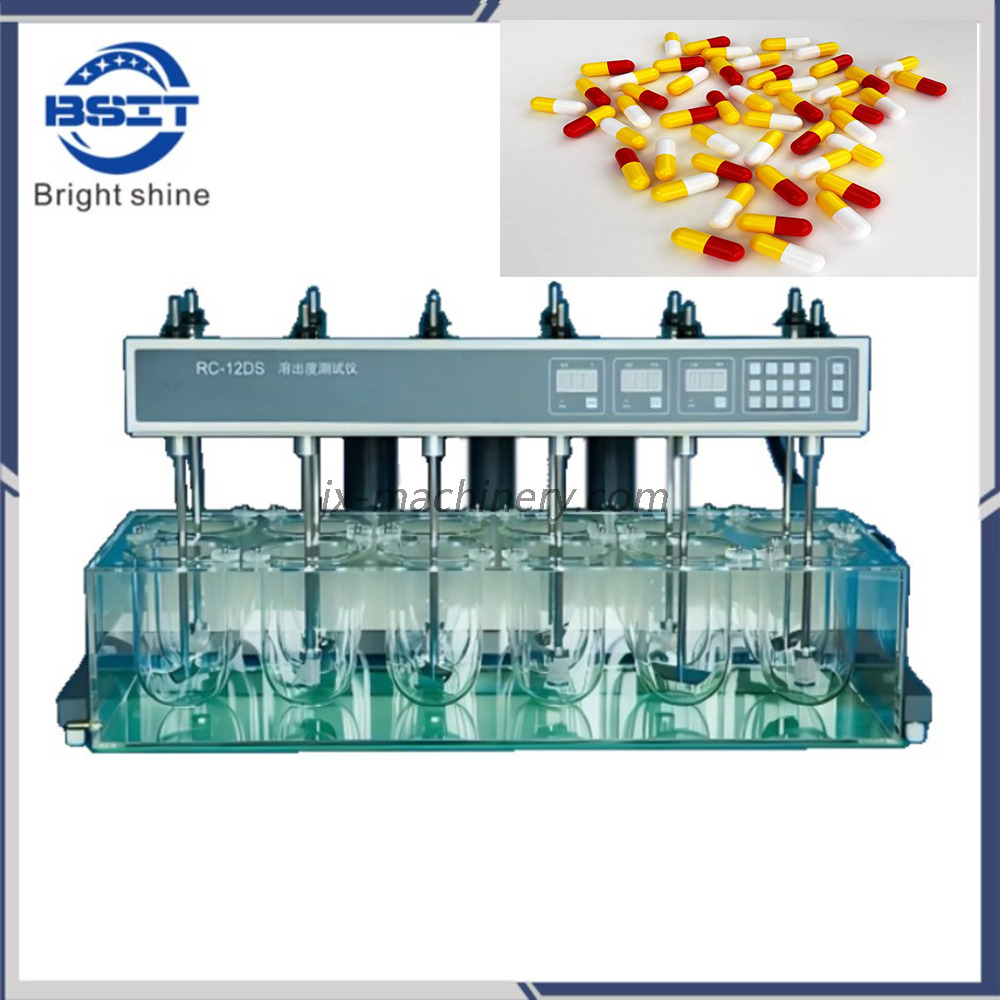

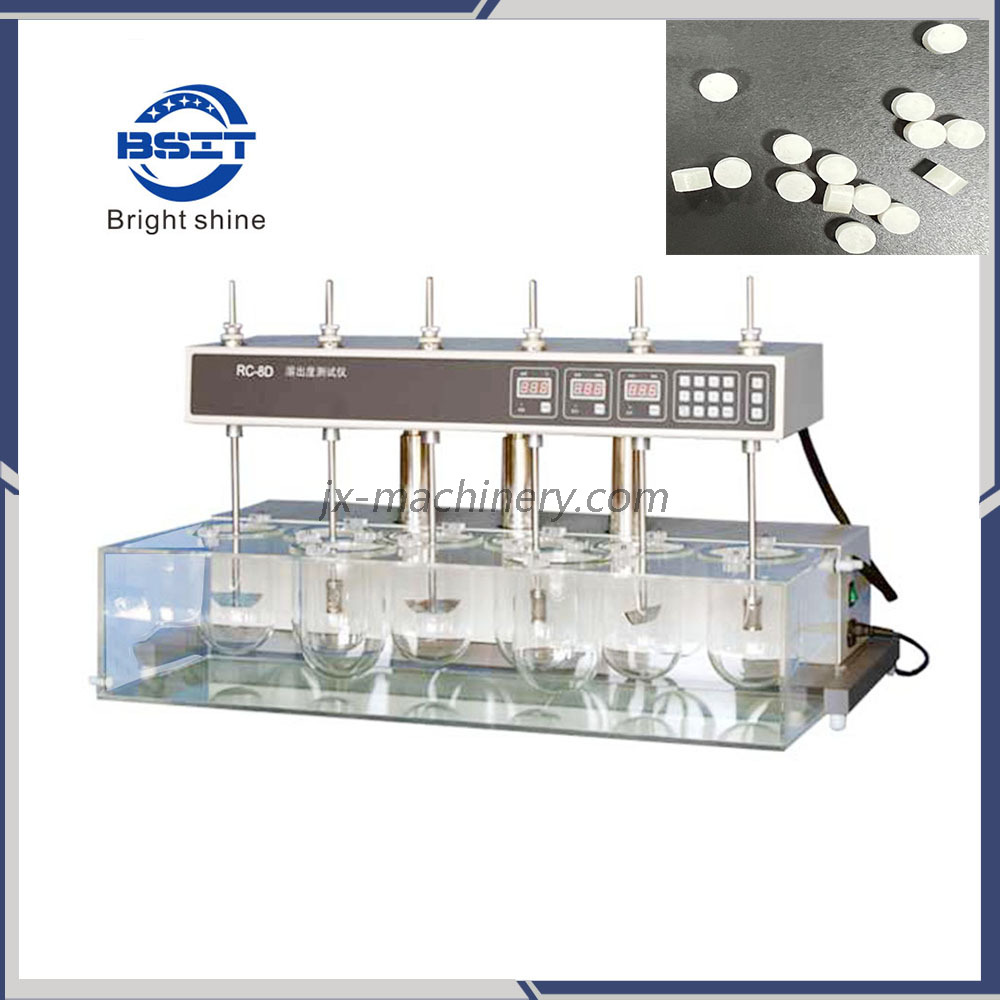

RC-8d Pharmaceutical Tablet and Pill ,capsule Medical Equipment Dissolution Tester
Product Description
RC series of instruments are used for detecting velocity and extent of pharmacy dissolution form tablet capsule etc in prescriptive menstruum.
Applicable standards
National standard(Chinese codex)/2005/
Corporate standard(Dissolution tester) Q/12XQ0187-2004
Features
1.It has eight vessels and six poles, with six vessels and six poles at back and other two vessels in front .
2.The head moves up/down automatically.
3.The basket units and paddle units are made of imported stainless steel(SUS316L) .
4.The magnetism-pumped circular water current can heat the system evenly ,and the bath liquid can achieve an equal temperature.
5.A MPU is used in dissolution tester to automatically control the temperature , rotational speed and time, and the parameters can be preset at any time.
6.It can be operated conveniently by keystorke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time
7.Automation: auto-test, auto-diagnose, auto-alarm .
8.It can test by self and alma automatically. The dissolution parameters of "Chinese codex 2005" are stored in and can be taken out at anytime
9.Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one
Technical Parameter :
| Speed range : | (20~200)rpm |
| Speed accuracy | 2rpm |
| Temperature range | ambient to +45.0ºC |
| Temperature Stability | ±0.3ºC |
| Preset timing | nine points(1-999)min |
| Time accuracy | ±0.5min |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ± 1.0mm |
| Power: | 220V/50Hz/1200W or 110V/60Hz/1200w |
| Dimension | (960X520X480)mm³ |
