Plastic Ampoule Olive Oil Liquid Filling and Sealing Machine (Dsm120+Lm100)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
DSM120+LM100
Filling Principle:
Vacuum
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Plastic
Capacity:
2-25ml/Ampoule
Cutting Frequency:
0-50 Time
Filling Liquid:
Oral Liquid
Material:
SS316
Max Forming Depth:
12mm
Packing Material:
PVC/PE(0.2-0.4)X120mm
Power:
3.5kw
Voltage:
220/380V/50Hz
Whole Weight:
300kg
Outer Size:
1700X1000X1400(mm)
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422400000
Type:
Volumetric Filling Machine
Automatic Grade:
Fully Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

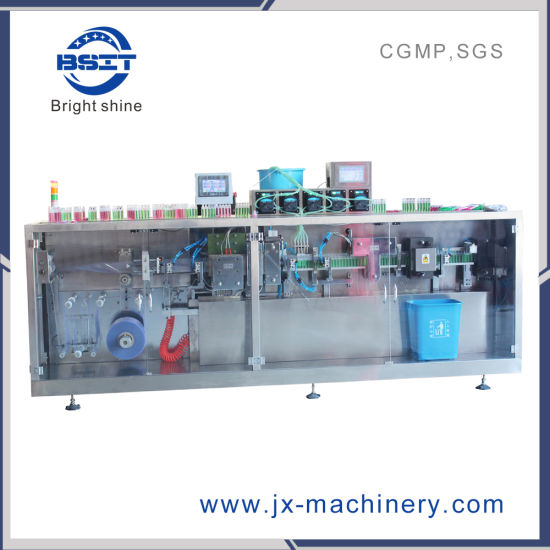

Plastic Ampoule olive oil Liquid Filling and Sealing Machine (Dsm120+Lm100)

Technical data:

Controlled by PLC, the frequency conversion in finitely variable speeds. All 6 processes from
Spreading roll, Ampoule bottle forming, filling, sealing the end, printing serial numbers, cutting
The end, cutting apart, controlled by programming. The computer human interface has simple
And clear operation. The filling head don't drop. Leak, riding bubbled and spill over.
All are made of high-quality stainless steel, accord with the standard GMP.
Mostly pneumatic components and Wirings adopt inward fittings.
Automatic and mechanical bottling, precise calculation and limited deflection.

Max forming depth	12mm
Cutting frequency	0-50time
Packing material	PVC/PE(0.2-0.4)X120mm
Capacity	2-25ml/Ampoule
Power	3.5Kw
Voltage	220/380V/50Hz
Whole machine's weight	300Kg
Outer size L x W x H(mm)	1700x1000x1400(mm)
