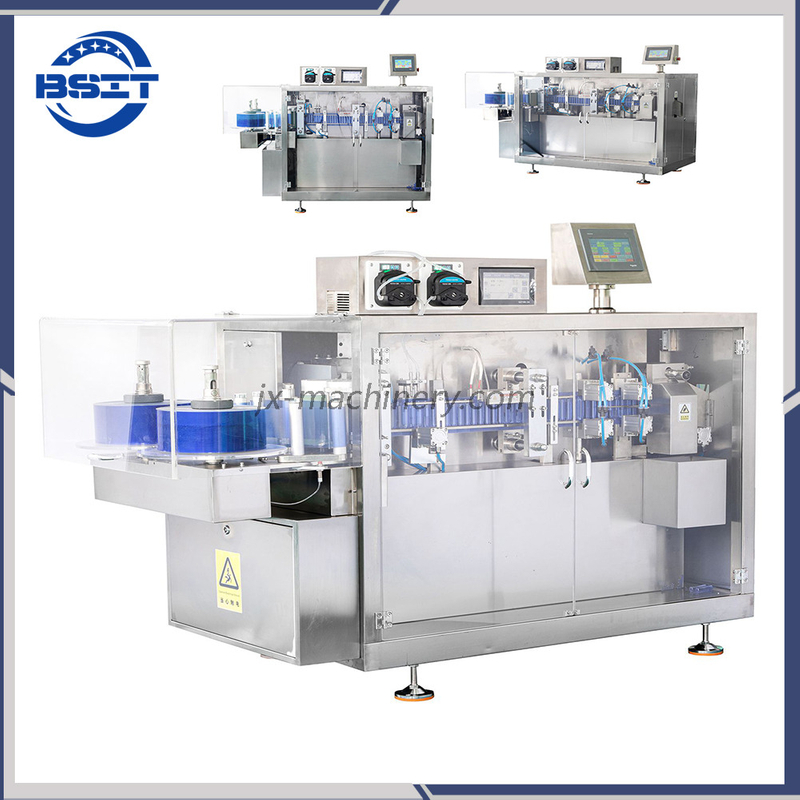

DSM -120 (P2)Factory Price Plastic Ampoule Bottle 5-10ml Filling sealing Machine for health, pharmaceutical, food and cosmetics

Availability:



Inquire Add to Basket

Model:
DSM
Brand:
BSIT
Code:
8422303090
Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram

Product Description

DSM -120 (P2)Factory Price Plastic Ampoule Bottle 5-10ml Filling sealing Machine for health, pharmaceutical, food and cosmetics

Description:

Take out the film, Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically. Save cost and time.
This machine is applied to fill liquid or semiliquid, such as oral liquid, oil, cosmetic
(shampoo, cream) and honey etc.
This machine is widely used in pharmacy, daily cosmetic, petrochemical and foodstuff etc industries.

Features:

1. Controlled by PLC, the frequency conversion in finely variable speeds.
2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end,
printing serial numbers, cutting the end ,cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head does not drop, leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and wirings adopt inward fittings.
7. Automatic and mechanical filling, precise calculation and limited deflection.

Machine main Advantage:

1.DSM-120 Micro Liquid Forming Filling & Sealing Machine is applicable for liquid, sticky, semi-sticky and so on.

2.This machine can be used for pharmaceuticals, food, health care products, cosmetic. It also can be used in industry and agriculture in similarity products.

3. This machine can finish forming, filling,sealing ,cutting once time.
4. our machine has 2 filling head, 5 filling head, 10 filling head, 15 filling head. you can choose freely according to difference capacity
5. Meet with CE certificate and GMP standards

2 filling head plastic ampoule filling machine working video please check https://youtu.be/laeN9l3s3d4
5 filling head plastic ampoule filling machine working video please check https://youtu.be/N0t2_QKAC-4
10 filling head plastic ampoule filling sealing machine working video please check: h ttps://youtu.be/hOlET10kpOo

Technical Parameter:

Model	DSM-120(Two filling nozzles)
Maximum forming depth	12mm
Cutting frequency	0-25time
Maximum capacity	50bottles/min
Packing material	PVC/PE film(0.2-0.4)x120mm
Filling volume	2-25ml/bottle
Power	3.5Kw
Power supply	AC,220V/50Hz 1Phase or customization
Net weight	350kg
Overall size	1800x800x1400mm

Model	DSM-120(Five filling nozzles)
Maximum forming depth	12mm
Cutting frequency	0-25time
Maximum capacity	100bottles/min
Packing material	PVC/PE film(0.2-0.4)x120mm
Filling volume	2-25ml/bottle
Power	3.5Kw
Power supply	AC,220V/50Hz 1Phase or customization
Net weight	450kg
Overall size	2200x900x1500mm
