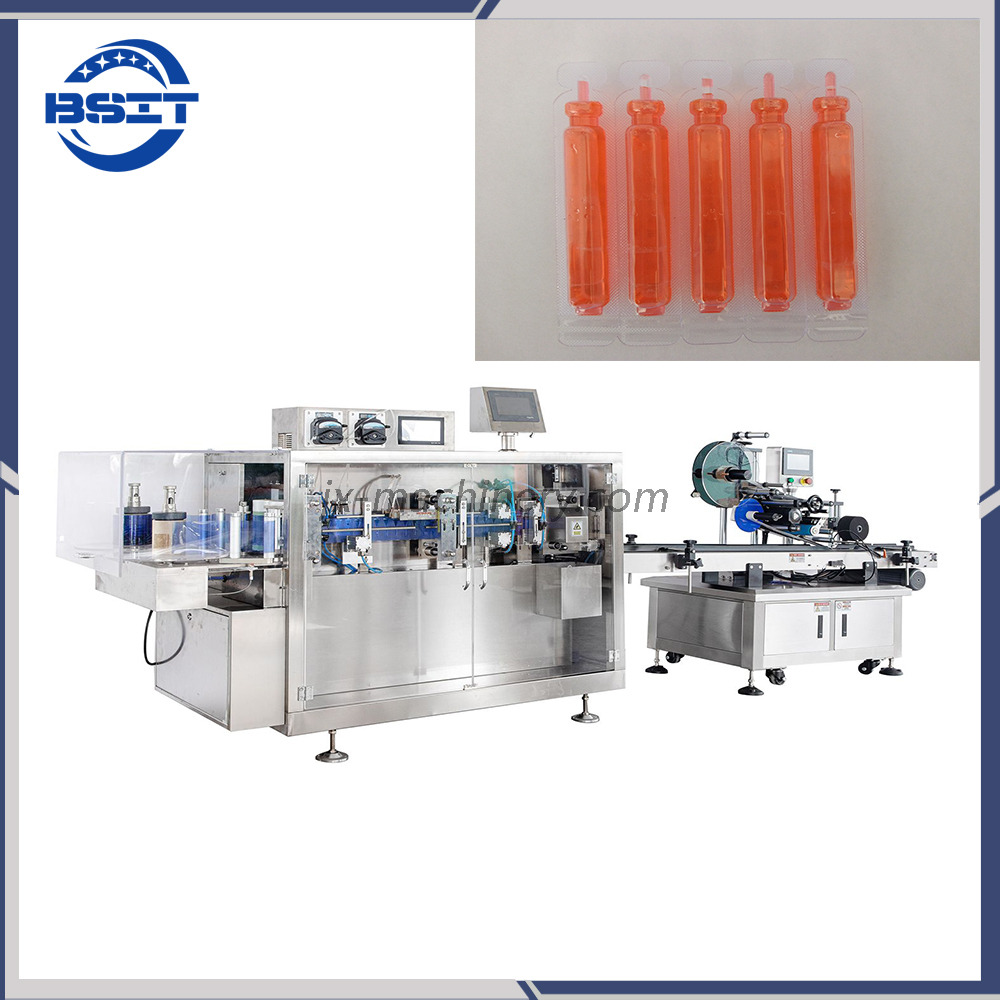

Pesticide Liquid 10ml Automatic PLC Touch Screen Plastic Ampoule Liquid Filling Sealing Machine with SS316 Steel
Application:
It is suitable for oral liquid, liquid, pesticide, perfume, cosmetics, fruit pulp, food, etc.
5 filling heads capacity is 100pcs/min
Performance and feature:
1.It adopts PLC control and stepless frequency conversion speed regulation.
2.The working processes such as unwinding, plastic forming, filling, batch number printing, indentation, punching and cutting are completed automatically by the program.
3.It adopts human-machine interface device, which has simple operation.
4.The filling has no dripping, bubbling, and overflowing.
5.The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.
6.The main penumatic and electrical components adopt imported brand.
7.It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.
Technical data:
Max. forming depth | 12mm |
Punch frequency | 0-30 times |
Packing material | PVC/PE，PET/PE（0.2-0.4）×140mm |
Filling volume | 1-50ml |
Toal power supply power | 7KW |
Voltage | 220-380V/50Hz |
Machine weight | 900Kg |
Overall dimension (L*W*H) | 2300×850×1400(mm) |
