Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)

  • Shanghai, China

  • 20 Sets/Month

  • T/T, Western Union

  • DSM120

  • Pressure

  • Pneumatic Lifting

  • Linear

  • Bottle

  • Plastic

  • Plastic Ampoule Liquid Filling Sealing Machine

  • Ampoule Liquid Filling Machine

  • Pharmaceutical, Oral, Cosmetic, Pesticide

  • 2-25ml/Ampoule

  • 0-50 Time

  • 2 and 5 Heads

  • PVC/PE or Pet/PE

  • SS304

  • 220V,50Hz,1p

  • 3.5kw

  • 350kg

  • 1800X800X1400mm

  • BSIT

  • Export Standard Wooden Case

  • meet with GMP standards

  • Made in China

  • 8422400000

  • Plastic Ampoule Filling Sealing Machine

  • Automatic

  • Liquid

  • Multi-Head

  • Single-Room Feeding

  • Plunger

Plastic ampoule filling sealing machine for pharmaceutical and cosmetic

Our DSM plastic ampoule filling sealing machine advantage:

1.It is applicable for pharmaceuticals, food, health care products, cosmetic industry. It also can be used in industry and agriculture in similarity products liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics( cream/shampoo), eletronic cigarette oil, dairy product, fruit pulp, oil , hondy etc sticky, semi-sticky.
2. Take out the film, Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically.This machine can finish forming, filling,sealing once time.
3.Save cost and time.

Working video linkage as following as reference: https://www.youtube.com/watch?v=JVSqJLlgt-g

Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)
Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)
Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)


Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)

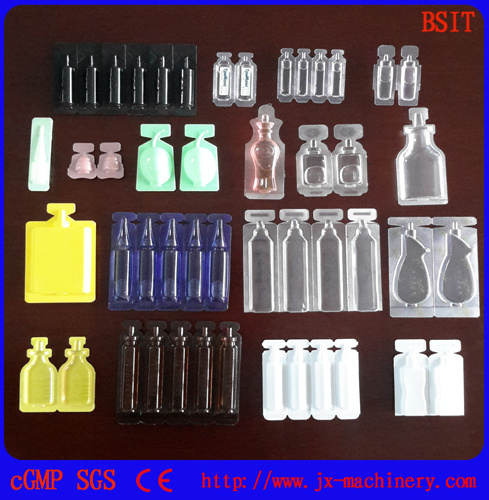

Plastic ampoule sample:
Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)

Main Features:

1. Controlled by PLC, the frequency conversion in finely variable speeds.
2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end,
printing serial numbers, cutting the end ,cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head does not drop, leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and wirings adopt inward fittings.
7. Automatic and mechanical filling, precise calculation and limited deflection.



Technical Parameter:
Model DSM-120(Two filling nozzles)
Maximum forming depth 12mm
Cutting frequency 0-25time
Maximum capacity 50bottles/min
Packing material PVC/PE film(0.2-0.4)x120mm
Filling volume 2-25ml/bottle
Power 3.5Kw
Power supply AC,220V/50Hz 1Phase or customization
Net weight 350kg
Overall size 1800x800x1400mm
Model DSM-120(Five filling nozzles)
Maximum forming depth 12mm
Cutting frequency 0-25time
Maximum capacity 100bottles/min
Packing material PVC/PE film(0.2-0.4)x120mm
Filling volume 2-25ml/bottle
Power 3.5Kw
Power supply AC,220V/50Hz 1Phase or customization
Net weight 450kg
Overall size 2200x900x1500mm


high speed machine Photo and Feature :

Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)



1. HC high speed and high precision high-end motion controller. Stepless frequency control of motor speed control .Servo motor control tensile membrane device.
2. The man-machine interface. Device, the operation is simple.
3. Automatic discharge volume, a roll of film cutting ,can be folded in half.
4. There are positive and negative photoelectric pattern of version of the function. Products elegant, meet high standards of packaging requirements.
5. Using electronic peristaltic pump device. And mechanical pump piston pump control.Adjustment is convenient. Filling accuracy is correct.
Filling does not drip,no bubble, no overflow.
6. Parts in contact with the medicine with high quality stainless steel 316L,machinery casings are all SUS304 stainless steel. In line with the GMP standard.
7.
At the bottom of the bottle is flat , can stand.


Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)
Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)
Plastic Ampoule Liquid Filling Sealing Machine for Cosmetic Cream (hand/face/foot)
