Pharmaceutical Machine Plastic Ampoule Filling Sealing Machine with Meet GMP Standards

  • Shanghai, China
  • 20 Sets/Month
  • T/T, Western Union, Paypal, Money Gram
  • DSM240 (P5)
  • Vacuum
  • Pneumatic Lifting
  • Linear
  • Bottle
  • Plastic
  • 2-25ml/Ampoule
  • 0-50 Time
  • 2 and 5 Heads
  • Pharmaceutical or Cosmetic
  • SS316
  • All Kinds of Bottle
  • PVC/PE or Pet/PE
  • 3.5kw
  • 12mm
  • 350kg
  • BSIT
  • Export Standard Wooden Case
  • meet with GMP standards
  • Made in China
  • 8422400000
  • Volumetric Filling Machine
  • Automatic
  • Paste
  • Multi-Head
  • Single-Room Feeding
  • Plunger
Plastic ampoule filling sealing machine for pharmaceutical and cosmetic

Pharmaceutical Machine Plastic Ampoule Filling Sealing Machine with Meet GMP Standards

Pharmaceutical Machine Plastic Ampoule Filling Sealing Machine with Meet GMP Standards

Product Summary:

DSM-120 Micro Liquid Forming Filling & Sealing Machine is applicable for liquid, sticky, semi-sticky and so on. This machine can be used for pharmaceuticals, food, health care products, cosmetic. It also can be used in industry and agriculture in similarity products. This machine can finish forming, filling,sealing once time.

Description:

Take out the film, Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically. Save cost and time.
This machine is applied to fill liquid or semiliquid, such as oral liquid, oil, cosmetic
(shampoo, cream) and honey etc.
This machine is widely used in pharmacy, daily cosmetic, petrochemical and foodstuff etc industries.

Features:

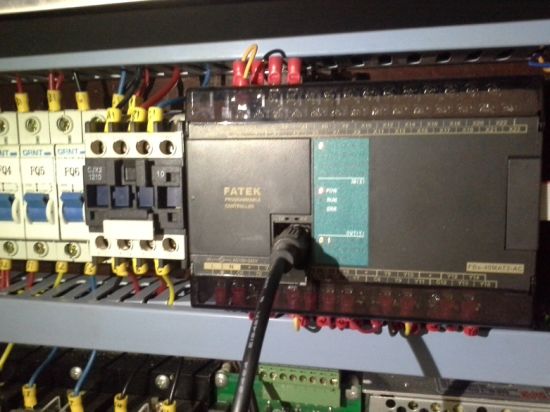

1. Controlled by PLC, the frequency conversion in finely variable speeds.
2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end,
printing serial numbers, cutting the end ,cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head does not drop, leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and wirings adopt inward fittings.
7. Automatic and mechanical filling, precise calculation and limited deflection.

Technical Parameter:
Model DSM-120(Two filling nozzles)
Maximum forming depth 12mm
Cutting frequency 0-25time
Maximum capacity 50bottles/min
Packing material PVC/PE film(0.2-0.4)x120mm
Filling volume 2-25ml/bottle
Power 3.5Kw
Power supply AC,220V/50Hz 1Phase or customization
Net weight 350kg
Overall size 1800x800x1400mm
Model DSM-120(Five filling nozzles)
Maximum forming depth 12mm
Cutting frequency 0-25time
Maximum capacity 100bottles/min
Packing material PVC/PE film(0.2-0.4)x120mm
Filling volume 2-25ml/bottle
Power 3.5Kw
Power supply AC,220V/50Hz 1Phase or customization
Net weight 450kg
Overall size 2200x900x1500mm

Application :

This machine is suitable for the unit dose of medicine, drinks, dairy products, health products, food cosmetics, perfume, agricultural medicine, fruit purees, etc.

Performance and characteristics :

1. HC high speed and high precision high-end motion controller. Stepless frequency control of motor speed control .Servo motor control tensile membrane device.
2. The man-machine interface. Device, the operation is simple.
3. Automatic discharge volume, a roll of film cutting ,can be folded in half.
4. There are positive and negative photoelectric pattern of version of the function. Products elegant, meet high standards of packaging requirements.
5. Using electronic peristaltic pump device. And mechanical pump piston pump control.Adjustment is convenient. Filling accuracy is correct.
Filling does not drip,no bubble, no overflow.
6. Parts in contact with the medicine with high quality stainless steel 316L,machinery casings are all SUS304 stainless steel. In line with the GMP standard.
7. At the bottom of the bottle is flat , can stand.

Main Technical Parameters:
Max forming depth 12mm
Cutting frequency 0-25times
Material packaging PVC/PE PET/PE(0.2-0.4)X240mm
Capacity 1-50ml
Power 7Kw
Voltage 380V/50Hz
Whole machine's weight 1200Kg
Outer size LxWxH(mm) 3200x850x1400(mm)
