Pharmaceutical Machine 2 Filling Head Plastic Ampoule Filling Sealing Machine for Oral Liquid



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
DSM120
Filling Principle:
Vacuum
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Plastic
Made in China:
2-25ml/Ampoule
Cutting Frequency:
0-50 Time
Filling Head:
2 and 5 Heads
Packing Materical:
PVC/PE or Pet/PE
Body Material:
SS304
Voltage:
220,50/60Hz. 1p
Suitable Liquid:
Pharmaceutical, Oral, Cosmetic,Petiside
Power:
3.5kw
Weight:
350kg
Size:
1800X800X1400mm
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422400000
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Paste
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

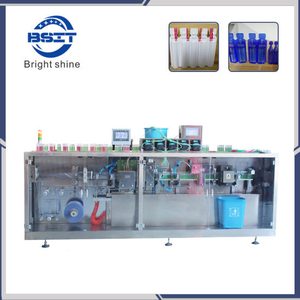

Pharmaceutical Machine 2 filling head Plastic Ampoule Filling Sealing Machine for Oral Liquid

Product Summary:

DSM-120 Micro Liquid Forming Filling & Sealing Machine is applicable for liquid, sticky, semi-sticky and so on. This machine can be used for pharmaceuticals, food, health care products, cosmetic. It also can be used in industry and agriculture in similarity products. This machine can finish forming, filling,sealing once time.

Description:

Take out the film, Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically. Save cost and time.
This machine is applied to fill liquid or semiliquid, such as oral liquid, oil, cosmetic
(shampoo, cream) and honey etc.
This machine is widely used in pharmacy, daily cosmetic, petrochemical and foodstuff etc industries.

Features:

1. Controlled by PLC, the frequency conversion in finely variable speeds.
2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end,
printing serial numbers, cutting the end ,cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head does not drop, leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and wirings adopt inward fittings.
7. Automatic and mechanical filling, precise calculation and limited deflection.

Technical Parameter:

Model	DSM-120(Two filling nozzles)
Maximum forming depth	12mm
Cutting frequency	0-25time
Maximum capacity	50bottles/min
Packing material	PVC/PE film(0.2-0.4)x120mm
Filling volume	2-25ml/bottle
Power	3.5Kw
Power supply	AC,220V/50Hz 1Phase or customization
Net weight	350kg
Overall size	1800x800x1400mm

Model	DSM-120(Five filling nozzles)
Maximum forming depth	12mm
Cutting frequency	0-25time
Maximum capacity	100bottles/min
Packing material	PVC/PE film(0.2-0.4)x120mm
Filling volume	2-25ml/bottle
Power	3.5Kw
Power supply	AC,220V/50Hz 1Phase or customization
Net weight	450kg
Overall size	2200x900x1500mm
