Pesticide 5-30ml Plastic Ampoule Bottle Liquid Forming Filling Sealing Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
DSM-120
Filling Principle:
Vacuum
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Plastic
Capacity:
2-25ml/Ampoule
Cutting Frequency:
0-100 Time
Voltage:
380V/220V50Hz, 3p ,Four-Wire
Filling Liquid:
Pesticide, Oral Liquid, Pharmaceutical, Cosmetic
Packing Material:
PVC/PE or Pet/PE
Function:
Forming, Filling, Sealing ,Cutting
Power :
3.5kw
Whole Machine′s Weight :
300kg
Outer Size:
1700X1000X1400mm
Material:
SS316 with Liquid
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422400000
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

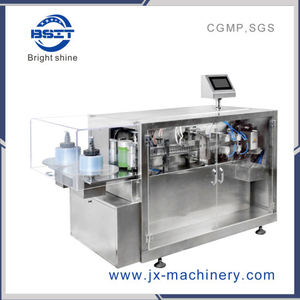

DSM -120 oral liquid Plastic Ampoule Filling Machine
suitable for oral liquid,cosmetic,food,E-cig liquid, Pesticide,pharmaceutical, health care,

working video as following:

https://www.youtube.com/watch?v=pZR7QIZ4aJw

Product Summary:

DSM-120 Micro Liquid Forming Filling & Sealing Machine is applicable for liquid, sticky, semi-sticky and so on. This machine can be used for pharmaceuticals, food, health care products, cosmetic. It also can be used in industry and agriculture in similarity products. This machine can finish forming, filling,sealing once time.

Pesticide 5-30ml Plastic Ampoule Bottle Liquid Forming Filling Sealing Machine

Fuction:

Controlled by PLC, the frequency conversion in finitely variable speeds. All 6 processes from
Spreading roll, Ampoule bottle forming, filling, sealing the end, printing serial numbers, cutting
The end, cutting apart, controlled by programming. The computer human interface has simple
And clear operation. The filling head don't drop. Leak, riding bubbled and spill over.
All are made of high-quality stainless steel, accord with the standard GMP.
Mostly pneumatic components and Wirings adopt inward fittings.
Automatic and mechanical bottling, precise calculation and limited deflection.

Technical Parameter:

Max forming depth	12 mm
Cutting frequency	0-100 time
Packing material	PVC/PE(0.2-0.4)X120mm
Capacity	2-25ml/Ampoule
Power	3.5Kw
Voltage	220/380V/50Hz
Whole machine's weight	300Kg
Outer size L x W x H(mm)	1700x1000x1400(mm)
