ZPT -15
BSIT
Dalian, China
10 Sets/Month
L/C, T/T, Western Union, Paypal, Money Gram

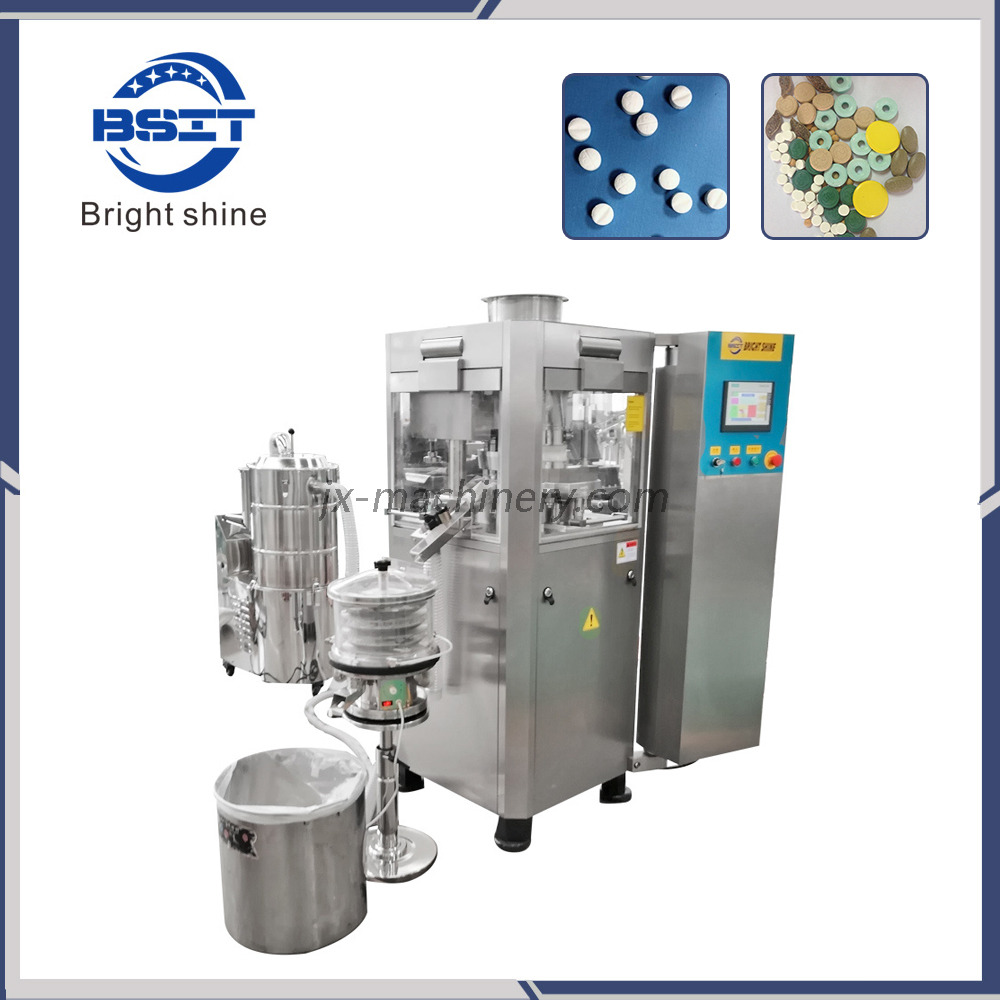

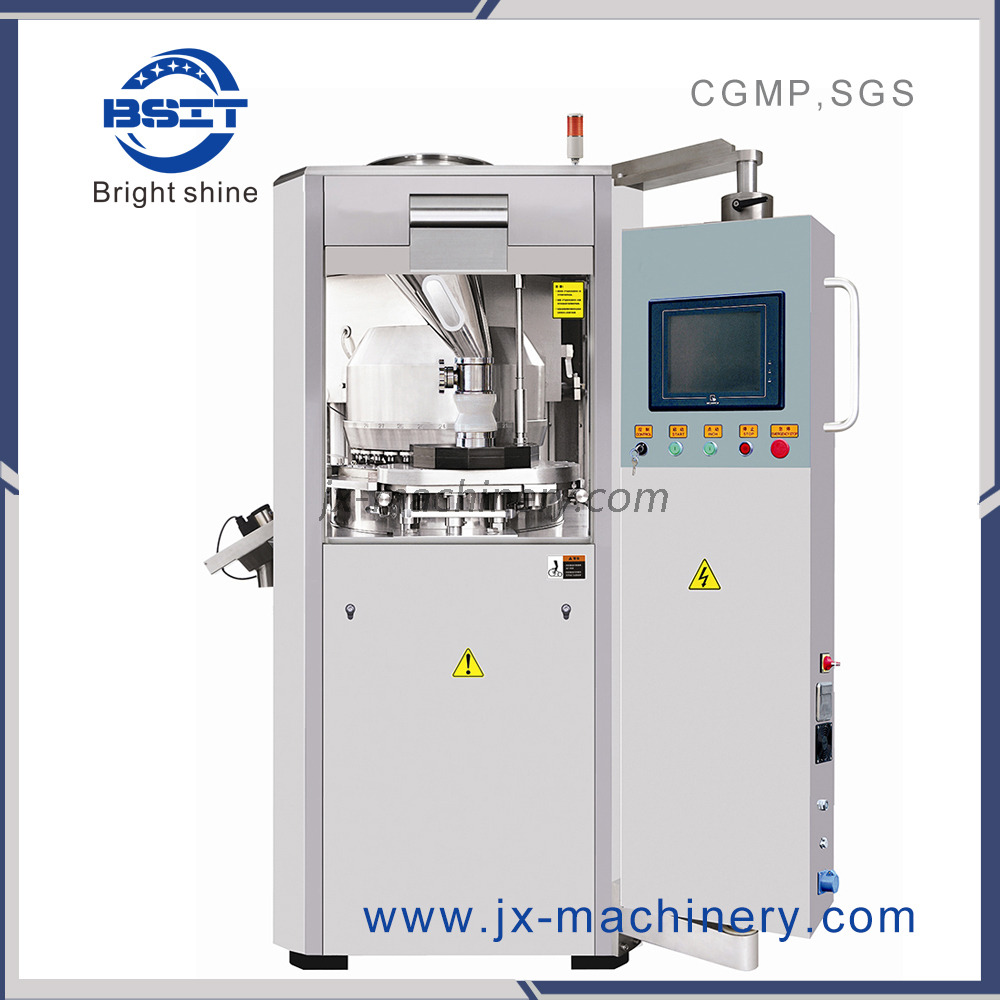

Rotary Tablet Press Machine (ZPT series)
Description:
The contact with product parts adopts stainless steel.
The hole of the punch & die is with special anti-leakage and anti-dust device. Convenience for disassemble structure, make sure the maintenance. Adopt high destination, isolated window design. Adopt reliable safe sealing and dustproof design.
The force feeder system solves the shortage situation of normal tablet pressing machine.
Make the engineer's motive power transmit to enforced transmission shaft directly, and then over the transmission box and feeder impeller, achieving the enforced feeder system and saving the less down material from gravity, too much powder in working tray and inter-pollution of ordinary machine
The powder recovery system solves the cross contamination.
Technical Parameter:
Model | ZPT15 | ZPT17 | ZPT20 | ZPT25 |
Die type | D | B | BB | BBS |
Number of dies | 15 | 17 | 20 | 25 |
Max. diameter of tablet (mm) | 25 | 16 | 13 | 11 |
Max abnormal prolate axis size (mm) | 25 | 18 | 16 | _ |
Max output (tablets/h) | 70000 | 80000 | 95000 | 118000 |
Maximum filling depth (mm) | 20 | 16 | 16 | 16 |
Maximum main pressure (KN) | 100 | 80 | 80 | 80 |
Maximum pre-pressure (KN) | 12 | 12 | 12 | 12 |
Idle load noise dB(A) | 75 | |||
Power of main motor (KW) | 380V 50HZ 5.5KW | |||
Size of machine (mm) | 660× 690× 1620 | |||
Net weight of machine (kg) | 675 | |||

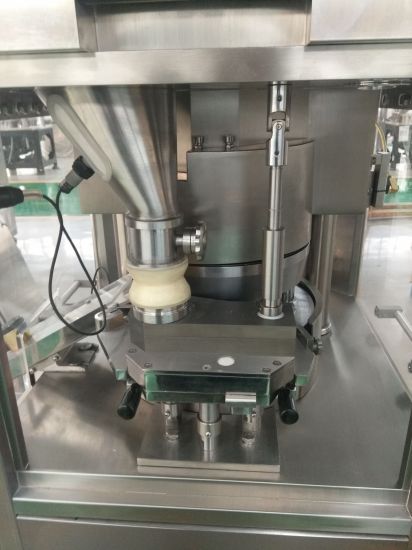

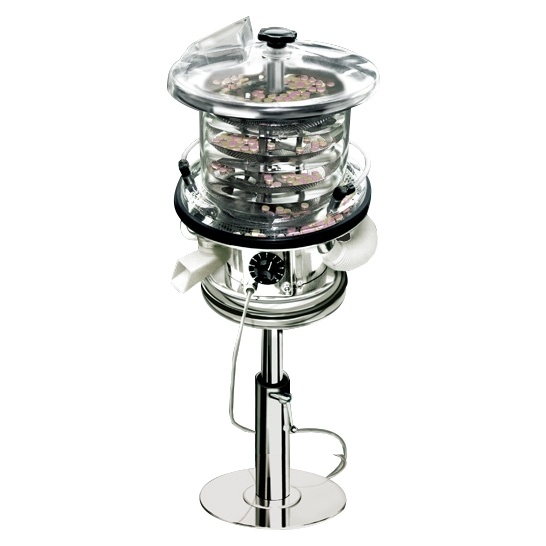

sample：
