Bzs-230
BSIT
8422400000
Shanghai, China
20 Sets/Month
T/T

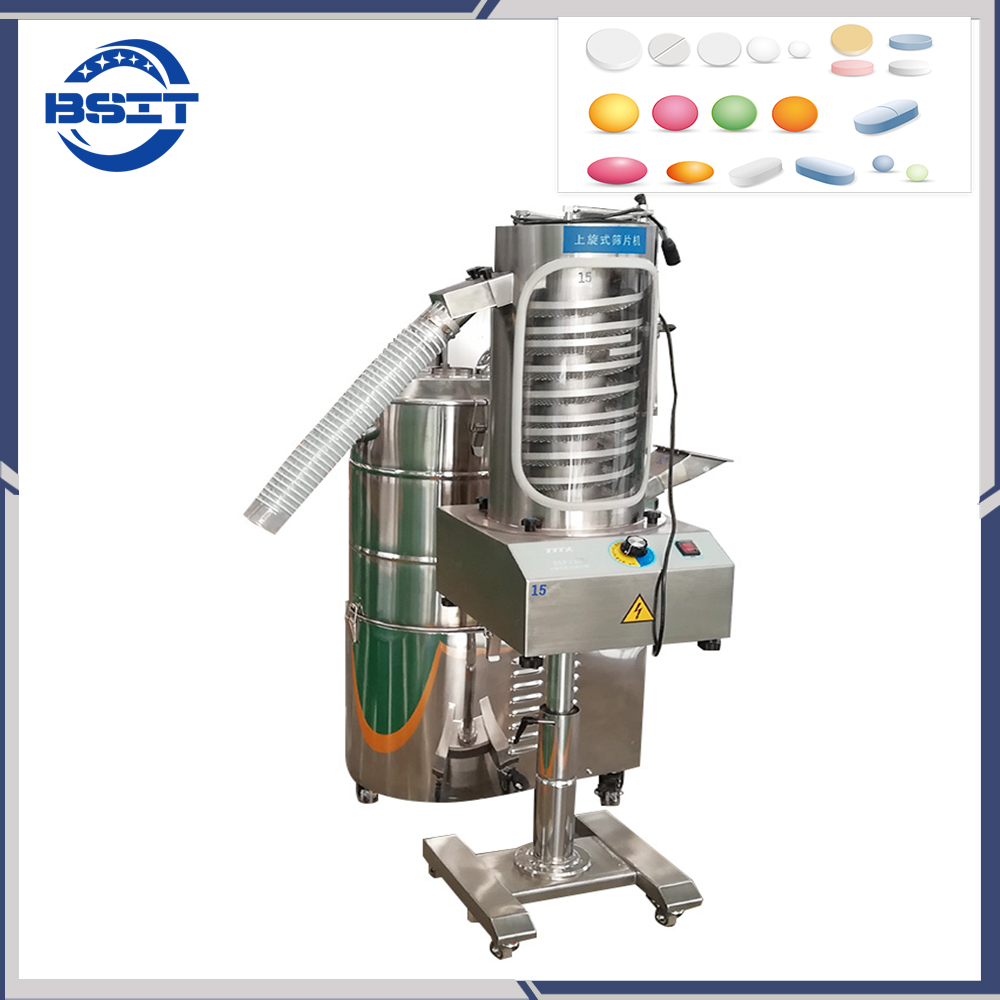

Bzs-230 SUS304 Uphill Deduster Machine/Polisher Machine for Tablet/pill
Description:
1.Uphill Deduster is a special equipment to wipe out burr and dust of tablet whilst going up way.
2.It can be connected with tablet press and metal detection systems.

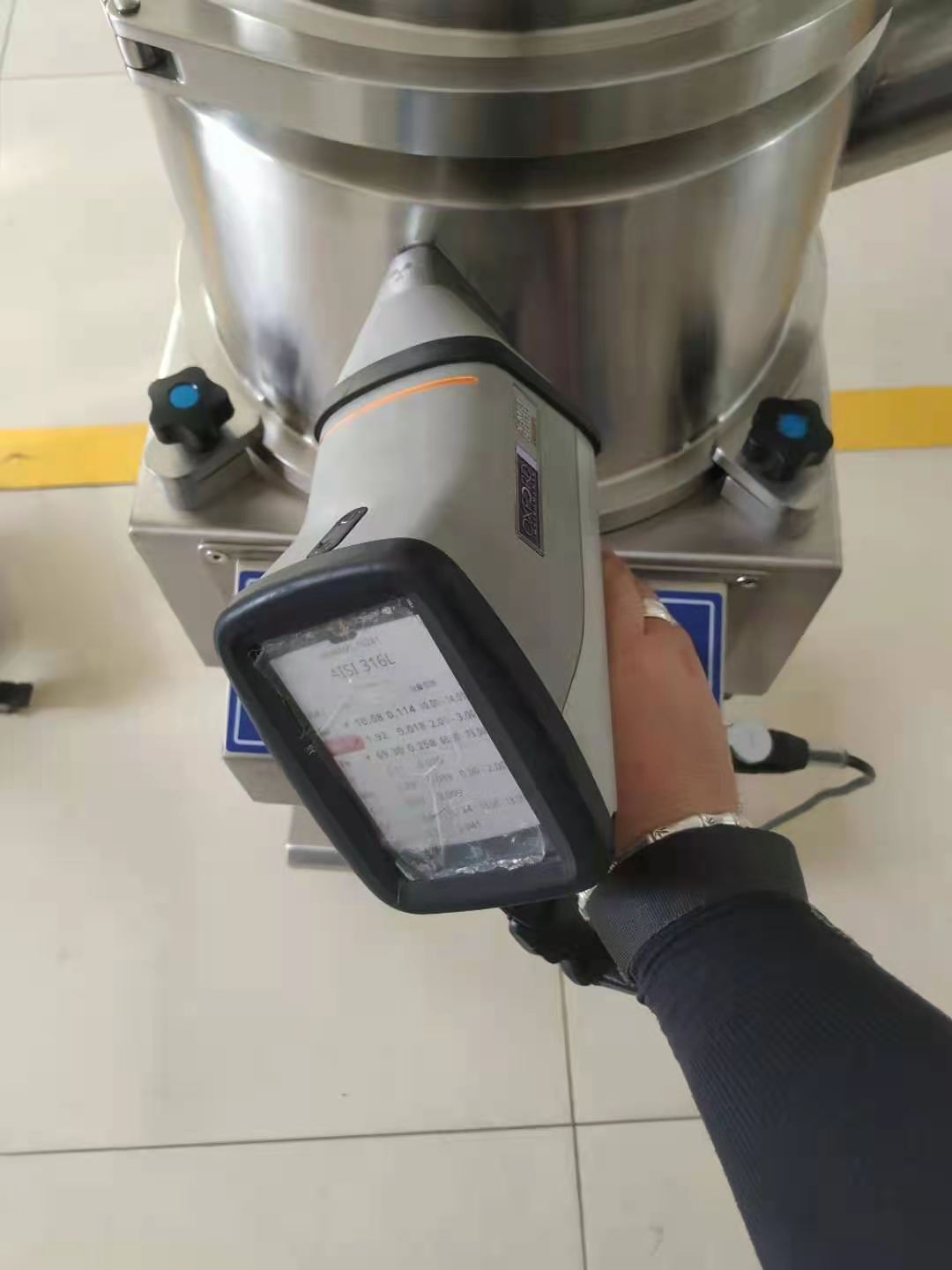

3. 316Lstainless steel are used for all metal parts contacting tablets. Design of GMP.
4. we have uphill deduster machine and downhill deduster machine as optional
5. this machine suitable for deduster/polisher of pharmaceutical or food . main work for tablet press

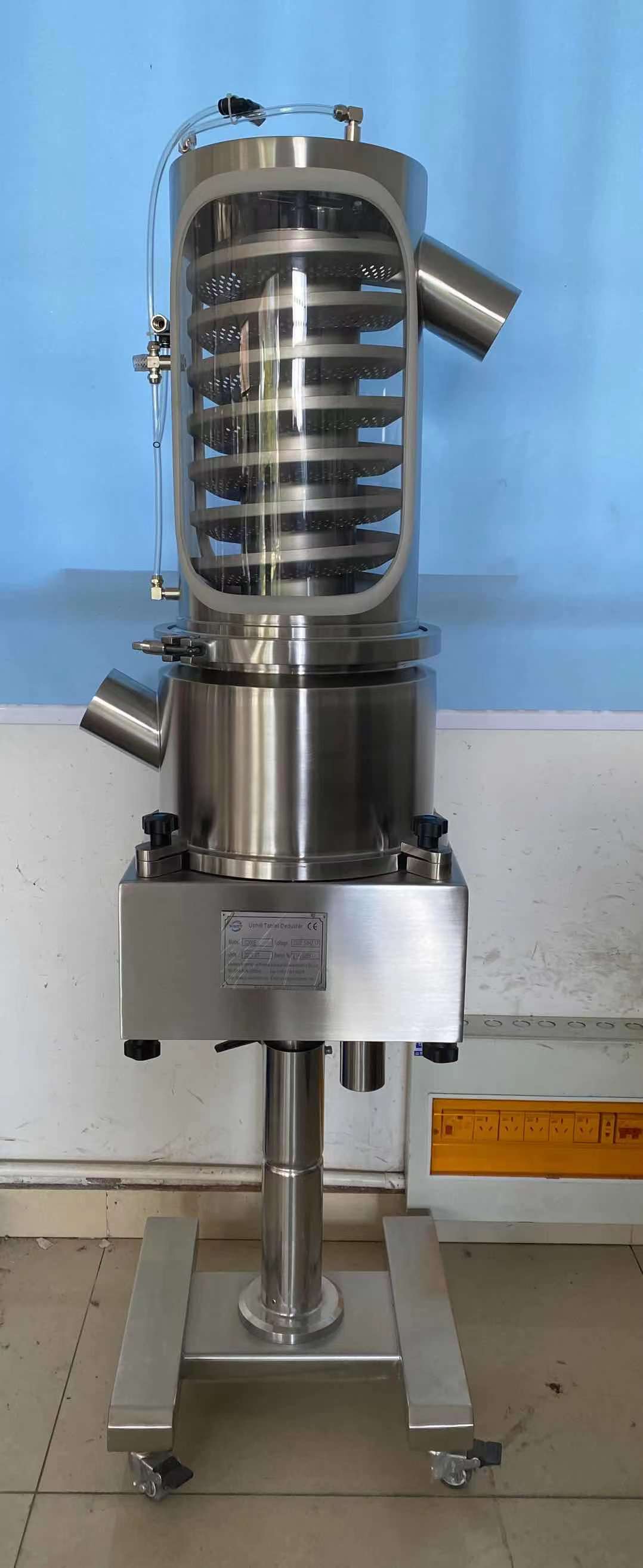

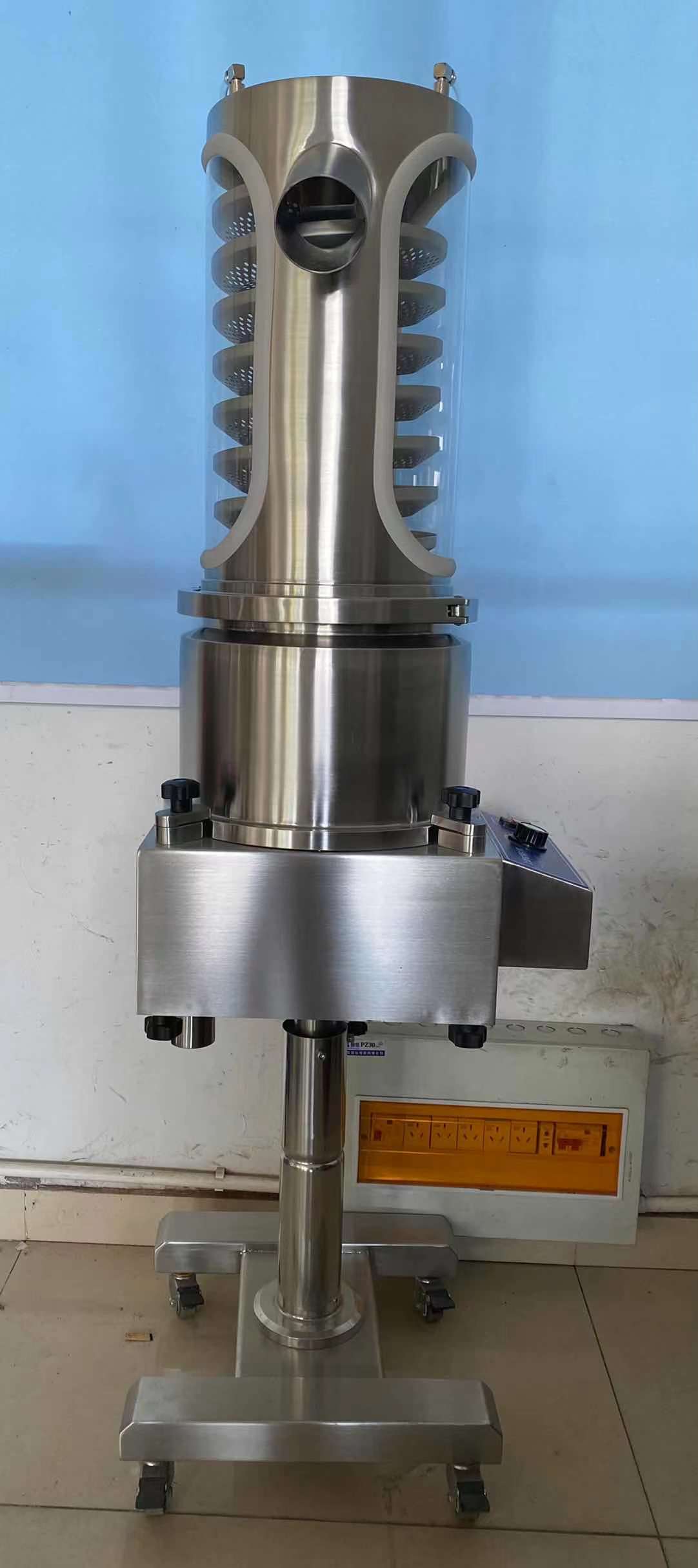

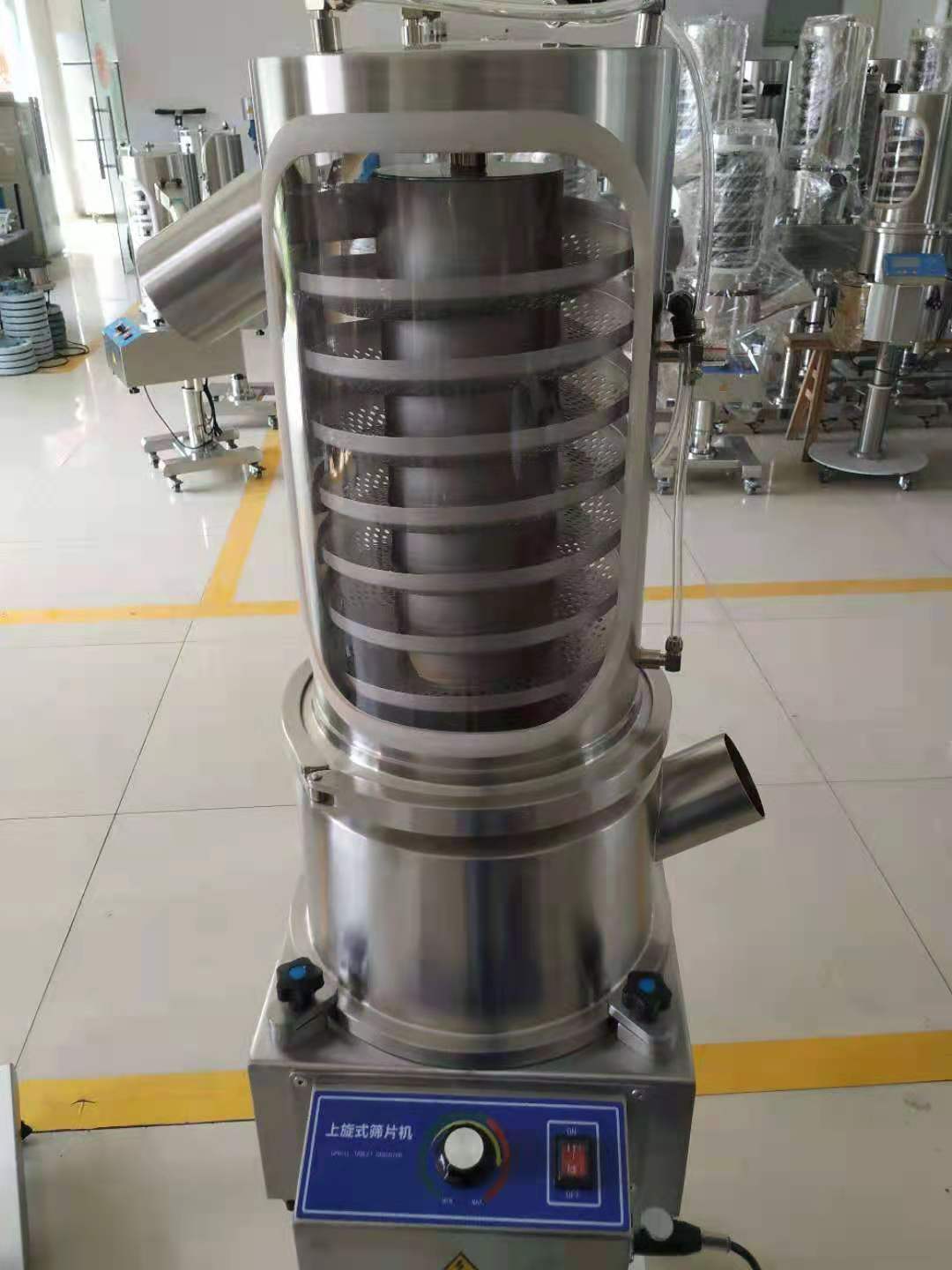

Uphill Deduster Machine
downhill Deduster Machine as optional
Detailed parts :
Drawing:
All kinds of tablet sample
Technical parameter:
Model | BZS-230/200/200F |
Max. Output(tablets/h) | 800000(6mm Tablet) |
Dedust Route(M) | 6 |
Max. Lift highness (mm) | 1220 |
Max. tablet diameter (mm) | 25 |
Power Supply | 110V /220V 50Hz/60 Hz 1P |
Compressed air | 0.1m3/min 0.05MPa |
Vacuum | 2.7 m3/min -0.01pa |
Overall Dimension | 500X550X(H: 1350-1500) |
Weight(kg) | 70 |
Bzs-230 SUS304 Uphill Deduster Machine/Polisher Machine for Tablet/pill
Description:
1.Uphill Deduster is a special equipment to wipe out burr and dust of tablet whilst going up way.
2.It can be connected with tablet press and metal detection systems.
3. 316Lstainless steel are used for all metal parts contacting tablets. Design of GMP.
4. we have uphill deduster machine and downhill deduster machine as optional
5. this machine suitable for deduster/polisher of pharmaceutical or food . main work for tablet press
Uphill Deduster Machine
downhill Deduster Machine as optional
Detailed parts :
Drawing:
All kinds of tablet sample
Technical parameter:
Model | BZS-230/200/200F |
Max. Output(tablets/h) | 800000(6mm Tablet) |
Dedust Route(M) | 6 |
Max. Lift highness (mm) | 1220 |
Max. tablet diameter (mm) | 25 |
Power Supply | 110V /220V 50Hz/60 Hz 1P |
Compressed air | 0.1m3/min 0.05MPa |
Vacuum | 2.7 m3/min -0.01pa |
Overall Dimension | 500X550X(H: 1350-1500) |
Weight(kg) | 70 |
