ZPT8/10
BSIT
8479109000
Dalian, China
10 Sets/Month
L/C, T/T, Western Union, Paypal, Money Gram
1 SET MIN
wooden case packing

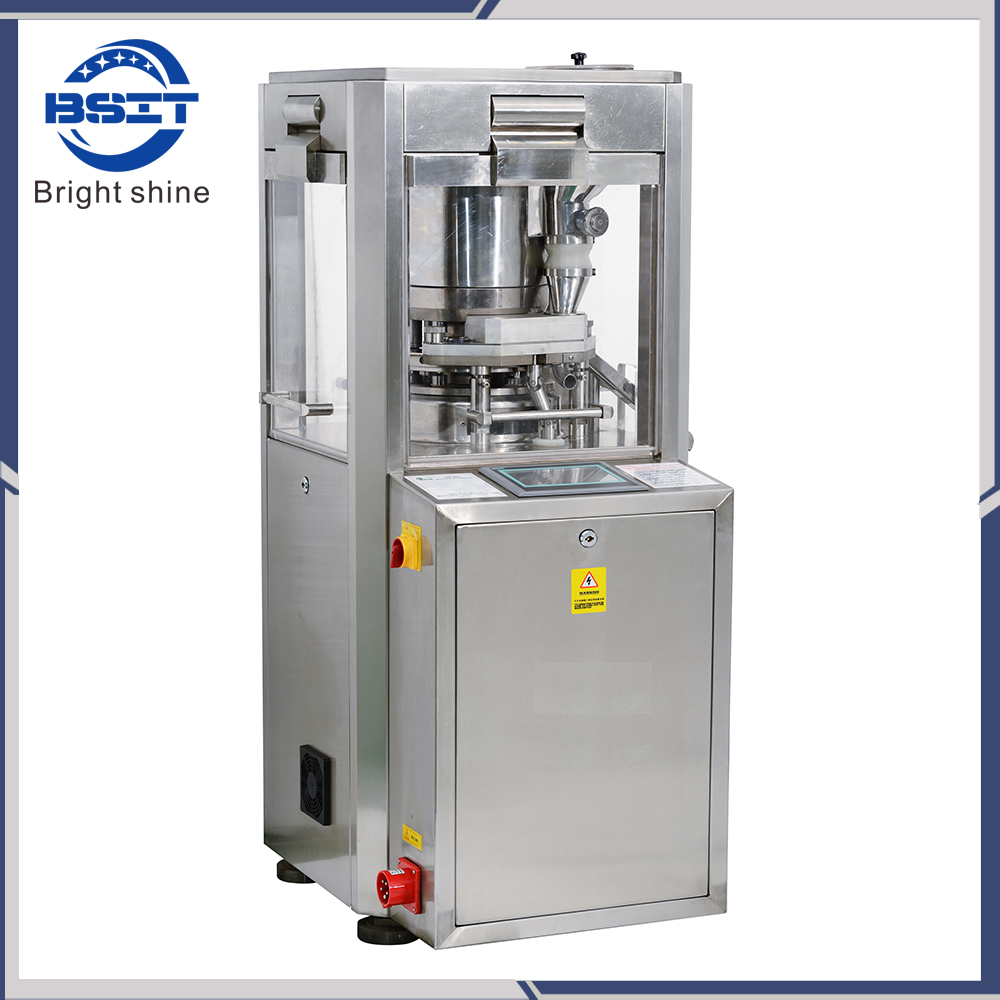

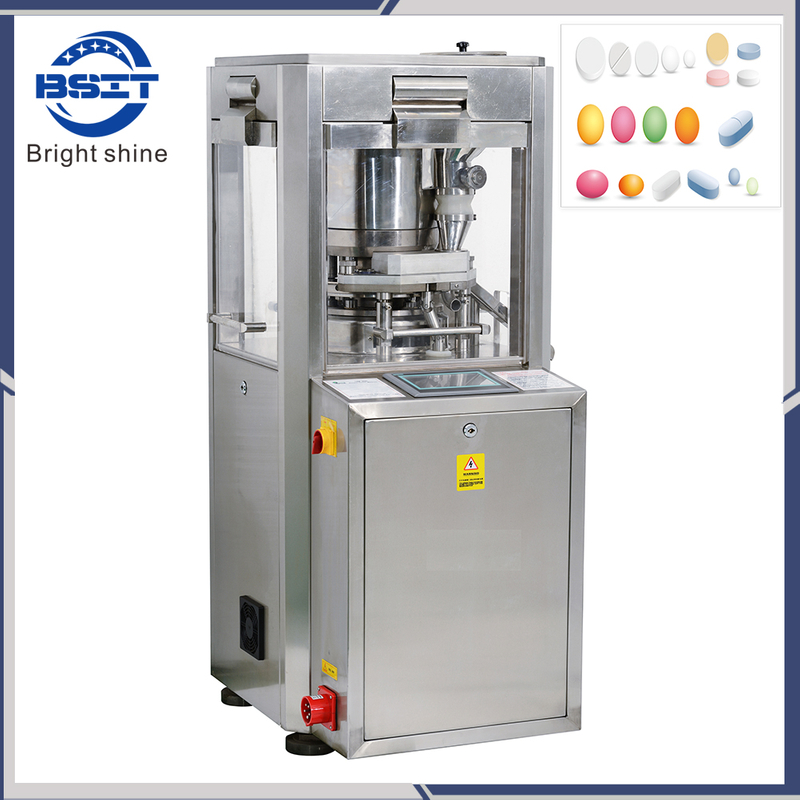

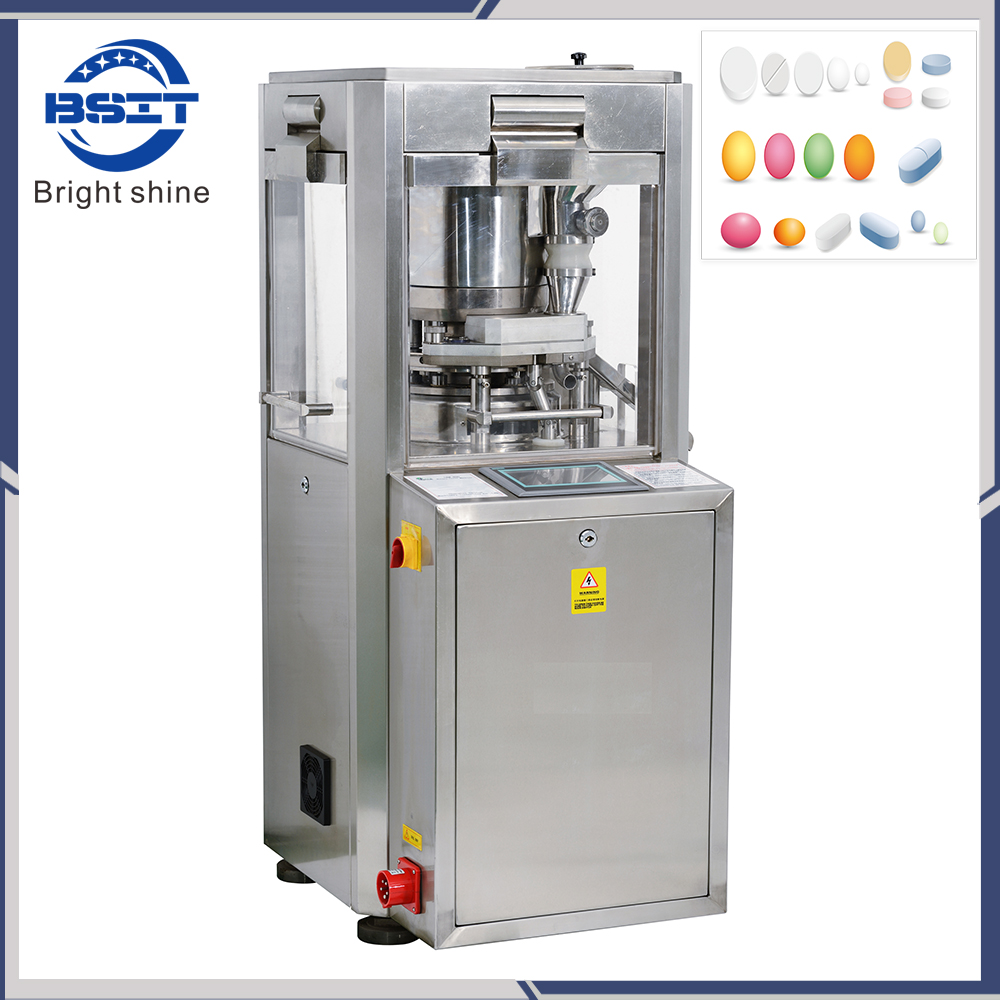

Zpt8、ZPT10 pharmaceutical, chemical, food, electronics pill press Rotary Tablet press Machinery
We give our kind appreciation of that you choose and buy the ZP-10 rotary tablet press machine. To ensure the machine in order, please study the manual before open the package and use the machine. All the action that forbid in manual will influence the operation of the machine and the safety of the workers.
Use and application range：
1.1 The machine is a small type machine that can automatically rotate and continuously press tablet. It is mainly applied to pharmaceutical research department、lab of college 、hospital and it is also used in chemical、 foodstuff 、electron and some other industries to press the grainy material into tablet.
1.2 The unit is suitable for grainy material which contain powder (granularity: 100Mesh) not more than 10%. It’s not applicable for semi-solid, low melting point, easy to be affected with damp and no solid powder pressing.
1.3 The machine can be used to press round, irregular shape and character print tablets of 4-22mm.
Technical data:
Model | ZP10 |
Station | 10 |
Max. main-pressure（KN） | 60 KN |
Max. pre-press pressure（KN） | 10 |
Max. Dia. of tablet（mm） | 22 mm |
Max. thickness of tablet（mm） | 6 mm |
Max. filling depth（mm） | 17 mm |
Turret revolution（r/min） | 10-30 r/min |
Production Capacity（pc/h） | 6000-18000 pc/h |
Turret operating diameter（mm） | 200 mm |
Dia.die（mm） | 38.1 mm |
Height. die（mm） | 23.8 mm |
Dia. Of jumper bar（mm） | 25.35 mm |
Length of jumper bar（mm） | 133.35 mm |
Upper punch penetration （mm） | 2.5-6 |
Main motor power（kw） | 2.2 kw |
Outline dimension（Length×width×height）（mm） | 580×660×1540 mm |
Net weight（kg） | 780 kg |

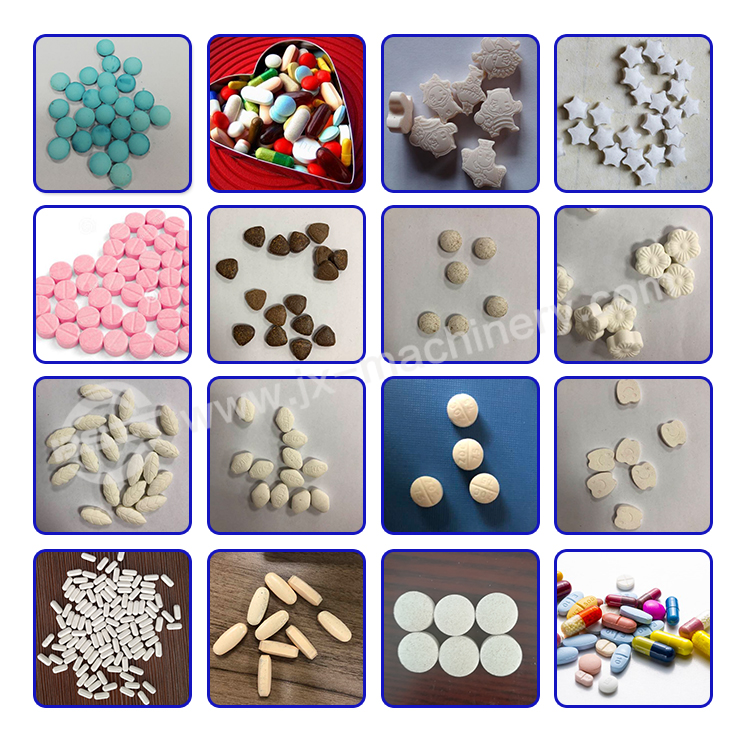

tablet sample:
