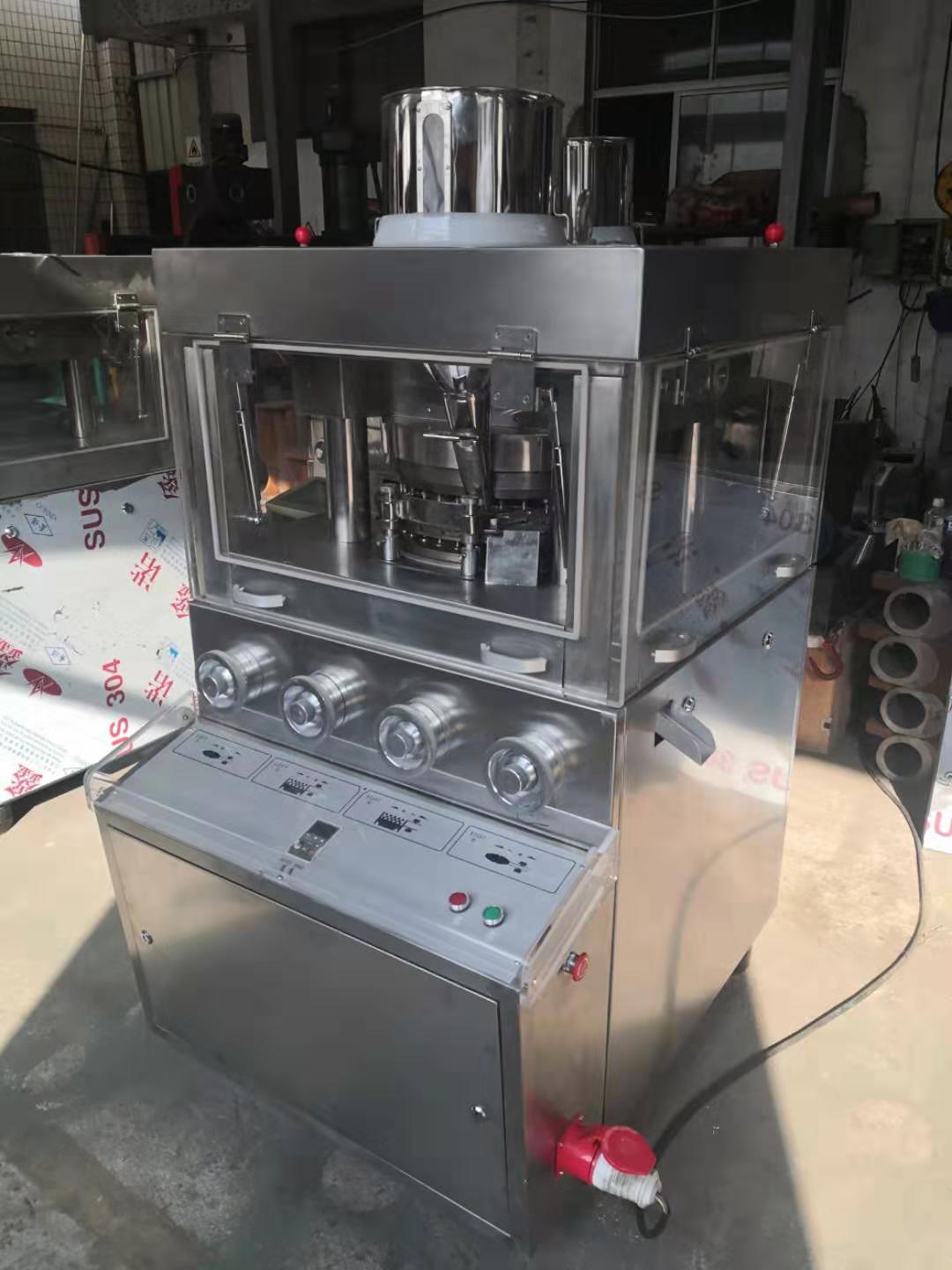

Zp35B/D High Quality Rotary Tablet Press with Ce Certificate
Introduction:
ZP-35B/D Rotary Tablet Press Machine with dual feed double the piece, continuous piece, making the disk rotation twice a week to complete filling, quantitative, pre-press, the film process. The external machine is fully enclosed, of stainless steel, the internal table with stainless steel turret face is specially disposed keeping the luster and prevent cross-contamination, in line with GMP requirements.
Fitted with transparent glass doors, can be clearly observed for tablets press, and also can be fully open, easy-to-house cleaning and maintenance. All controllers and operating parts are reasonable layout, the use of frequency control devices operating speed so that is easy operation, smooth rotation, accurate and secure. The machine is equipped with overload protection devices and other safety devices to ensure safe and stable operation.
Technical Parameters:
| Model | ZP-35D |
| Punch Quantity | 35 sets |
| Production Capacity | 150000pc/h |
| Max. Pressure | 60kn |
| Max. Tablet Diameter | 13mm |
| Filling Depth | 15mm |
| Max. Tablet Thickness | 6mm |
| Rotating Speed | 14-36r/min |
| Dimension | 1300*900*1700 mm |
| Weight | 2100kg |
