ZPT-15
Dalian, China
10 Sets/Month
L/C, T/T, D/P, Western Union, Paypal, Money Gram

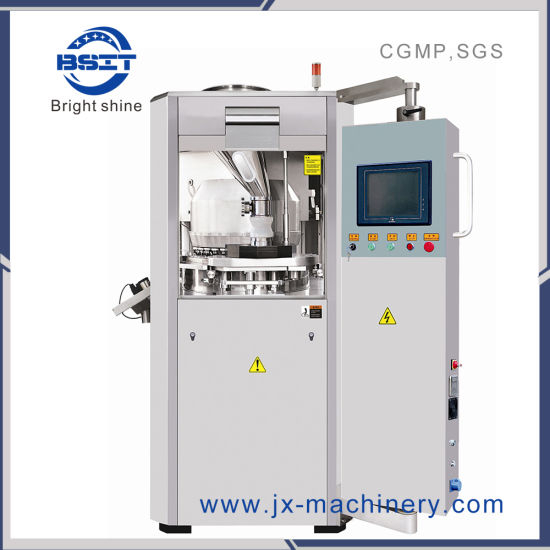

Hot sale Rotary Tablet Press Machine (ZPT-15)
Hot sale our ZPT tablet press advantage:
1.The contact with product adopt stainless steel. meet with GMP certificate. It has CE certicate
2.The hole of the punch&die is with special anti-leakage and anti-dust device. Convience for disassemble structure, make sure the maintenance. Adopt high desinition, isolated window design.Adopt reliable safe sealing and dustproof design.
3.The force feeder system solves the shortage situation of normal tablet pressing machine.
Make the engineer's motive power transmit to enforced transimission shafte directly, and then over the transmission box and feeder impeller, achieing the forced feeder system and saving the less down material from gravity, too much powder in working tray and inter-pollution of ordinary machine
4. 1 year for Guarantee. supply free spare pare within 1 year
5. this machien working video https://youtu.be/M-oPHrywYrk
Tablet sample:
Technical Parameter:
| Model | ZPT15 | ZPT17 | ZPT20 | ZPT25 |
| Die type | D | B | BB | BBS |
| Number of dies | 15 | 17 | 20 | 25 |
| Max. diameter of tablet (mm) | 25 | 16 | 13 | 11 |
| Max abnormal Prolate axis size (mm) | 25 | 18 | 16 | _ |
| Maxoutput (tablets/h) | 70000 | 80000 | 95000 | 118000 |
| Maximum filling depth (mm) | 20 | 16 | 16 | 16 |
| Maximum main pressure (KN) | 100 | 80 | 80 | 80 |
| Maximum pre-pressure (KN) | 12 | 12 | 12 | 12 |
| Idle load noise dB(A) | < 75 | |||
| Power of main motor (KW) | 380V 50HZ 5.5KW | |||
| Size of machine (mm) | 660× 690× 1620 | |||
| Net weight of machine (kg) | 675 | |||
