Square Vacuum Drying Machine

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • FZG-15
  • Air Flow Drier
  • Vacuum Dryer
  • Bulk
  • Contra-Flow
  • Rotary Atomization
  • Air-Flowing Type
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 8422400000
  • Combined
  • Convective
  • Air
  • Continuous
  • 32 Pieces
  • 120mm

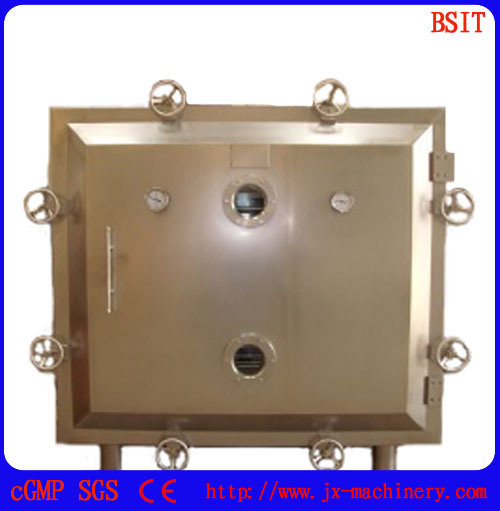

Square Vacuum Drying Machine

Main technical data:


FZG-15 Model: FZG-15 No-standard model 1600× 1600× 1750 mm (× × )
Exteriro size of chamber: 1600× 1600× 1750 mm (LXWXH)
Interiorsize of chamber: 1220× 1380× 1230 mm (LXWXH)
Temperature range: 50-120 degree
Steam pressure: 0.2-0.6 MPa
Baking tray: 32 pieces(640× 460× 45mm)
Distance of baking shelf: 120mm
Layers for baking shelf: 8 layers
Heating model: Steam heating
Equipment appendix (316L)Stainless steel baking Tray(316L) 32 pieces
Move steam baking Tray holder 1 piece
Vacuum Gauge 1 piece
Dobule metal thermometer 1 piece

Features:

1: 6mm304-2B, 1.5mm304-2B, , , -0.098MPa, .
Inside of chamber materical use SS304-2B (6mm), outside packing adopt by 304-2B(1.5mm) stainless steel made. Inside of welding polisher treatment. Outside is brush treatment in order to confirm vacuum degree is -0.098Mpa. Also has certificate of material.
2: Each design Dryer before and back sight glass in order to check inside of materical changed.
3: Dryer heating baking tray holder is for movable model can discharge quick in order to clean inside of remains product.
4: 120mm. Heating baking tray holder total 8 layers, distance of baking shelf for 120mm.
5: Body of door pivot adopt by flat bearing in order to no plane wear open or close door.
6: Body of inside 4 angle all made of slippy R, up part is arch model no burnisher and no roughness.
7: Dryer has movable baking tray holder, SS baking tray, Vavuum Gauge, Exhaust valve.
8: ≤ 120 degree. Dryer used temperature is≤ 120 degree
9: Dryer is chinese-english (manual user's) a copy, certificat of quality a copy, packing list a copy.
10: Equipment had English brand
12: Dryer no with any electric equipment or link attachment device.
13: DN15. Dryer inlet and outlet for flange DN15.
14: Dryer used by wooden case packing

Square Vacuum Drying Machine
Square Vacuum Drying Machine
Square Vacuum Drying Machine

No
Name model and specification
quantity

supplier
1
Outside of dryer materical

304-2B stainless steel 1.5mm
8
CHINA wuxi
2
Inside of dryer materical

304-2B stainless steel 6.0mm
2 CHINA wuxi
3
Door board

304-2B stainless steel 1.5mm
1 china wuxi
4
316L SS baking tray
460*640*45mm 32 pcs press tray
5 Strengthen plate Q235
10mm
N
China nanjing
6 Strengthen Channel steel
8# channel steel
17
China nanjin
g
7
Door hinge

304-2B SS
2 self-made
8 Door press
304-2B SS
4 self-made
9 door sealing mushroom model silicon rubber 1
China changzhou
10 Vacuum interface
304-2B SS (DN50)
self-made
11 Vacuum gauge -0.01~-0.1MPa 1
China shanghai
12 sight glass dia: 150×15mm 4
China nanjing
13 dobule metal thermometer WSS-150 1
China shanghai


Square Vacuum Drying Machine
Square Vacuum Drying Machine
Square Vacuum Drying Machine
Square Vacuum Drying Machine
Square Vacuum Drying Machine
Square Vacuum Drying Machine
Square Vacuum Drying Machine
