Single Chamber Tea Bags Envelope Packing Machine with Heat Sealing Ouer Bag /Tea Bag Making Machine Dxdc8IV



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
DXDC8IV
Material Type:
Green Tea/Black Tea
Packaging:
Bag
Packaging Material:
Filter Paper/PE/Paper, Plastic/Foil/P.E
Name:
Dxdc8I High Speed Tea Bag Packing Machine
Keywords:
Tea Bag Packing Machine
Product:
Black Tea or Green Tea or Hearb Granulte
Tea Bag Type:
Single Chamber Tea Bag
Tea Bag Mateiral:
Filter Paper
Capacity:
105+-5bags/Minute
Max.Filing Volume:
6cm3
Bag Dimensions:
62.5mm X 50mm
Envelope Dimensions:
80mm X 70mm
Tag Dimensions:
28mm X 24mm
Thread Length:
210mm
Net Weight:
1210kg
Trademark:
BSIT
Transport Package:
Wooden Case
Specification:
MeetChina Tea Packing Machine Standard
Origin:
Made in China
HS Code:
8422400000
Automatic Grade:
Automatic
Application:
Tea
Type:
Tea Bag Packaging Machine
Forming Species:
Bag Forming Filling Sealing Machine
Forming Function:
Forming, Filling, Seal
Driven Type:
Mechanical

Product Description

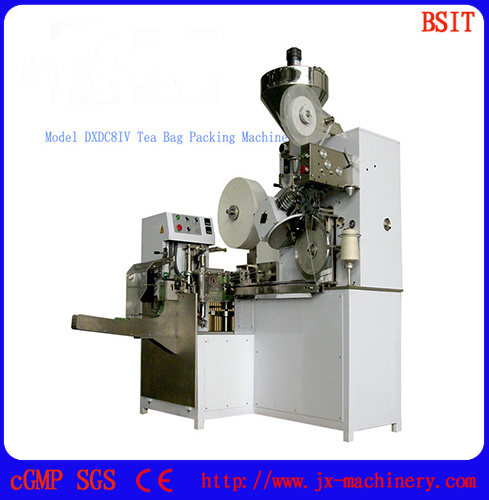

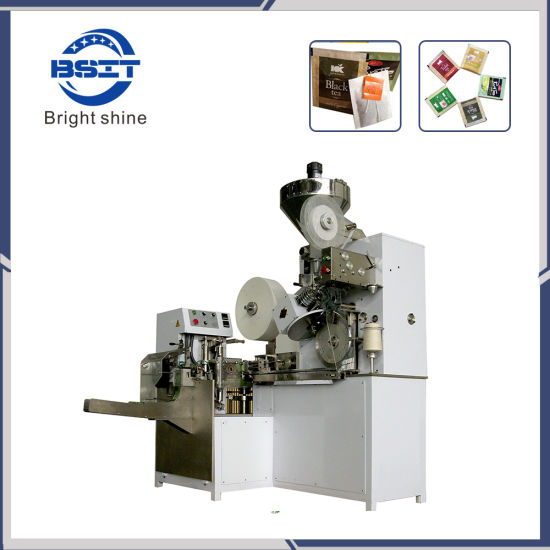

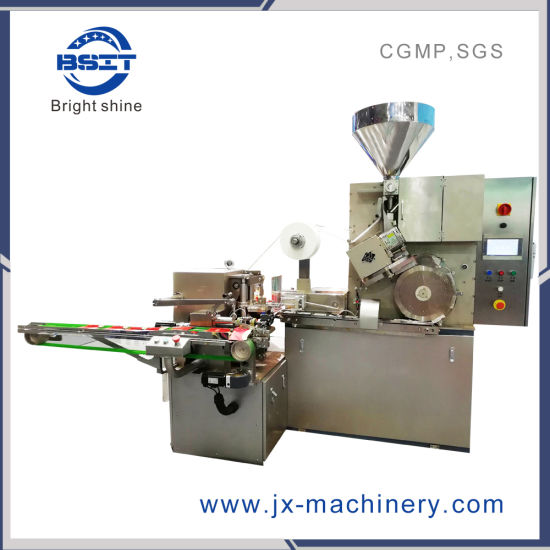

Single chamber tea bags envelope packing machine with heat sealing ouer bag /tea bag making machine DXDC8IV

1. Why choose our machine?

1. Single chamber Tea bag packing machine Model DXDC8IV for CTC black tea or green tea or hearb granulte
2. Tea bag packing machine Model DXDC8IV offer filling, heat sealing, threading, labeling and over-wrapping functions.

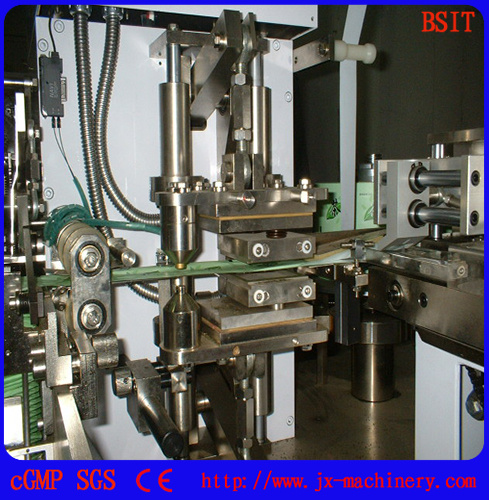

3. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine's flexibility and enables use of different packaging materials.
4.It can pack 20 meshes to 100 meshes or bulk non-viscidity granular materials, such as CTC black tea, green broken tea, herbals into the bag.Main materials include paper/PE, plastic/foil/PE and plastic/PE.

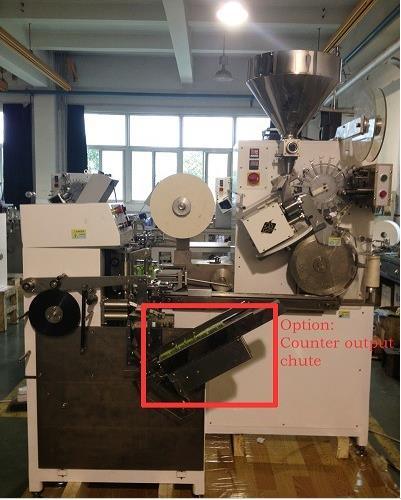

2. Options:

Heat sealable tag system
Date printing device
Semi carton device
Pneumatic vacuum feeder
Modification cutter tool

3. Packing materials

Heat sealing Filter paper: single side heat-sealing ,16.5~20g/m2and 125mm width.
Various heat sealable laminated materials : Plastic/foil/P.E, Paper/P.E,Paper/foil/P.E,Plastic/P.E
Cotton thread: The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.
Tag paper:The tag paper should be bleached paper for food industry specially, 70 g/m²
The adhesive used on this machine is polyvinyl acetate emulsion. Its Brookfield viscosity should be 1600~2800 CP at 25ºC with adhesive

DXDC8IV tea bag packaging machine working video please check https://youtu.be/qUNaYOKbxEw

Single Chamber Tea Bags Envelope Packing Machine with Heat Sealing Ouer Bag /Tea Bag Making Machine Dxdc8IV

Technical Parameter :

Capacity	105±5bags/minute
Max.Filing Volume	6cm3
Bag dimensions	62.5mm x 50mm
Envelope dimensions	80mm x 70mm
Tag dimensions	28mm x 24mm
Thread length	210mm
Power supply	AC 380V / 220V
Total power	2.5KW
Net Weight	1210kg
Gross weight	1410kg
Overall dimensions	1688mmx 1330mm x 2205mm
Carton dimensions	1840mm x 1290mm x 1890mm

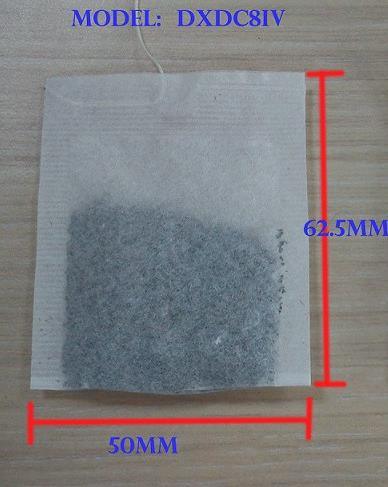

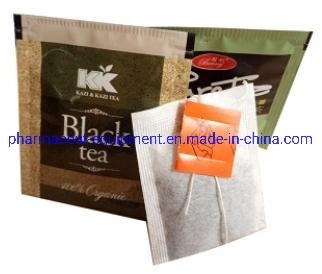

Tea bag inside bag Sample:

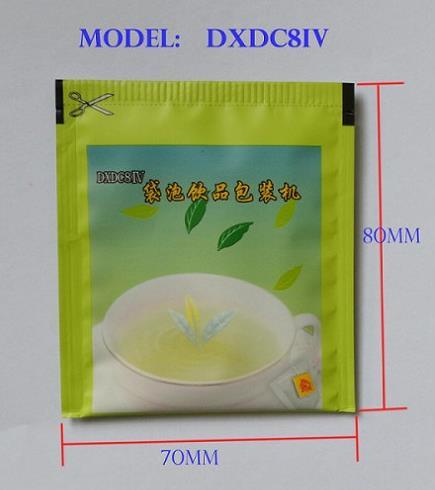

Outer bag size drawing:

Packing materical drawing size:
