TMB-700
BSIT
8422303090
Shanghai, China
50sets/Year
T/T, Western Union, Paypal, Money Gram

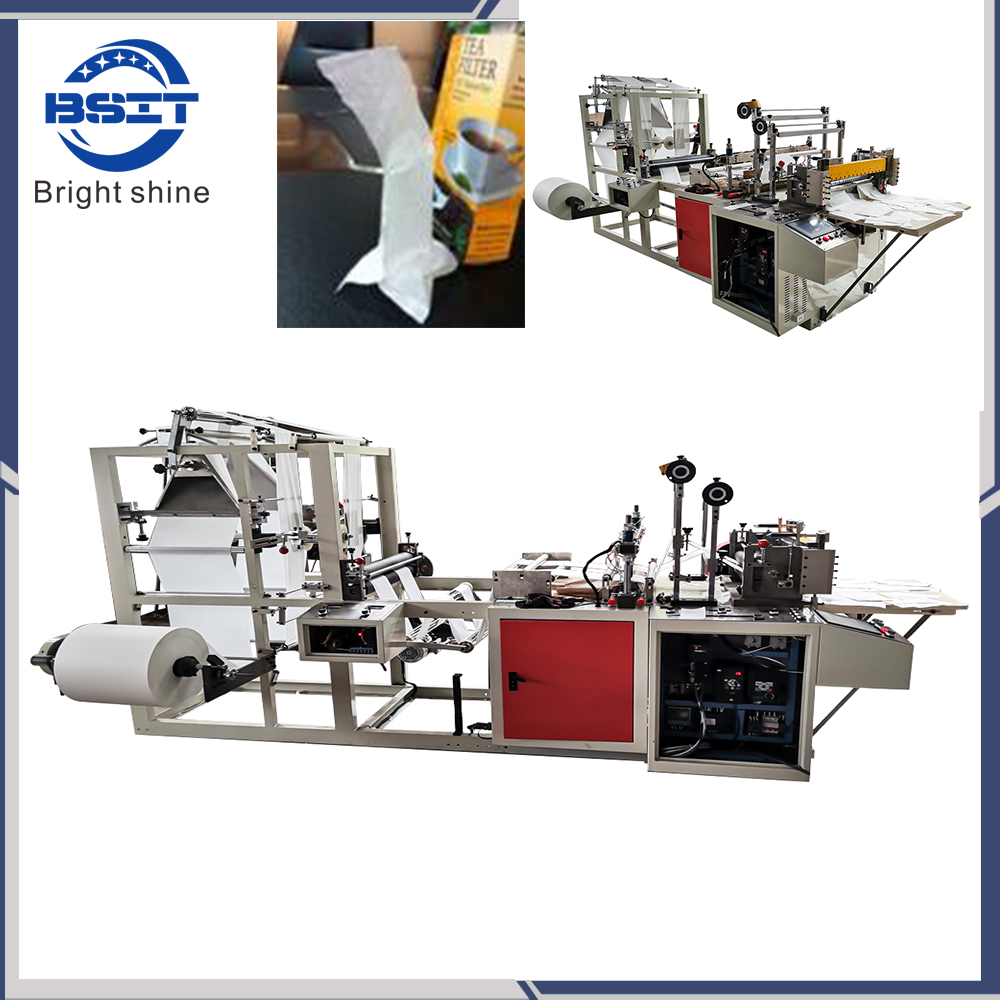

Tmb-700 High Speed Filter Paper Bag Packing Envelope former Making Machine with 1 Set Cutter Knife
Main feature:
1. New design Single channels or double channels for manufacture
2. PLC touch screen easy to operate
3. Servo motor driving in order to get high precision
4. 1 Set machine can make more bag size by changed difference mould
5. Speed can adjust freely from 100-200ps/min
6. Filter bag mould according to customer sample to make it
7. click here for working video https://youtu.be/LP6-aZ05VoU

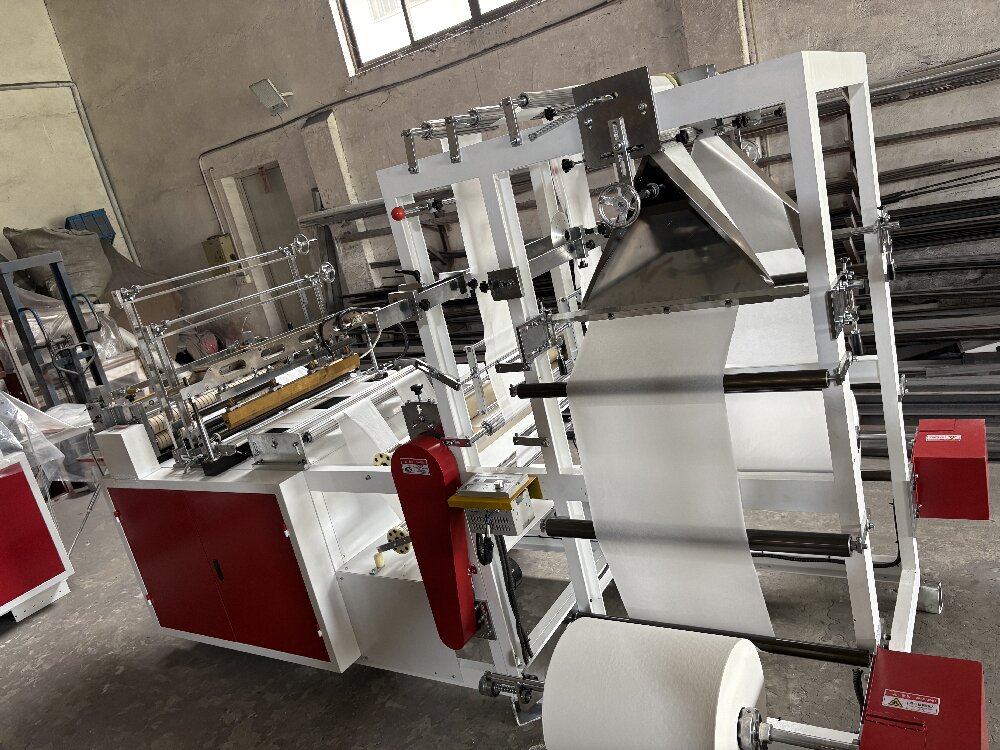

filter paper forming parts
Customer used our machine factory
customer make FAT testing
make good wooden case packing process
finished filter bag
Configuration
1)Fixed length system of the machine adopts servo control, PLC control system, 7 inch touch screen operation system.
2)Main motor adopts frequency control
3)Feeding motor is 300W continuous current dynamo, and adopts swing-rod type control
4)Feeding tension adopts magnetic powder brake control, and adopts automatical deviation rectification control.
5)Hot knife is made of DL-HJT Copper alloy, temperature control adopts YATAI Temperature-controlled meter (China ), output part adopts solid state relay.
6)Cutter adopts Jialong bag cut knife, knife back and blade was made by 45#forged steel
7)Sliding part of cutter adopts linear guides
8)Plugged chassis adopts aluminum material
9)Whole mechanism is spray and stainless steel
filter bag drawing size as following :
Main Technical Parameter
| 1 | Supply power: | 380V/220V50Hz, three-phase four-wire system |
| 2 | Total power: | 2.5Kw |
| 3 | Max. Diameter for filter paper roll | 650mm |
| 4 | Length for bag-making: | 40-485mm |
| 5 | Width for bag-marking: | 40-800mm |
| 6 | Speed for bag-making: | 30-150PCS/min |
